10Gb/s 40km CWDM 1270～1610nm SFP+ Transceiver Duplex LC DFB Single mode
Product Details:
| Place of Origin: | China |
| Brand Name: | NuFiber |
| Certification: | CE FCC Rohs |
| Model Number: | SFP-10G-CW40-XX |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece |
|---|---|
| Packaging Details: | 10pcs/plastic bag, 500pcs/carton |
| Delivery Time: | Within 1-3 work days |
| Payment Terms: | L/C, T/T, Western Union,Credit Card |
| Supply Ability: | 100,000 pcs per month |
|
Detail Information |
|||
| Data Rate: | 10Gb/s | Wavelength: | 1270~1610nm |
|---|---|---|---|
| Distance: | 40KM | Connector: | LC |
| Packaging: | CWDM SFP | Fiber Type: | Duplex LC SM |
| Power Supply: | 3.3V | Working Temperature: | 0-70℃ |
| Manufacturer: | Yes | Compatible: | Cisco Huawei HP Juniper Etc... |
| Warranty: | 3 Years | ||
Product Description
10Gb/s 40km CWDM SFP+ Transceiver
Hot Pluggable, Duplex LC, +3.3V, 1270～1610nm, CWDM DFB, Single mode
Features
-
Features:
- Supports 9.95 to 11.3Gb/s bit rates
- Hot-Pluggable
- Duplex LC connector
- 1270～1610nm CWDM DFB transmitter, PIN photo-detector
- SMF links up to 40km
- 2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface
- Power Supply :+3.3V
- Power consumption<1.5W
- Temperature Range: 0~ 70°C
- RoHS compliant
Applications
² 10GBASE-ER/EW Ethernet
² Sonet OC-192/SDH
² 10G Fibre Channel 1200-SM-LL-L

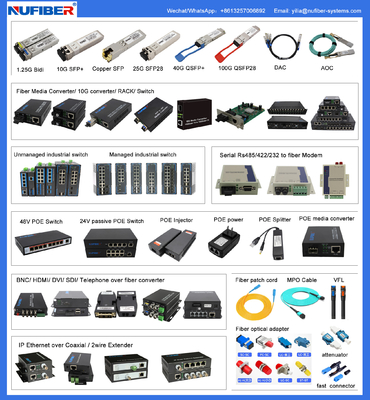

Products Show
Packing:
Ordering List:
|
型号 P/N |
速率 Data rate |
封装形式 Form |
波长 Wavelength |
距离 Distance |
传输介质 Media |
接口 Interface |
| SFP-10G-SR | 10Gb/s | SFP+ | 850nm | 300m | MMF | Dual LC |
| SFP-10G-LR | 10Gb/s | SFP+ | 1310nm | 10~20km | SMF | Dual LC |
| SFP-10G-ERM | 10Gb/s | SFP+ | 1310nm | 40km | SMF | Dual LC |
| SFP-10G-ER | 10Gb/s | SFP+ | 1550nm | 40km | SMF | Dual LC |
| SFP-10G-ZR | 10Gb/s | SFP+ | 1550nm | 80KM | SMF | Dual LC |
| SFP-10G-BX20 | 10Gb/s | Bidi SFP+ | 1270/1330nm | 10~20KM | SMF | Single LC |
| SFP-10G-BX40 | 10Gb/s | Bidi SFP+ | 1270/1330nm | 40KM | SMF | Single LC |
| SFP-10G-BX80 | 10Gb/s | Bidi SFP+ | 1490/1550nm | 80KM | SMF | Single LC |
| SFP-10G-CW10-xx | 10Gb/s | CWDM SFP+ | 1270~1610nm | 10KM | SMF | Dual LC |
| SFP-10G-CW40-xx | 10Gb/s | CWDM SFP+ | 1270~1610nm | 40KM | SMF | Dual LC |
| SFP-10G-CW80-xx | 10Gb/s | CWDM SFP+ | 1470~1610nm | 80KM | SMF | Dual LC |
| SFP-10G-DW40-xx | 10Gb/s | DWDM SFP+ | DWDM C-Band 100GHz | 40KM | SMF | Dual LC |
| SFP-10G-DW80-xx | 10Gb/s | DWDM SFP+ | DWDM C-Band 100GHz | 80KM | SMF | Dual LC |
