| MOQ: | 1 piece |
| Standard Packaging: | Carton Packaging, the products are packed in international standard. Each carton is lined with a polythene sheet, thus preventng the contents from dampness |
| Delivery Period: | within 1-3 working days after payment |
| Payment Method: | T/T, Western Union, Credit card |
| Supply Capacity: | 10000 pair per month |

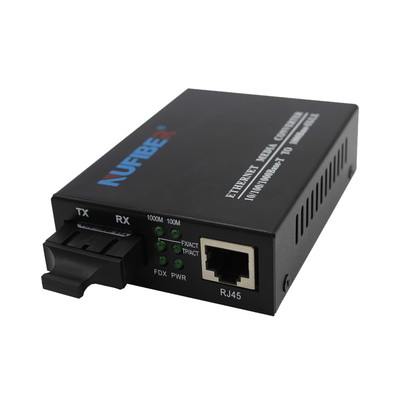

10/100/1000Mbps Fiber Media Converter 10/100/1000Base-TX to 1000Base-FX Single-Mode Dual Fiber SC 20m NF-C2200LX20
Overview
The NF-C2200LX20 Series Gigabit Ethernet Media Converters with external power supply are designed to transmit and receive 10/100/1000Mbps data over optical fiber. The electrical interface will Auto-Negotiate to a 100 Mbps or 1000Mbps Ethernet rate without any adjustments. The optical interface operates at a 1000 Mbps Ethernet rate. Both are environmentally hardened to operate in extreme temperatures. LED indicators are provided for confirming equipment operating status.
Key Features
Applications
1. Access Control Systems
2. Building and Environmental Control Systems
3.Tamper Switch
4. 10/100/1000 Mbps Ethernet Media Converter
5. High Speed Computer Links
Technical Parameter
| Parameters | Specifications |
| Standards | IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3ab 1000Base-TX/FX |
| Optic Wavelength |
NF-C2200SX: 850nm NF-C2200LX20: 1310nm NF-C2200-SFP: N/A NF-C2200LX20A:TX:1310nm/RX:1550nm NF-C2200LX20B:TX:1550nm/RX:1310nm |
| Transmission Distance |
Multimode: 2km Single mode:10km~120km |
| Port |
Optical: 2 Fibers (SC/ST/FC Optional) Power: Terminal Block Electrical: RJ45 |
| Led Indicators |
Optical Link/Data Activity Electrical Link/Data Activity |
| MDI/MDI-X | Auto selection |
| Mac address table | 4K |
| Memory buffer | 256K |
|
Data
|
Data Interface: Ethernet Data Rate:10/100/1000 Mbps |
| Power Supply |
External : 5V DC 2A Power Consumption : ≤5W |
| Operating Temperature | 0 °C to +70 °C |
| Storage Temperature | -20 °C to +80 °C |
| Relative Humidity |
5% to 90% (non-condensing) MTBF: >100,000 hours |
| Dimensions | 95mm * 70 mm * 25mm |
| Net Weight | 0.165 kg |
| Emissions | FCC , Class A, RoHS, CE Mark |
Connection Diagram
Products show
Packaging and shipping
|
|
