| MOQ: | 1 piece |
| Standard Packaging: | Carton packaging, the products are packed in international standard. Each carton is lined with apolythene sheet, thus preventing the contents from dampness. |
| Delivery Period: | 1-3 working days after payment |
| Payment Method: | T/T, Western Union, Credit card |
| Supply Capacity: | 10000 pairs per month |
Fiber Media Converter 10/100Base-TX to 100Base-FX Single-Mode Dual Fiber SC
Description
The NuFiber® single fiber single mode media converters are designed to transmit and receive 10/100Mbps data over one optical fiber.
The electrical interface will Auto-Negotiate to a 10Mbps, or 100Mbps Ethernet rate without any adjustments.
The optical interface operates at a 100Mbps Ethernet rate. LED indicators are provided for rapidly ascertaining equipment operating status.
Key Features
1. Plug and play, high performance, Low power consumption;
2. Complies with IEEE802.3 (10BASE-T) and IEEE802.3u (100BASE-TX/FX) standards;
3. Auto-negotiation support on RJ45 port;
4. Auto-Negotiation of duplex(HDX/FDX) on RJ45 port;
5. Electrical port supports Auto-Negotiation for 10Mbps or 100Mbps, full duplex or half duplex data;
6. Auto MDI/MDI-X support on RJ45 port;
7. Distances up to: 2 km Multimode, 120 km Single Mode;
8. ST, SC, FC optical connectors;
9. Status LED's for TX,FX LINK/ACT, POWER,100M to easily monitor network status;
10. External power adapter.
Applications
► Access Control Systems
► Building and Environmental Control Systems
► Tamper Switch
► 10/100 Mbps Ethernet Media Converter
► High Speed Computer Links
Technical Specifications
| Parameters | Specifications |
| Standards | IEEE802.3u (100Base-TX/FX), IEEE 802.3 (10Base-T) |
| Data Transfer Rate | 100Mbps: 148,800 pps 10Mbps: 14,880 pps |
| Wavelength | Multi-mode: 850 nm or 1310nm Single-mode: 1310 nm , 1550 nm |
| Transmission Distance |
Fiber: |
| Port |
One RJ45 port |
| MDI/MDI-X | Auto selection |
| LED Indicator | PWR: Green Illuminated to indicate unit is operating under normal operation TX LNK/ACT: Green Illuminated indicates receiving link pulses from compliant copper device and flashes when data being sent / received FX LNK/ACT: Green Illuminated indicates receiving link pulses from compliant fiber device and flashes when data being sent / received 100M: Green Illuminated when data packets are being transmitted at 100 Mbps |
| Power Supply | Outside: 5 V DC 1 A Built-in: 100 V to 240 V AC 50 Hz to 60 Hz |
| Operating Temp | 0 °C to +70 °C |
| Storage Temp | -20 °C to +80 °C |
| Storage Humidity | 5% to 90% (non-condensing) |
| Dimensions | 95 mm × 70 mm × 25 mm |
| Net Weight | 0.165 kg |

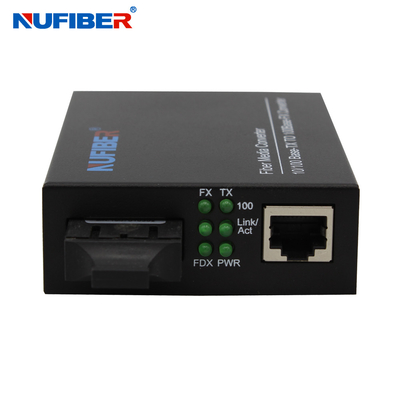

Product show
Shipping and Packing
Quality
1. 100% new materials for production, the chips are purchased from international firms such as Marvell,Reltek,etc.
2. High quality products with ISO9001, RoHS, FCC, CE Certificates.
3. Multiple detection: Raw materials detection, three rounds of testing for the optical and electrical properties, 24 hours aging test, compatibility testing on switches before delivery.
FAQ
Q: Are you a manufacturer or a trading company ?
A: We're professional manufacturer of fiber media converter, providing one-stop OEM & ODM service to all partners all over the world.
Q: Are your products conforming to our standards ?
A: Yes, our products can pass the testings as you require, e.g.: CE, RoHS, ISO9001.
Q: How do you control the quality ?
A: We have perfect QC system (IQC, IPQC, FQC, OQC team), professional product engineers and continuous improvement system.
|
|
