Product Details:

Place of Origin: Shenzhen, China ( mainland)
Brand Name: Nufiber
Certification: CE
Model Number: NF-C2200LX20A/B

Payment & Shipping Terms:

Minimum Order Quantity: 1 pair
Packaging Details: Carton Packaging, the products are packed in international standard. Each carton is lined with a polythene sheet, thus preventng the contents from dampness
Delivery Time: within 1-3 working days after payment
Payment Terms: T/T, Western Union, Credit card
Supply Ability: 10000 pair per month
Get Best Price Contact Now

Detail Information

Fiber Type: SM Single Fiber Fiber Interface: SC/ST/FC
Connector: RJ45 Port Transmission Rate: 10/100/1000M
Distance: 20KM Wavelength: 1310nm/1550nm
Warranty: 3 Years
High Light:

10 100 1000m Media Converter

,

1000m Media Converter Tx To Fx

Product Description

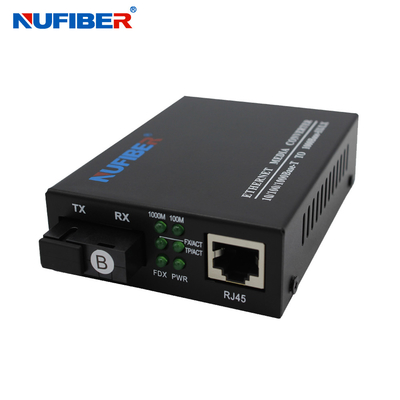

10/100/1000Mbps Fiber Media Converter 10/100/1000Base-TX to 1000Base-FX Single-Mode Single Fiber SC 20m NF-C2200LX20A/B



Overview



The NF-C2200LX20A/B Gigabit media converter with external power supply are designed to transmit and receive 10/100/1000Mbps data over optical fiber. The electrical interface will Auto-Negotiate to a 100Mbps or 1000Mbps Ethernet rate without any adjustments. The optical interface operates at a 1000Mbps Ethernet rate. Both are environmentally hardened to operate in extreme temperatures. LED indicators are provided for confirming equipment operating status.



Key Features

  • 10/100/1000Mbps Ethernet
  • 10/100/1000 BASE-T/TX electrical port
  • 1000 BASE-SX/LX optical port
  • Electrical port supports Auto-Negotiation for 100Mbps or 1000Mbps, full duplex or half duplex data.
  • Optical port supports 1000Mbps full duplex data
  • Automatic MDI/MDI-X crossover
  • Distances up to 2km for Multi mode;Up to 120km for Single mode
  • Voltage transient protection on all power and signal input.output lines provides unconditional protection from power surges and other voltage transient events
  • No in-field optical adjustments required
  • LED Indicators

Applications



1. Access Control Systems

2. Building and Environmental Control Systems

3.Tamper Switch

4. 10/100/1000 Mbps Ethernet Media Converter

5. High Speed Computer Links



Technical Parameter



Parameters Specifications
Standards IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3ab 1000Base-TX/FX
Optic Wavelength

NF-C2200SX: 850nm

NF-C2200LX20: 1310nm

NF-C2200-SFP: N/A

NF-C2200LX20A:TX:1310nm/RX:1550nm

NF-C2200LX20B:TX:1550nm/RX:1310nm

Transmission Distance

Multimode: 2km

Single mode:10km~120km

Port One RJ45 port, Single fiber port (SC/ST/FC Optional)
MDI/MDI-X Auto selection
Mac address table 4K
Memory buffer 256K
Forward / Filter Rate 10M: 14,880/14,880pps
100M: 148,800/148,800pps
1000M: 1,488,000/1,488,000pps
Power Supply

External : 5V DC 2A
Built-in: 100 V to 240 V AC 50Hz to 60 Hz

Power Consumption : ≤5W

Operating Temperature 0 °C to +70 °C
Storage Temperature -20 °C to +80 °C
Relative Humidity 5% to 90% (non-condensing)
Dimensions 95mm * 70 mm * 25mm
Net Weight 0.165 kg
Emissions FCC , Class A, RoHS, CE Mark





Connection Diagram





10 100 1000m Media Converter Tx To Fx 010 100 1000m Media Converter Tx To Fx 1




Products show

10 100 1000m Media Converter Tx To Fx 2

10 100 1000m Media Converter Tx To Fx 3

10 100 1000m Media Converter Tx To Fx 4

10 100 1000m Media Converter Tx To Fx 5

10 100 1000m Media Converter Tx To Fx 6



Packaging and shipping



10 100 1000m Media Converter Tx To Fx 710 100 1000m Media Converter Tx To Fx 8
