10G SFP+ Cwdm Transceiver Single Mode 40km 1270nm 1610nm

10G SFP+ Cwdm Transceiver Single Mode 40km 1270nm 1610nm

MOQ: 1 piece
Standard Packaging: 10pcs/plastic bag, 500pcs/carton
Delivery Period: Within 1-3 work days
Payment Method: L/C, T/T, Western Union,Credit Card
Supply Capacity: 100,000 pcs per month
Detail Information
Place of Origin
China
Brand Name
NuFiber
Certification
CE FCC Rohs
Model Number
SFP-10G-CW40-XX
Data Rate:
10Gb/s
Wavelength:
1270~1610nm
Distance:
40KM
Connector:
LC
Packaging:
CWDM SFP
Fiber Type:
Duplex LC SM
Power Supply:
3.3V
Working Temperature:
0-70℃
Manufacturer:
Yes
Compatible:
Cisco Huawei HP Juniper Etc...
Warranty:
1 Year
Highlight:

10G SFP+ Cwdm Transceiver

,

10G SFP+ Cwdm Transceiver 40km

,

10G SFP+ Transceiver 40km 1270nm

Product Description

10Gb/s 40km CWDM 1270~1610nm SFP+ Transceiver Duplex LC DFB Single mode

Hot Pluggable, Duplex LC, +3.3V, 1270~1610nm, CWDM DFB, Single mode



Features

  • Supports 9.95 to 11.3Gb/s bit rates
  • Hot-Pluggable
  • Duplex LC connector
  • 1270~1610nm CWDM DFB transmitter, PIN photo-detector
  • SMF links up to 40km
  • 2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface
  • Power Supply :+3.3V
  • Power consumption<1.5W
  • Temperature Range: 0~ 70°C
  • RoHS compliant



Applications

² 10GBASE-ER/EW Ethernet

² Sonet OC-192/SDH

² 10G Fibre Channel 1200-SM-LL-L


Products Show

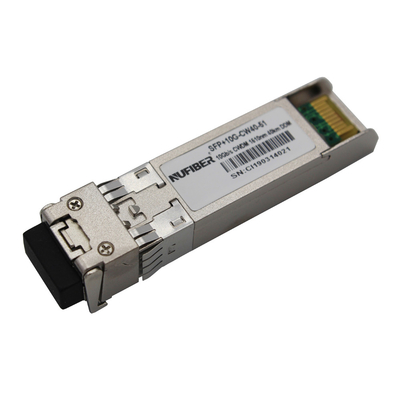

10G SFP+ Cwdm Transceiver Single Mode 40km 1270nm 1610nm 0

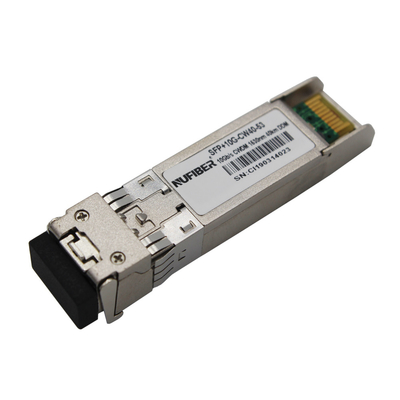

10G SFP+ Cwdm Transceiver Single Mode 40km 1270nm 1610nm 110G SFP+ Cwdm Transceiver Single Mode 40km 1270nm 1610nm 210G SFP+ Cwdm Transceiver Single Mode 40km 1270nm 1610nm 310G SFP+ Cwdm Transceiver Single Mode 40km 1270nm 1610nm 410G SFP+ Cwdm Transceiver Single Mode 40km 1270nm 1610nm 510G SFP+ Cwdm Transceiver Single Mode 40km 1270nm 1610nm 610G SFP+ Cwdm Transceiver Single Mode 40km 1270nm 1610nm 7



Packing&Shipping



10G SFP+ Cwdm Transceiver Single Mode 40km 1270nm 1610nm 810G SFP+ Cwdm Transceiver Single Mode 40km 1270nm 1610nm 9

10G SFP+ Cwdm Transceiver Single Mode 40km 1270nm 1610nm 10

FAQ

10G SFP+ Cwdm Transceiver Single Mode 40km 1270nm 1610nm 11



Ordering Information



Dual Fiber SFP Transceiver
Part Number Product Description
155Mbp/s SFP Transceiver
FE-SX-MM850 155Mbps, 850nm MM 2km Dual LC, DDM 0°C~+70°C
FE-SX-MM1310 155Mbps, 1310nm MM 2km Dual LC, DDM 0°C~+70°C
FE-LX20-SM1310 155Mbps, 1310nm SM 20km Dual LC, DDM 0°C~+70°C
FE-LX40-SM1310 155Mbps, 1310nm SM 40km Dual LC, DDM 0°C~+70°C
FE-LX80-SM1550 155Mbps, 1550nm SM 80km Dual LC, DDM 0°C~+70°C
FE-LX120-SM1550 155Mbps, 1550nm SM 120km Dual LC, DDM 0°C~+70°C
1.25Gbps SFP Transceiver
GE-SX-MM850 1.25Gbps, 850nm MM 500m Dual LC, DDM 0°C~+70°C
GE-SX-MM1310 1.25gbps, 1310nm MM 2km Dual LC, DDM 0°C~+70°C
GE-LX20-SM1310 1.25Gbps, 1310nm SM 20km Dual LC, DDM 0°C~+70°C
GE-LX40-SM1310 1.25Gbps, 1310nm SM 40km Dual LC, DDM 0°C~+70°C
GE-LX60-SM1550 1.25Gbps, 1550nm SM 60km Dual LC, DDM 0°C~+70°C
GE-LX80-SM1550 1.25Gbps, 1550nm SM 80km Dual LC, DDM 0°C~+70°C
GE-LX120-SM1550 1.25Gbps, 1550nm SM 120km Dual LC, DDM 0°C~+70°C
10Gbps SFP Transceiver
SFP+-10GB-SR 10G SFP+ SR Multi mode dual fiber LC 850nm 300M
SFP+-10GB-LRM 10G SFP+ LRM Multi mode dual fiber LC 1310nm 220M
SFP+-10GB-LR 10G SFP+ LR Single mode dual fiber LC 1310nm 20km
SFP+-10GB-ERM 10G SFP+ER Single mode dual fiber LC 1310nm 40km
SFP+-10GB-ER 10G SFP+ER Single mode dual fiber LC 1550nm 40km
SFP+-10GB-ZR 10G SFP+ZR Single mode dual fiber LC 1550nm 80km
SFP+10G40-CWDM 1470 ~1610nm CWDM SFP+ 40km
SFP+10G80-CWDM 1470~1570nm CWDM SFP+ 80km
SFP+10G80-CWDM 1590~1610nm CWDM SFP+ 80km
SFP+10G40-DWDM DWDM SFP+ 40km
SFP+10G80-DWDM DWDM SFP+ 80km
XFP Transceiver
XFP-10G-SR 10G XFP SR Multi mode dual fiber LC 850nm 300M
XFP-10G-LRM 10G XFP LRM Single mode dual fiber LC 1310nm 10kM
XFP-10G-LR 10G XFP LR Single mode dual fiber LC 1310nm 20km
XFP-10G-ER 10G XFP ER Single mode dual fiber LC 1550nm 40km
XFP-10G-ZR 10G XFP ZR Single mode dual fiber LC 1550nm 80km
CWDM DWDM Transceiver
XFP-CWDM-40xx 1470 ~1610nm CWDM XFP 40km
XFP-CWDM-80xx 1470~1570nm CWDM XFP 80km
XFP-CWDM-80xx 1590~1610nm CWDM XFP 80km
XFP-DWDM-40xx DWDM XFP 40km
XFP-DWDM-80xx DWDM XFP 80km
XFP-DWDM-100xx DWDM XFP100km
