Transceiver Module 10G XFP ZR 100km 1550nm Optical SM Duplex LC DDM
Product Details:
| Place of Origin: | China |
| Brand Name: | NuFiber |
| Certification: | CE FCC Rohs |
| Model Number: | XFP-10G-ZR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece |
|---|---|
| Packaging Details: | 10pcs/plastic bag, 500pcs/carton |
| Delivery Time: | Within 1-3 work days |
| Payment Terms: | L/C, T/T, Western Union,Credit Card |
| Supply Ability: | 10,000 pcs per month |
|
Detail Information |
|||
| Data Rate: | 10Gb/s | Wavelength: | 1550nm |
|---|---|---|---|
| Distance: | 100km | Connector: | LC |
| DDM: | Support | Fiber Type: | Single Mode Duplex |
| Power Supply: | 3.3V | Working Temperature: | 0~70℃ |
| Compatibility: | Cisco, HP, Huawei, Finisar... | Manufacturer: | Yes |
| High Light: | Transceiver Module 10G XFP ZR,SM 10G XFP ZR,1550nm 10G XFP Transceiver |
||
Product Description
10Gb/s XFP Transceiver XFP-10G-ZR dual fiber Single mode 1550nm 100km LC DDM
10G XFP ZR 100km 1550nm Optical Transceiver SM Duplex LC DDM Xfp Transceiver Module Compatible Cisco Huawei Juniper HP
Ordering List:
| 10G XFP BIDI | |
| XFP-10G-BX20-SM1270 | 10G XFP 1270nmTx/1330nmRx BIDI SMF LC 20KM |
| XFP-10G-BX20-SM1330 | 10G XFP 1330nmTx/1270nmRx BIDI SMF LC 20KM |
| XFP-10G-BX40-SM1270 | 10G XFP 1270nmTx/1330nmRx BIDI SMF LC 40KM |
| XFP-10G-BX40-SM1330 | 10G XFP 1330nmTx/1270nmRx BIDI SMF LC 40KM |
| XFP-10G-BX60-SM1270 | 10G XFP 1270nmTx/1330nmRx BIDI SMF LC 60KM |
| XFP-10G-BX60-SM1330 | 10G XFP 1330nmTx/1270nmRx BIDI SMF LC 60KM |
| 10G XFP Duplex | |
| XFP-10G-SR | 10G XFP SR Multi mode dual fiber LC 850nm 300M |
| XFP-10G-LR | 10G XFP LR Single mode dual fiber LC 1310nm 20km |
| XFP-10G-ER | 10GXFP ER Single mode dual fiber LC 1550nm 40km |
| XFP-10G-ZR | 10G XFP ZR Single mode dual fiber LC 1550nm 80km |
| XFP-10G-ZR100 | 10G XFP ZR Single mode dual fiber LC 1550nm 100km |
| XFP-10G-CW10-XX | 1270-1330nm CWDM XFP 10km |
| XFP-10G-CW10-XX | 1350-1450nm CWDM XFP 10km |
| XFP-10G-CW20-XX | 1270-1330nm CWDM XFP 20km |
| XFP-10G-CW40-XX | 1470-1610nm CWDM XFP 40km |
| XFP-10G-CW80-XX | 1470-1610nm CWDM XFP 80km |
| XFP-10G-DW40-CHXX | DWDM XFP 40km |
| XFP-10G-DW80-CHXX | DWDM XFP 80km |
| XFP-10G-DW100-CHXX | DWDM XFP 100km |
Description
Nufiber XFP-10G-ZR Small Form Factor 10Gb/s (XFP) transceivers are compliant with the current XFP Multi-Source Agreement (MSA) Specification. The high performance cooled EML transmitter and high sensitivity APD receiver provide superior performance for SONET/SDH and Ethernet applications up to 80km optical links.
Features
- Support multi protocol from 9.95Gb/s to 11.3Gb/s
- Hot pluggable 30 pin connector
- Compliant with XFP MSA
- Transmission distance of 80km over single mode fiber
- 1550nm Cooled EML laser transmitter.
- APD Receiver
- Duplex LC connector
- 2-wire interface for management and diagnostic monitor
- XFI electrical interface with AC coupling
- Power supply voltages : +3.3V, +5V
- Temperature range 0°C to 70°C
- Power dissipation: <3.5W
- RoHS Compliant Part
Applications
- 10GBASE-ZR/ZW Ethernet
- SONET OC-192 / SDH STM-64 ITU-T G.959.1 P1L1-2D2
- 80km 10G LC
- Other optical links

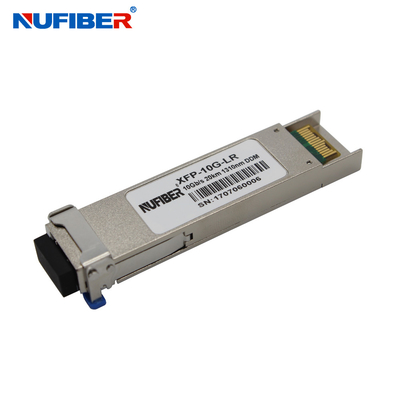

Product Pictures:
