QSFP-40G-ER4 40gb/s ER4 40KM 1310nm LC Fiber Optical Transceiver sfp Module 40g qsfp
Guaranteed manufacturer 40g/100g qsfp 10km/80km/20km fiber optic transceiver

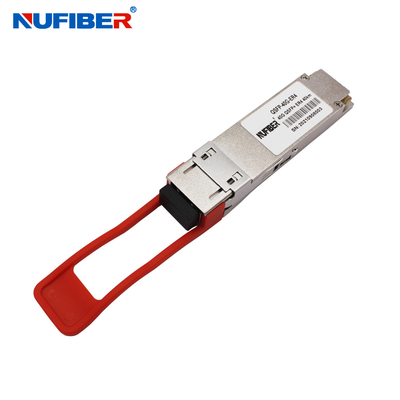

QSFP-40G-ER4
40G QSFP+ ER4 40km 1310nm LC Connector Fiber Optical Transceiver QSFP-40G-ER4 QSFP+ 40G
Hot Pluggable, Duplex LC Connector, Single mode
Product Description
The QSFP-40G-ER4 is a transceiver module designed for 40Km optical communication applications. The design is compliant to 40GBASE-ER4 of the IEEE P802.3ba standard. The module converts 4 inputs channels (ch) of 10Gb/s electrical data to 4 CWDM optical signals, and multiplexes them into a single channel for 40Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 40Gb/s input into 4 CWDM channels signals, and converts them to 4 channel output electrical data.
The central wavelengths of the 4 CWDM channels are 1271, 1291, 1311 and 1331 nm as members of the CWDM wavelength grid defined in ITU-T G694.2. It contains a duplex LC connector for the optical interface and a 38-pin connector for the electrical interface. To minimize the optical dispersion in the long-haul system, single-mode fiber (SMF) has to be applied in this module.
The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.
The module operates from a single +3.3V power supply and LVCMOS/LVTTL global control signals such as Module Present, Reset, Interrupt and Low Power Mode are available with the modules. A 2-wire serial interface is available to send and receive more complex control signals and to obtain digital diagnostic information. Individual channels can be addressed and unused channels can be shut down for maximum design flexibility.
The QSFP-40G-ER4 is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference. The module offers very high functionality and feature integration, accessible via a two-wire serial interface.
Key Features
|
4 CWDM lanes MUX/DEMUX design |
|
Up to 11.2Gbps per channel bandwidth |
|
Aggregate bandwidth of > 40Gbps |
|
Duplex LC connector |
|
Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-ER4 Standard |
|
QSFP MSA compliant |
|
Up to 40km transmission |
|
Compliant with QDR/DDR Infiniband data rates |
|
Single +3.3V power supply operating |
|
Built-in digital diagnostic functions |
|
Temperature range 0°C to 70°C |
|
RoHS Compliant |
Applicataion
|
Rack to rack |
|
Data centers Switches and Routers |
|
Metro networks |
|
Switches and Routers |
|
40G BASE-ER4 Ethernet Links |
Optical Parameters(TOP = 0 to 70 °C, VCC = 3.13 to 3.47 Volts)
| Parameter | Symbol | Min | Typ | Max | Unit | Ref. |
| Transmitter | ||||||
|
Wavelength Assignment |
L0 | 1264.5 | 1271 | 1277.5 | nm | |
| L1 | 1284.5 | 1291 | 1297.5 | nm | ||
| L2 | 1304.5 | 1311 | 1317.5 | nm | ||
| L3 | 1324.5 | 1331 | 1337.5 | nm | ||
| Side-mode Suppression Ratio | SMSR | 30 | - | - | dB | |
| Total Average Launch Power | PT | - | - | +10.5 | dBm | |
| Average Launch Power, each Lane | -2.7 | - | +4.5 | dBm | ||
| Difference in Launch Power between any two Lanes (OMA) | - | - | 4.7 | dB | ||
| Optical Modulation Amplitude, each Lane | OMA | 0.3 | +5 | dBm | ||
| Launch Power in OMA minus Transmitter and Dispersion Penalty (TDP), each Lane | -0.5 | - | dBm | |||
| TDP, each Lane | TDP | 2.6 | dB | |||
| Extinction Ratio | ER | 3.5 | - | - | dB | |
| Transmitter Eye Mask Definition {X1, X2, X3, Y1, Y2, Y3} | {0.25, 0.4, 0.45, 0.25, 0.28, 0.4} | |||||
| Optical Return Loss Tolerance | - | - | 20 | dB | ||
| Average Launch Power OFF Transmitter, each Lane | Poff | -30 | dBm | |||
| Relative Intensity Noise | Rin | -128 | dB/HZ | 1 | ||
| Receiver | ||||||
| Damage Threshold | THd | 3.8 | dBm | 1 | ||
| Average Power at Receiver Input, each Lane | R | -21.2 | -4.5 | dBm | ||
| Receiver Power (OMA), each Lane | -1 | dB | ||||
| RSSI Accuracy | -2 | 2 | dB | |||
| Receiver Reflectance | Rrx | -26 | dB | |||
| Receiver Power (OMA), each Lane | - | - | 3.5 | dBm | ||
| Stressed Receiver Sensitivity in OMA, each Lane | - | - | -16.8 | dBm | ||
| Receiver Sensitivity(OMA), each Lane | Sen | - | - | -19 | dBm | |
| Difference in Receive Power between any two Lanes (OMA) | 7.0 | dB | ||||
| Receive Electrical 3 dB upper Cutoff Frequency, each Lane | 12.3 | GHz | ||||
| LOS De-Assert | LOSD | -20 | dBm | |||
| LOS Assert | LOSA | -35 | dBm | |||
| LOS Hysteresis | LOSH | 0.5 | dB | |||
Ordering Information:
| QSFP-40G-SR4 | 40Gb/s 150m MPO/MTP Connector, Multi mode, 850nm |
| QSFP-40G-LR4 | 40Gb/s 10km Duplex LC Connector, Single mode, 1270-1330nm |
| QSFP-40G-ER4 | 40Gb/s 40km Duplex LC Connector, Single mode, 1270-1330nm |
| QSFP-40G-LR-S | 40Gb/s 2km PSM4 MPO Connector, Single mode, 1310nm |
| QSFP-40G-LR-S | 40Gb/s 10km PSM4 MPO Connector, Single mode, 1310nm |
| QSFP-40G-LX4 | 40Gb/s 150m Duplex LC Connector, Multi mode(OM3), 1270-1330nm |
| QSFP-40G-LX4 | 40Gb/s 2km Duplex LC Connector, Single mode, 1270-1330nm |
