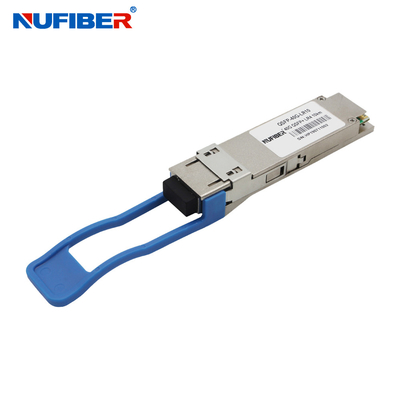

QSFP-40G-LR4 LC Fiber Optic Transceiver 1310nm 10KM

QSFP-40G-LR4 LC Fiber Optic Transceiver 1310nm 10KM

Product Details:

Place of Origin: China
Brand Name: Nufiber
Certification: CE FCC
Model Number: QSFP-40G-LR4

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Packaging Details: 10pcs/plastic bag,200pcs/carton
Delivery Time: 2-3 days
Payment Terms: T/T, Western Union
Supply Ability: 1000 Piece/Week
Get Best Price Contact Now

Detail Information

Data Rate: 40Gb/s Wavelength: 1310nm
Distance: 10Km Connector: LC
Fiber Type: Single Mode Power Supply: 3.3V
Operating Temperature: 0~70℃ Warranty: 12 Months
Manufacturer: Yes OEM: Support
High Light:

Fiber Optic Transceiver 10KM

,

LC Fiber Optic Transceiver 1310nm

,

QSFP-40G-LR4 LC Transceiver

Product Description

QSFP-40G-LR4 High Quality 40G/S QSFP+ LR4 LC Transceiver 1310nm 10Km Fiber Module



QSFP-40G-LR4



40Gb/s 10km QSFP+ Transceiver 1310nm

Hot Pluggable, Duplex LC Connector, Single mode



Key Features

4 CWDM lanes MUX/DEMUX design

Up to 11.2Gbps per channel bandwidth

Aggregate bandwidth of > 40Gbps

Duplex LC connector

Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-LR4 Standard

QSFP MSA compliant

Up to 10km on SMF transmission

Compliant with QDR/DDR Infiniband data rates

Single +3.3V power supply operating

power consumption<2.5W

Built-in digital diagnostic functions

Temperature range 0°C to 70°C

RoHS Compliant


Applicataion


Rack to rack

Data centers Switches and Routers

Metro networks

Switches and Routers

40G BASE-LR4 Ethernet Links



Optical Parameters(TOP = 0 to 70 °C, VCC = 3.13 to 3.47 Volts)

Parameter Symbol Min Typ Max Unit Ref.
Transmitter
Wavelength Assignment L0 1264.5 1271 1277.5 nm
L1 1284.5 1291 1297.5 nm
L2 1304.5 1311 1317.5 nm
L3 1324.5 1331 1337.5 nm
Side-mode Suppression Ratio SMSR 30 - - dB
Total Average Launch Power PT - - 8.3 dBm
Average Launch Power, each Lane   -7 - 2.3 dBm
Difference in Launch Power between any two Lanes (OMA)   - - 6.5 dB
Optical Modulation Amplitude,each Lane OMA -4   +3.5 dBm
Launch Power in OMA minus

Transmitter and Dispersion Penalty
(TDP), each Lane

  -4.8 -   dBm
TDP, each Lane TDP     2.3 dB
Extinction Ratio ER 3.5 - - dB

Transmitter Eye Mask Definition {X1,
X2, X3, Y1, Y2, Y3}



{0.25, 0.4,

0.45,

0.25,

0.28, 0.4}


Optical Return Loss Tolerance   - - 20 dB




























Ordering Information


QSFP-40G-SR4 40Gb/s 150m MPO/MTP Connector, Multi mode, 850nm
QSFP-40G-LR4 40Gb/s 10km Duplex LC Connector, Single mode, 1270-1330nm
QSFP-40G-ER4 40Gb/s 40km Duplex LC Connector, Single mode, 1270-1330nm
QSFP-40G-LR-S 40Gb/s 2km PSM4 MPO Connector, Single mode, 1310nm
QSFP-40G-LR-S 40Gb/s 10km PSM4 MPO Connector, Single mode, 1310nm
QSFP-40G-LX4 40Gb/s 150m Duplex LC Connector, Multi mode(OM3), 1270-1330nm
QSFP-40G-LX4 40Gb/s 2km Duplex LC Connector, Single mode, 1270-1330nm



Products Show
 QSFP-40G-LR4 LC Fiber Optic Transceiver 1310nm 10KM 0QSFP-40G-LR4 LC Fiber Optic Transceiver 1310nm 10KM 1QSFP-40G-LR4 LC Fiber Optic Transceiver 1310nm 10KM 2QSFP-40G-LR4 LC Fiber Optic Transceiver 1310nm 10KM 3

Packaging & Shipping
QSFP-40G-LR4 LC Fiber Optic Transceiver 1310nm 10KM 4QSFP-40G-LR4 LC Fiber Optic Transceiver 1310nm 10KM 5
