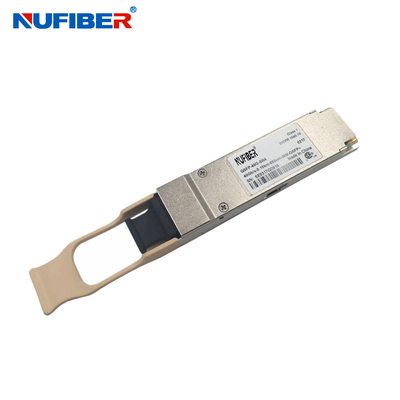

150M 850nm MPO 40G SR4 QSFP Fiber Optic Transceiver Module

150M 850nm MPO 40G SR4 QSFP Fiber Optic Transceiver Module

MOQ: 1 piece
Standard Packaging: 10pcs/plastic bag, 200pcs/carton
Delivery Period: 2-3 days
Payment Method: T/T, Western Union
Supply Capacity: 1000 Piece/Week
Detail Information
Place of Origin
China
Brand Name
Nufiber
Certification
CE FCC
Model Number
QSFP-40G-SR4
Data Rate:
40Gb/s
Wavelength:
850nm
Distance:
150m
Connector:
MPO
Fiber Type:
MMF
Power Supply:
3.3V
Operating Temperature:
0~70℃
Warranty:
12 Months
Manufacturer:
Yes
OEM:
Support
Highlight:

QSFP Fiber Optic Transceiver Module

,

150M Fiber Optic Transceiver Module

,

850nm QSFP Fiber Transceiver

Product Description



QSFP-40G-SR QSFP+ 40G 1310NM 2KM MPO TRANSCEIVER Compatible Cisco Huawei HPE Aruba



Hot Pluggable, MTP/MPO Connector, 850nm, VCSEL, Multimode



Product Description:



This is a parallel 40Gbps Quad Small Form-factor Pluggable (QSFP) optical module that provides increased port density and total system cost savings. The QSFP full-duplex optical module offers 4 independent transmit and receive channels, each capable of 10Gbps operation for an aggregate bandwidth of 40Gbps 100m on OM3 Multimode Fiber (MMF)and 150m on OM4 MMF.





Features:

  • 4 independent full-duplex channels
  • Up to 11.2Gbps per channel bandwidth
  • Aggregate bandwidth of > 40Gbps
  • MTP/MPO optical connector
  • QSFP MSA compliant
  • Digital diagnostic capabilities
  • Capable of over 100m transmission on OM3 Multimode Fiber (MMF)and 150m on OM4 MMF
  • CML compatible electrical I/O
  • Single +3.3V power supply operating
  • TX input and RX output CDR retiming
  • Built-in digital diagnostic functions
  • Temperature range 0°C to 70°C
  • RoHS Compliant Part



Applications:

² Rack to rack

² Data centers

² Metro networks

² Switches and Routers

² Infiniband 4x SDR, DDR, QDR



Ordering Information:


QSFP-40G-SR4 40Gb/s 150m MPO/MTP Connector, Multi mode, 850nm
QSFP-40G-LR4 40Gb/s 10km Duplex LC Connector, Single mode, 1270-1330nm

QSFP-40G-ER4

40Gb/s 40km Duplex LC Connector, Single mode, 1270-1330nm
QSFP-40G-LR-S 40Gb/s 2km PSM4 MPO Connector, Single mode, 1310nm
QSFP-40G-LR-S 40Gb/s 10km PSM4 MPO Connector, Single mode, 1310nm
QSFP-40G-LX4 40Gb/s 150m Duplex LC Connector, Multi mode(OM3), 1270-1330nm
QSFP-40G-LX4 40Gb/s 2km Duplex LC Connector, Single mode, 1270-1330nm

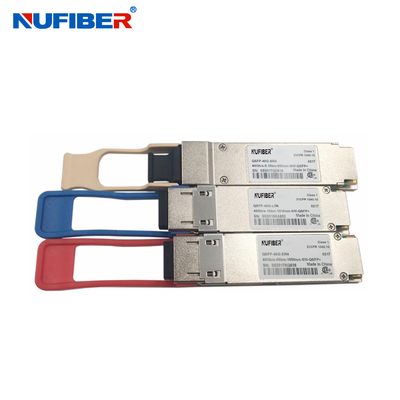

Products Show

150M 850nm MPO 40G SR4 QSFP Fiber Optic Transceiver Module 0150M 850nm MPO 40G SR4 QSFP Fiber Optic Transceiver Module 1150M 850nm MPO 40G SR4 QSFP Fiber Optic Transceiver Module 2150M 850nm MPO 40G SR4 QSFP Fiber Optic Transceiver Module 3
150M 850nm MPO 40G SR4 QSFP Fiber Optic Transceiver Module 4
150M 850nm MPO 40G SR4 QSFP Fiber Optic Transceiver Module 5

150M 850nm MPO 40G SR4 QSFP Fiber Optic Transceiver Module 6
150M 850nm MPO 40G SR4 QSFP Fiber Optic Transceiver Module 7

Packaging & Shipping
150M 850nm MPO 40G SR4 QSFP Fiber Optic Transceiver Module 8
150M 850nm MPO 40G SR4 QSFP Fiber Optic Transceiver Module 9
