10Gb/S Direct Attach Copper Cable Sfp+ Low Power Consumption 10G-DAC-1M

Products

Ethernet over Coaxial Extender

10Gb/S Direct Attach Copper Cable Sfp+ Low Power Consumption 10G-DAC-1M

Name: 10Gb/S Direct Attach Copper Cable Sfp+ Low Power Consumption 10G-DAC-1M
Brand: NuFiber
SKU: 10G-DAC-1M
Rating: 4.7 (161 reviews)

MOQ:	1 piece
Standard Packaging:	1 piece cable be packed into 1 box,
Delivery Period:	2~3 days
Payment Method:	T/T, Western Union, L/C
Supply Capacity:	100,000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

NuFiber

Certification

CE, RoHS

Model Number

10G-DAC-1M

Data Rate:

10Gb/s

Connector Type:

SFP+ To SFP+

Length:

1m/3m/5m/7m/10m/15m

Material:

Copper Cable

Application:

FTTH FTTB FTTX Network

Wire AWG:

AWG 30 As Default

Power Supply:

3.3V

Work Temp.:

0~70℃

Manufacturer:

YES

Warranty:

1 Years

High Light:

10Gb/S Direct Attach Copper Cable

Direct Attach Copper Cable Sfp+

passive sfp+ cable Low Power Consumption

Product Description

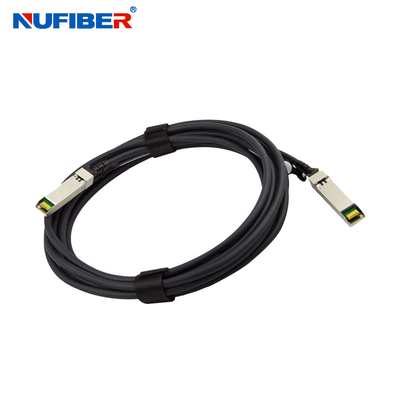

High Speed 10Gb/s SFP+ Direct Attach Copper cable Passive 10G-DAC-1M
Description
Nufiber’s high speed SFP+ Direct Attach Cable (DAC) provides high performance in 10 Gigabit Ethernet (10GbE) network applications, using an enhanced SFP+ connector to send 10Gbps data through one paired transmitters and receivers over a thin twinax cable. They are compliant with electrical standards SFF-8431, SFF-8083 and mechanical standard SFF-8432, EEPROM standard SFF-8472.

Key Features

Support for multi-gigabit data rates up to 10.5Gbps
Data rates backward compatible to 1Gbps
Hot-pluggable SFP 20PIN footprint
I/O Connector designed for high speed differential signal applications
Improved Pluggable Form Factor(IPF) compliant for enhanced EMI/EMC performance
Compatible with industry standard SFP cages +Switches
EEPROM signature can be customized.
Low Power Consumption < 0.5W
Temperature Range: 0~ 70 °C
RoHS-6 Compliant

Application

10G Ethernet
InfiniBand, Fiber Channel 4G/8G/10G
Sonet Multiplatform support
High Performance Computing Clusters
High End Servers
Metro Network Switch/Cross Connect

Technical Parameter

Parameter	Symbol	Min	Typical	Max	Unit
Operating Case Temperature	Standard Tc	0	25	70	°C
Storage Temperature	Ts	-40		85	°C
Power Supply Voltage	Vcc	3.13	3.3	3.47	V
Power Dissipation	PD			0.5	W
Relative Humidity	RH	5		95	%
Data Rate			10.5		Gbps

Test Type	Test Item	Target	Reference
Electrical Characteristics	Differential Mode RL(SDDII)	0.01<f<4.1 ; < -12+2SQRT(f ) 4. 1<f<11. 1 ; <-6.3+13log10(f/5.5) Where f is in GHz Measurements units: dB	SFF 8431
	Common mode return loss (SCCII)	0.01<f<2.5 ; <-7+1.6(f ) 2.5<f<11.1 ; <-3 Where f is in GHz Measurements units: dB	SFF 8431
	NEXT	<-26dB from 1MHz to 11GHz	/
	Cable assembly Impedence	100+/ -100hm Rise time of 30 ps (20 %- 80 %)	(20%~80 %)
	Insertion Loss Deviation	-1dB≤ILD≤1dB 300KHz≤f≤6GHz	/
Environmental Characteristics	Operating Temperature	-40~85°C	Cable operating temp.range
	Thermal Shock	Electrical performance meet the specification requirement	EIA-364-32D. Method A. TC-1. -55 10 85C,100 cycles, 15 min, dwells
	Cyclic Temp. & Humidity	Electrical performance meet the specification requirement	EIA-364-31 Method III,Test Cond A
	Salt spray	48 hours salt spraying after shell corrosive area less than 5%	EIA-364-26
	Temperature Life	Performance meets the specification requirement	EIA-364-17B w/ RH, Damp heat 85C at 85% RH for 500 hours
Mechanical Characteristics	MechanicaI Vibration	Performance meets the specification requirement	EIA-364-28E.11 TC-VII, Test Cond. D 15minutes in X,Y,Z axis.
	Cable Plug Retention in Cage	90N Min.	No functional damage to cable plug below 90N. Per SFF-8432 Rev 5.0 EIA-455-6B
	Cable Retention in Plug	90N Min.	Clamp and Shock per EIA-364-27B, TC-G, 3times in 6directions, 100g, 6ms
	Mechanical Shock	Performance meets the specification requirement	SFF-8432 Rev 5.0
	Cable plug Insertion	18N(Max.)	SFF-8432 Rev 5.0
	Cable plug extraction	12.5N(Max.)	EIA-364-09; perform plug cycles Plug and Receptacle mate rate:
	Durability	50 Time. No evidence of physical damage	250times/hour

Ordering Information

Part Number	Data Rate	Cable Length	Wire Gauge	Connector	Temp. Range
10G-DAC-3M	Up to 10.5 Gbps	3m	30AWG	Active Copper	0-70℃
10G-DAC-5M	Up to 10.5 Gbps	5m	24AWG	Active Copper	0-70℃
10G-DAC-7M	Up to 10.5 Gbps	7m	24AWG	Active Copper	0-70℃
10G-DAC-9M	Up to 10.5 Gbps	9m	24AWG	Active Copper	0-70℃
10G-DAC-10M	Up to 10.5 Gbps	10m	24AWG	Active Copper	0-70℃
10G-DAC-12M	Up to 10.5 Gbps	12m	24AWG	Active Copper	0-70℃
10G-DAC-15M	Up to 10.5 Gbps	15m	24AWG	Active Copper	0-70℃
