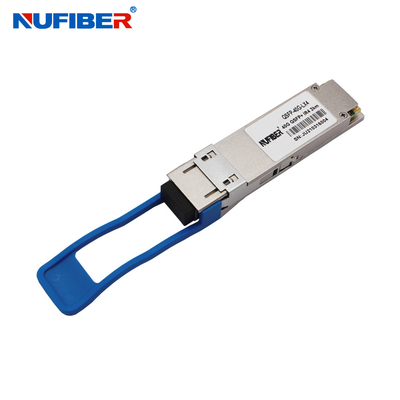

Duplex LC 40G QSFP+ Transceiver 2km 1270nm 1330nm QSFP-40G-LX4

Duplex LC 40G QSFP+ Transceiver 2km 1270nm 1330nm QSFP-40G-LX4

MOQ: 1 piece
Standard Packaging: 10pcs/plastic bag,200pcs/carton
Delivery Period: 2-3 days
Payment Method: T/T, Western Union
Supply Capacity: 1000 Piece/Week
Detail Information
Place of Origin
China
Brand Name
Nufiber
Certification
CE FCC
Model Number
QSFP-40G-LX4
Data Rate:
40Gb/s
Wavelength:
1310nm
Distance:
2Km
Connector:
LC
Fiber Type:
Single Mode
Power Supply:
3.3V
Operating Temperature:
0~70℃
Warranty:
12 Months
Manufacturer:
Yes
OEM:
Support
Highlight:

Duplex LC 40G QSFP+ Transceiver

,

Duplex LC QSFP-40G-LX4

,

40G QSFP+ Transceiver 2km 1270nm

Product Description

QSFP-40G-LX4 QSFP+ 40G 2km Duplex LC Connector SMF 1270-1330nm transceiver module



40Gb/s 2km QSFP+ Transceiver

Hot Pluggable, Duplex LC Connector, Single mode



Key Features

4 CWDM lanes MUX/DEMUX design

Up to 11.2Gbps per channel bandwidth

Aggregate bandwidth of > 40Gbps

Duplex LC connector

Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-LR4 Standard

QSFP MSA compliant

Up to 150m on MMF(OM3),  2km on SMF transmission

Compliant with QDR/DDR Infiniband data rates

Single +3.3V power supply operating

power consumption<2.5W

Built-in digital diagnostic functions

Temperature range 0°C to 70°C

RoHS Compliant


Applicataion


Rack to rack

Data centers Switches and Routers

Metro networks

Switches and Routers

40G BASE-LR4 Ethernet Links



Optical Parameters(TOP = 0 to 70 °C, VCC = 3.13 to 3.47 Volts)

Parameter Symbol Min Typ Max Unit Ref.
Transmitter
Wavelength Assignment L0 1264.5 1271 1277.5 nm
L1 1284.5 1291 1297.5 nm
L2 1304.5 1311 1317.5 nm
L3 1324.5 1331 1337.5 nm
Side-mode Suppression Ratio SMSR 30 - - dB
Total Average Launch Power PT - - 8.3 dBm
Average Launch Power, each Lane   -7 - 2.3 dBm
Difference in Launch Power between any two Lanes (OMA)   - - 6.5 dB
Optical Modulation Amplitude,each Lane OMA -4   +3.5 dBm
Launch Power in OMA minus

Transmitter and Dispersion Penalty
(TDP), each Lane

  -4.8 -   dBm
TDP, each Lane TDP     2.3 dB
Extinction Ratio ER 3.5 - - dB

Transmitter Eye Mask Definition {X1,
X2, X3, Y1, Y2, Y3}



{0.25, 0.4,

0.45,

0.25,

0.28, 0.4}


Optical Return Loss Tolerance   - - 20 dB




























Ordering Information


QSFP-40G-SR4 40Gb/s 150m MPO/MTP Connector, Multi mode, 850nm
QSFP-40G-LR4 40Gb/s 10km Duplex LC Connector, Single mode, 1270-1330nm
QSFP-40G-ER4 40Gb/s 40km Duplex LC Connector, Single mode, 1270-1330nm
QSFP-40G-LR-S 40Gb/s 2km PSM4 MPO Connector, Single mode, 1310nm
QSFP-40G-LR-S 40Gb/s 10km PSM4 MPO Connector, Single mode, 1310nm
QSFP-40G-LX4 40Gb/s 150m Duplex LC Connector, Multi mode(OM3), 1270-1330nm
QSFP-40G-LX4 40Gb/s 2km Duplex LC Connector, Single mode, 1270-1330nm



Products Show
 Duplex LC 40G QSFP+ Transceiver 2km 1270nm 1330nm QSFP-40G-LX4 0Duplex LC 40G QSFP+ Transceiver 2km 1270nm 1330nm QSFP-40G-LX4 1Duplex LC 40G QSFP+ Transceiver 2km 1270nm 1330nm QSFP-40G-LX4 2Duplex LC 40G QSFP+ Transceiver 2km 1270nm 1330nm QSFP-40G-LX4 3

Packaging & Shipping
Duplex LC 40G QSFP+ Transceiver 2km 1270nm 1330nm QSFP-40G-LX4 4Duplex LC 40G QSFP+ Transceiver 2km 1270nm 1330nm QSFP-40G-LX4 5
