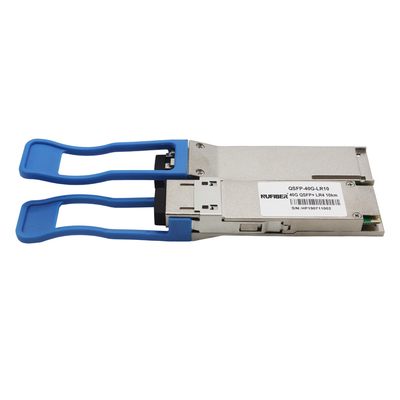

QSFP-40G-LR-S 40Gb/s QSFP+ Transceiver PSM4 MPO 10Km 1310nm Transceiver Module
Product Details:
| Place of Origin: | China |
| Brand Name: | Nufiber |
| Certification: | CE FCC |
| Model Number: | QSFP-40G-LR-S |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece |
|---|---|
| Packaging Details: | 10pcs/plastic bag, 200pcs/carton |
| Delivery Time: | 2-3 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 Piece/Week |
|
Detail Information |
|||
| Data Rate: | 40Gb/s | Wavelength: | 1310nm |
|---|---|---|---|
| Distance: | 10KMm | Connector: | MPO |
| Fiber Type: | Single Mode | Power Supply: | 3.3V |
| Operating Temperature: | 0~70℃ | Warranty: | 3 Years |
| Manufacturer: | Yes | OEM: | Support |
Product Description
QSFP-40G-LR-S
40Gb/s 10km QSFP+ Transceiver
Hot Pluggable, MTP/MPO Connector, 1310nm, DFB&PIN, Singlemode
Features:
- 4 independent full-duplex channels
- Up to 11.2Gbps per channel bandwidth
- Aggregate bandwidth of > 40Gbps
- MTP/MPO optical connector
- QSFP MSA compliant
- Power consumption<2.5W
- Digital diagnostic capabilities
- Capable of over 10km transmission on SMF
- CML compatible electrical I/O
- Single +3.3V power supply operating
- TX input and RX output CDR retiming
- Built-in digital diagnostic functions
- Temperature range 0°C to 70°C
- RoHS 6 Compliant Part
Applications:
² Rack to rack
² Data centers
² Metro networks
² Switches and Routers
² Infiniband 4x SDR, DDR, QDR
Ordering Information:
| QSFP-40G-SR4 | 40Gb/s 150m MPO/MTP Connector, Multi mode, 850nm |
| QSFP-40G-LR4 | 40Gb/s 10km Duplex LC Connector, Single mode, 1270-1330nm |
|
QSFP-40G-ER4 |
40Gb/s 40km Duplex LC Connector, Single mode, 1270-1330nm |
| QSFP-40G-LR-S | 40Gb/s 2km PSM4 MPO Connector, Single mode, 1310nm |
| QSFP-40G-LR-S | 40Gb/s 10km PSM4 MPO Connector, Single mode, 1310nm |
| QSFP-40G-LX4 | 40Gb/s 150m Duplex LC Connector, Multi mode(OM3), 1270-1330nm |
| QSFP-40G-LX4 | 40Gb/s 2km Duplex LC Connector, Single mode, 1270-1330nm |
