| MOQ: | 1 piece |
| Standard Packaging: | 1 piece cable be packed into 1 box, |
| Delivery Period: | 2~3 days |
| Payment Method: | T/T, Western Union, L/C |
| Supply Capacity: | 100,000 pcs per month |

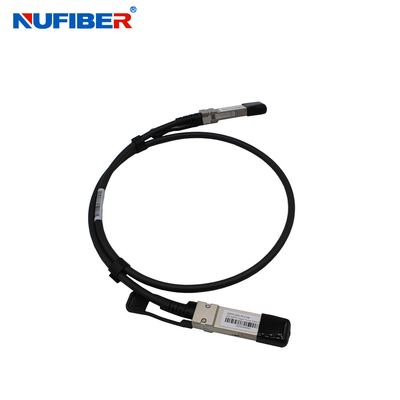

Compatible Direct Attach Passive Cable 40G QSFP To QSFP DAC 1M
Description
QSFP+ (Quad Small Form-factor Pluggable Plus) copper direct-attach cables are suitable for very short distances and offer a highly cost-effective way to establish a 40-Gigabit link between QSFP+ ports of QSFP+ switches within racks and across adjacent racks. These cables are used for 40GbE and Infniband standards, to maximize performance. QSFP+ are designed to meet emerging data center and high performance computing application needs for a high density cabling interconnect system capable of delivering an aggregate data bandwidth of 40Gb/s. This interconnect system is fully compliant with existing industry standard specifications such as the QSFP MSA and IBTA (InfiniBand Trade Association). The QSFP+ cables support the bandwidth transmission requirements as defined by IEEE 802.3ba (40 Gb/s) and Infiniband QDR ( 4x10 Gb/s per channel) specifications.
Key Features
Application
Servers
Networked storage systems
Routers
External storage systems
Data Center networking
Switches
Routers
InfiniBand Trade Association (IBTA)
IEEE802.3ba
40Gigabit Ethernet ( 40G BASE – CR4)
Technical Parameter
| Parameter | Symbol | Min | Max | Unit | Note |
| Storage Temperature | Tst | -40 | 125 | degC | |
| Relative Humidity (non-condensation) | RS | - | 85 | % | |
| Operating Case Temperature | Topc | -40 | 85 | degC | 1 |
| Supply Voltage | VCC3 | -0.3 | 3.6 | V | |
| Voltage on LVTTL Input | Vilvttl | -0.3 | VCC3 +0.2 | V |
| Parameter | Symbol | Min | Max | Unit |
| Operating Case Temperature | Topc | -40 | 85 | degC |
| Relative Humidity (non-condensation) | RS | - | 85 | % |
| Supply Voltage | VCC3 | 3.135 | 3.465 | V |
| Power Supply Currenct | ICC3 | 750 | - | mA |
| Total Power Consumption | Pd | - | 2.0 | W |
Mechanical Dimensions
Ordering Informations:
P/N | Speed | Application | MAX Distance | Media | Interface |
| QSFP28-100G-DXM | 103.1Gb/s | 100GBASE-DAC | 5m | Passive cable | QSFP28 to QSFP28 |
| QSFP28-SFP28-DXM | 103.1Gb/s | 100GBASE-DAC | 5m | Passive cable | QSFP28 to 4XSFP28 |
| QSFP-40G-DXM | 41.2Gb/s | 40GBASE-DAC | 5m | Passive cable | QSFP+ to QSFP+ |
| QSFP-4SFP-DXM | 41.2Gb/s | 40GBASE-DAC | 5m | Passive cable | QSFP+ to 4xSFP+ |
| QSFP-40G-DXM | 41.2Gb/s | 40GBASE-DAC | 10m | Active Cable | QSFP+ to QSFP+ |
| QSFP-4SFP-DXM | 41.2Gb/s | 40GBASE-DAC | 10m | Active Cable | QSFP+ to 4xSFP+ |
| SFP28-25G-DXM | 25.78Gb/s | 25GBASE-DAC | 5m | Passive cable | SFP28 to SFP28 |
| SFP-10G-DXM | 10.3Gb/s | 10GBASE-DAC | 10m | Passive cable | SFP+ to SFP+ |
| SFP-10G-DXM | 10.3Gb/s | 10GBASE-DAC | 15m | Active Cable | SFP+ to SFP+ |
Product Show
|
|
