10G DAC SFP+ to SFP+ Direct Attach Copper Cable AWG30 10G DAC 3meters

10G DAC SFP+ to SFP+ Direct Attach Copper Cable AWG30 10G DAC 3meters

MOQ: 1 piece
Standard Packaging: 1 piece cable be packed into 1 box,
Delivery Period: 2~3 days
Payment Method: T/T, Western Union, L/C
Supply Capacity: 100,000 pcs per month
Detail Information
Place of Origin
China
Brand Name
NUFIBER
Certification
CE, RoHS
Model Number
10G-DAC-3M
Data Rate:
10Gb/s
Connector Type:
SFP+ To SFP+
Length:
3M
Material:
Copper Cable
Application:
FTTH FTTB FTTX Network
Wire AWG:
AWG 30 As Default
Power Supply:
3.3V
Work Temp.:
0~70℃
Manufacturer:
YES
Warranty:
1 Year
Product Description

10G DAC SFP+ to SFP+ Direct Attach Copper Cable AWG30 10G DAC 3meters



Description
Nufiber’s high speed SFP+ Direct Attach Cable (DAC) provides high performance in 10 Gigabit Ethernet (10GbE) network applications, using an enhanced SFP+ connector to send 10Gbps data through one paired transmitters and receivers over a thin twinax cable. They are compliant with electrical standards SFF-8431, SFF-8083 and mechanical standard SFF-8432, EEPROM standard SFF-8472.


Key Features

  • Support for multi-gigabit data rates up to 10.5Gbps
  • Data rates backward compatible to 1Gbps
  • Hot-pluggable SFP 20PIN footprint
  • I/O Connector designed for high speed differential signal applications
  • Improved Pluggable Form Factor(IPF) compliant for enhanced EMI/EMC performance
  • Compatible with industry standard SFP cages +Switches
  • EEPROM signature can be customized.
  • Low Power Consumption < 0.5W
  • Temperature Range: 0~ 70 °C
  • RoHS-6 Compliant


Application

  • 10G Ethernet
  • InfiniBand, Fiber Channel 4G/8G/10G
  • Sonet Multiplatform support
  • High Performance Computing Clusters
  • High End Servers
  • Metro Network Switch/Cross Connect


Technical Parameter



Parameter Symbol Min Typical Max Unit
Operating Case Temperature Standard Tc 0 25 70 °C
Storage Temperature Ts -40   85 °C
Power Supply Voltage Vcc 3.13 3.3 3.47 V
Power Dissipation PD     0.5 W
Relative Humidity RH 5   95 %
Data Rate     10.5   Gbps



Test Type Test Item Target Reference
Electrical
Characteristics
Differential Mode RL(SDDII) 0.01<f<4.1 ; < -12+2*SQRT(f )
4. 1<f<11. 1 ; <-6.3+13*log10(f/5.5)
Where f is in GHz
Measurements units: dB
SFF 8431
Common mode return loss
(SCCII)
0.01<f<2.5 ; <-7+1.6(f )
2.5<f<11.1 ; <-3
Where f is in GHz
Measurements units: dB
SFF 8431
NEXT <-26dB from 1MHz to 11GHz /
Cable assembly Impedence 100+/ -100hm
Rise time of 30 ps (20 %- 80 %)
(20%~80 %)
Insertion Loss Deviation -1dB≤ILD≤1dB
300KHz≤f≤6GHz
/
Environmental
Characteristics
Operating Temperature -40~85°C Cable operating temp.range
Thermal Shock Electrical performance meet the
specification requirement
EIA-364-32D. Method A.
TC-1. -55 10 85C,100
cycles, 15 min, dwells
Cyclic Temp. & Humidity Electrical performance meet the
specification requirement
EIA-364-31 Method III,Test
Cond A
Salt spray 48 hours salt spraying after shell
corrosive area less than 5%
EIA-364-26
Temperature Life Performance meets the specification requirement EIA-364-17B w/ RH, Damp
heat 85C at 85% RH for 500 hours
Mechanical
Characteristics
MechanicaI Vibration Performance meets the specification requirement EIA-364-28E.11 TC-VII, Test Cond. D 15minutes in X,Y,Z axis.
Cable Plug Retention in Cage 90N Min. No functional damage to cable plug below 90N. Per SFF-8432 Rev 5.0 EIA-455-6B
Cable Retention in Plug 90N Min. Clamp and Shock per EIA-364-27B, TC-G, 3times in 6directions, 100g, 6ms
Mechanical Shock Performance meets the specification requirement SFF-8432 Rev 5.0
Cable plug Insertion 18N(Max.) SFF-8432 Rev 5.0
Cable plug extraction 12.5N(Max.) EIA-364-09; perform plug cycles Plug and Receptacle mate rate:
Durability 50 Time. No evidence of physical damage 250times/hour






Product Show

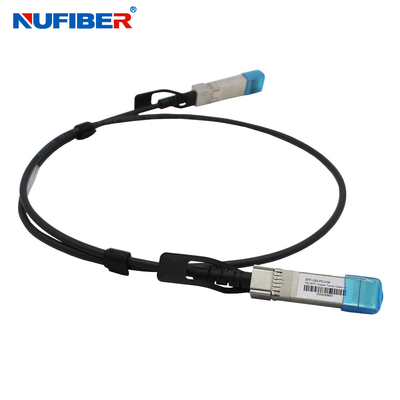

10G DAC SFP+ to SFP+ Direct Attach Copper Cable AWG30 10G DAC 3meters 010G DAC SFP+ to SFP+ Direct Attach Copper Cable AWG30 10G DAC 3meters 110G DAC SFP+ to SFP+ Direct Attach Copper Cable AWG30 10G DAC 3meters 210G DAC SFP+ to SFP+ Direct Attach Copper Cable AWG30 10G DAC 3meters 310G DAC SFP+ to SFP+ Direct Attach Copper Cable AWG30 10G DAC 3meters 4
