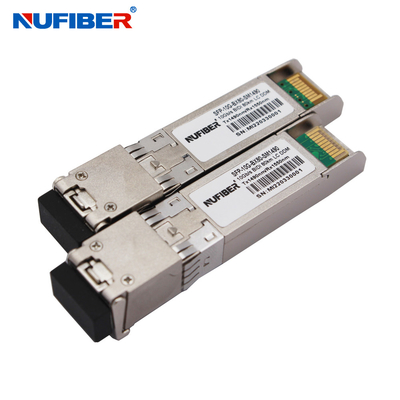

80km Single Mode 10G SFP+ Module , 1490 / 1550nm 10G SFP Fiber Module

80km Single Mode 10G SFP+ Module , 1490 / 1550nm 10G SFP Fiber Module

Product Details:

Place of Origin: China
Brand Name: NUFIBER
Certification: CE FCC Rohs
Model Number: SFP-10G-BX80-SM1490/1550

Payment & Shipping Terms:

Minimum Order Quantity: 1 pair
Packaging Details: 10pcs/plastic bag, 500pcs/carton
Delivery Time: Within 1-3 work days
Payment Terms: L/C, T/T, Western Union,Credit Card
Supply Ability: 10,000 pcs per month
Get Best Price Contact Now

Detail Information

Data Rate: 10Gb/s Wavelength: 1490/1550nm
Distance: 80km Connector: LC
DDM: Support Fiber Type: Single Fiber SM
Power Supply: 3.3V Working Temperature: 0~70℃
Warranty: 1 Year Compatibility: Huawei, Cisco, HP, H3C...
Manufacturer: Yes
High Light:

80km 10G SFP+ Module

,

Single Mode 10G SFP+ Module

,

1550nm SFP Fiber Module

Product Description

10G SFP+ Module 80km 10G Single Mode 1490/1550nm 10G SFP Fiber Module

Description

NuFiber’s SFP-10G-BX80-SM1490/1550 series single mode transceiver is small form factor pluggable module for optical data communications such as 10G Ethernet. It is with the SFP+ 20-pin connector to allow hot plug capability. The SFP-10G-BX80-SM1490/1550 module is designed for single mode fiber and operates at a nominal wavelength of 1490nm or 1550nm; The transmitter section uses a EML laser, which is class 1 laser compliant according to International Safety Standard IEC-60825. The receiver section consists of a APD photodiode integrated with a TIA. The transceiver designs are optimized for high perform -ance and cost effective to supply customers the best solutions for telecommunication.



Features



●Supports 9.95 to 11.3Gb/s bit rates

●Simplex LC Connector

●Hot pluggable SFP+ footprint

●Cooled 1490nm EML transmitter, 1550nm APD receiver

●Cooled 1550nm EML transmitter, 1490nm APD receiver

●Applicable for 80km SMF connection

●Low power consumption, < 1.5W

●Digital Diagnostic Monitor Interface

●Optical interface compliant to IEEE 802.3ae 10GBASE-ZR

●Electrical interface compliant to SFF-8431

●Operating case temperature:

Commerical:0 to 70 °C





Optical Parameters


Parameter Symbol Min. Typ Max. Unit Note
Transmitter
Operating Wavelength λ 1470 1490 1510 nm
1530 1550 1565
Ave. output power (Enabled) PAVE 0   5 dBm 1
Side-Mode Suppression Ratio SMSR 30     dB
Extinction Ratio ER 9     dB
RMS spectral width Δλ     1 nm
Rise/Fall time (20%~80%) Tr/Tf     50 ps
Dispersion penalty TDP     3.2 dB
Relative Intensity Noise RIN     -128 dB/Hz
Output Optical Eye Compliant with IEEE 0802.3ae
Receiver
Operating Wavelength λ 1530 1550 1565 nm
1470 1490 1510
Receiver Sensitivity PSEN1     -22 dBm 2
Sensitivity over 80Km fiber PSEN2     -20 dBm 2
Overload PAVE     -7 dBm
LOS Assert Pa -35     dBm
LOS De-assert Pd     -24 dBm
LOS Hysteresis Pd-Pa 0.5     dB









Products Show

80km Single Mode 10G SFP+ Module , 1490 / 1550nm 10G SFP Fiber Module 0

80km Single Mode 10G SFP+ Module , 1490 / 1550nm 10G SFP Fiber Module 1

80km Single Mode 10G SFP+ Module , 1490 / 1550nm 10G SFP Fiber Module 2

80km Single Mode 10G SFP+ Module , 1490 / 1550nm 10G SFP Fiber Module 3

80km Single Mode 10G SFP+ Module , 1490 / 1550nm 10G SFP Fiber Module 4



Packaging & Shipping

80km Single Mode 10G SFP+ Module , 1490 / 1550nm 10G SFP Fiber Module 5



80km Single Mode 10G SFP+ Module , 1490 / 1550nm 10G SFP Fiber Module 6



Factory Show

80km Single Mode 10G SFP+ Module , 1490 / 1550nm 10G SFP Fiber Module 7
