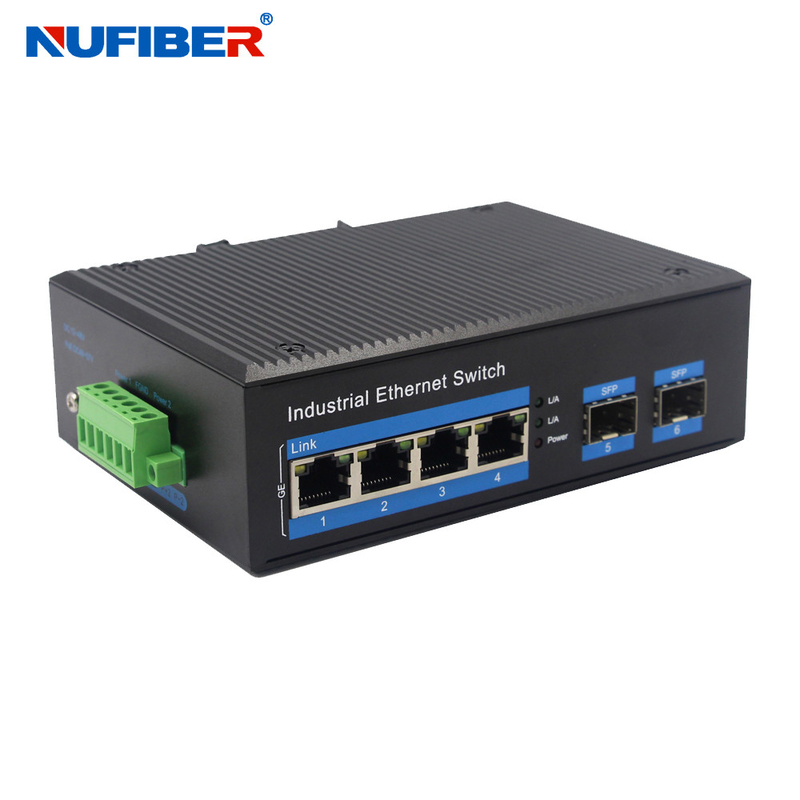

DC24V Power Supply Gigabit SFP Ethernet Switch Industrial 2 SFP 4 UTP Port

DC24V Power Supply Gigabit SFP Ethernet Switch Industrial 2 SFP 4 UTP Port

Product Details:

Place of Origin: China
Brand Name: NUFIBER
Certification: CE
Model Number: NF524G-SFP

Payment & Shipping Terms:

Minimum Order Quantity: 1 pieces
Packaging Details: 1 piece/packing box with spongy filler, 20pcs per standard export carton
Delivery Time: 1~2 work days for sample order
Payment Terms: Western Union, T/T, L/C
Supply Ability: 1000 pcs per week
Get Best Price Contact Now

Detail Information

Fiber Type: SFP Slot Connector: SC/FC/ST ; LC (SFP Port) Optional
Working Temp.: -40 ~ +85℃ Warranty: 3 Years
Material: Aluminum Alloy Installation: DIN-rail Type
Protection Grade: IP40 Interface: 4 Rj45 +2 SFP Port
Transmission Speed: 10/100/1000Mbps Power Supply: DC12~48V (POE: DC48~57V)
High Light:

4 UTP SFP Ethernet Switch

,

Aluminum Alloy SFP Ethernet Switch

,

DC24V Gigabit Media Converter

Product Description

Gigabit SFP Ethernet Switch Industrial 2 SFP 4 UTP Port Media Converter DC24V Power Supply



Overview



NuFiber’s NF524G-SFP Industrial Ethernet switch, With 4 Port 10/100/1000M Ethernet ports and 2 port 1000Mbps SFP Slot, for connecting with devices like computer,switch, hub, server, etc, as well as powering network camera, industrial VoIP phone, wireless AP and other devices.



Specially designed for harsh outdoor applications. Its 3KV network port surge protection can adapt to harsh outdoor environment and ensure the reliability of the uninterrupted PoE system. Power input also chooses industry-standard types of power.



Features



• 4 Port 10/100/1000Mbps RJ45 with Auto Uplink™ , 2 port 1000Mbps SFP Slot.

• Automatic MAC address learning and aging

• Automatically support IGMP (Multicasting)

• 10/100/1000Mbps Auto-negotiation , auto-MDI-MDI-X

• LED indicators for monitoring power/link/activity

• Supports 10/100/1000Mbps-Full/Half-duplex

• Supports Wall-mount and DIN-Rail installation for lightning protection

• Supports Daisy-Chain connection

• Supports Broadcast Storm Control

• Super lightening protection, IP40 protection.

• Excellent heat elimination without cooling fan.

• Redundant dual DC power inputs.

• Redundant Power Inputs

• Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe City.

• Harsh industrial environment or higher requirement

• -40℃-85℃ operating temperature range.

• 3-Year Warranty



Technical Specification



Product Name 4 Port 10/100/1000Base Industrial Ethernet Switch
Product Model NF524G-SFP
Interface 4x 10/100/1000Base-T RJ45 port + 2x 1000Mbps SFP
Network Protocols IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX;
IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x;
Network Media 10BASE-T: Cat3,4,5 UTP(≤100 meter)
100BASE-TX: Cat5 or later UTP(≤100 meter)
1000BASE-TX: Cat6 or later UTP(≤100 meter)
Fiber Media

Multi-mode: 2KM

Single-mode: 20/40/60/80KM

Performance Specification Bandwidth: 20Gbps
Packet Buffer Memory: 2M
Packet Forwarding Rate:148800pps/port
MAC Address Table: 16K
Forwarding Mode Store-and-Forward
Protection Lightening protection, IP40 protection
LED Indicators Power: PWR; Link; Link/Act
Power Supply Input Power: 2x10~57VDC (Terminal Block)



Other Specifications
Working Environment Working temperature: -40~85℃ ; Storage temperature: -45~85℃
Relative Humidity: 5%~95 %( no condensation)
Industry Standard FCC CFR47 Part 15,EN55022/CISPR22, Class A EMS:
IEC61000-4-2 (ESD): ±8kV (contact), ±15kV (air)
IEC61000-4-3 (RS): 10V/m (80MHz-2GHz)
IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV
IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV
IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)
IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)
Shell IP40 protect grade, metal shell
Installation DIN-Rail or Wall mounts
Packing List 1×Industrial Ethernet Switch (plus terminal block)
1×User Manual/Certificate of quality/Warranty card
1×DIN-Rail mounting kit
Certification CE mark, commercial; FCC Part 15 Class B; VCCI Class B
EN 55022 (CISPR 22), Class B
MTBF 300,000 hours
Weight & Size Product Weight: 0.355KG
Packing Weight: 0.875 KG
Product size (L×W×H): 143.5mm× 130mm× 47mm
Packing size(L×W×H): 286mm x 230mm x 60mm
Warranty 3-years





Product Picture

DC24V Power Supply Gigabit SFP Ethernet Switch Industrial 2 SFP 4 UTP Port 0

DC24V Power Supply Gigabit SFP Ethernet Switch Industrial 2 SFP 4 UTP Port 1

DC24V Power Supply Gigabit SFP Ethernet Switch Industrial 2 SFP 4 UTP Port 2

DC24V Power Supply Gigabit SFP Ethernet Switch Industrial 2 SFP 4 UTP Port 3

DC24V Power Supply Gigabit SFP Ethernet Switch Industrial 2 SFP 4 UTP Port 4

DC24V Power Supply Gigabit SFP Ethernet Switch Industrial 2 SFP 4 UTP Port 5





Packing & Shipping







DC24V Power Supply Gigabit SFP Ethernet Switch Industrial 2 SFP 4 UTP Port 6



DC24V Power Supply Gigabit SFP Ethernet Switch Industrial 2 SFP 4 UTP Port 7
