OEM ODM Fiber Media Converter RJ45 8 Port Unmanaged Ethernet Switch

OEM ODM Fiber Media Converter RJ45 8 Port Unmanaged Ethernet Switch

MOQ: 1 pieces
Standard Packaging: 1 piece/packing box with spongy filler, 20pcs per standard export carton
Delivery Period: 1~2 work days for sample order
Payment Method: Western Union, T/T, L/C
Supply Capacity: 1000 pcs per week
Detail Information
Place of Origin
China
Brand Name
NuFiber
Certification
CE
Model Number
NF518GF-SFP
Product Name:
Industrial Fiber Media Converter
Fiber Type:
SFP Slot
Connector:
SC/FC/ST ; LC (SFP Port) Optional
Working Temp.:
-40 ~ +85℃
Material:
Aluminum Alloy
Installation:
DIN-rail Type
Protection Grade:
IP40
Interface:
1x1000M SFP Port + 8x10/100M RJ45 Port
Transmission Speed:
10/100Mbps
Power Supply:
DC12~48V (POE: DC48~57V)
Highlight:

ODM Fiber Media Converter

,

OEM 8 Port Unmanaged Ethernet Switch

,

OEM RJ45 Fiber Media Converter

Product Description

10/100M Industrial Fiber Ethernet Switch

Industrial ethernet switch 1x1000M SFP port + 8x10/100M RJ45 port with Din-rail DC10-52V IP40



Overview



NuFiber’s NF518GF-SFP Industrial Ethernet switch, With 8 Port 10/100M Ethernet ports and 1 port 1000Mbps SFP Slot, for connecting with devices like computer,switch, hub, server, etc, as well as powering network camera, industrial VoIP phone, wireless AP and other devices. Specially designed for harsh outdoor applications. Its 3KV network port surge protection can adapt to harsh outdoor environment and ensure the reliability of the uninterrupted PoE system. Power input also chooses industry-standard types of power.



Features



• 8 Port 10/100Mbps RJ45 with Auto Uplink™ , 1 port 1000Mbps SFP Slot.

• Automatic MAC address learning and aging

• Automatically support IGMP (Multicasting)

• 10/100Mbps Auto-negotiation , auto-MDI-MDI-X

• LED indicators for monitoring power/link/activity

• Supports 10/100Mbps-Full/Half-duplex

• Supports Wall-mount and DIN-Rail installation for lightning protection

• Supports Daisy-Chain connection

• Supports Broadcast Storm Control

• Super lightening protection, IP40 protection.

• Excellent heat elimination without cooling fan.

• Redundant dual DC power inputs.

• Redundant Power Inputs

• Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe City.

• Harsh industrial environment or higher requirement

• -40℃-85℃ operating temperature range.

• 1-Year Warranty



Technical Specification



Product Name 8 Port 10/100Base Industrial Ethernet Switch
Product Model NF518GF-SFP
Interface 8x 10/100Base-T RJ45 port + 1x 1000Mbps SFP Slot
Network Protocols IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX;
IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x;
Network Media 10BASE-T: Cat3,4,5 UTP(≤100 meter)
100BASE-TX: Cat5 or later UTP(≤100 meter)
Fiber Media

Multi-mode: 2KM

Single-mode: 20/40/60/80KM

Performance Specification Bandwidth: 5.6Gbps
Packet Buffer Memory: 1M
Packet Forwarding Rate:148800pps/port
MAC Address Table: 4K
Forwarding Mode Store-and-Forward
Protection Lightening protection, IP40 protection
LED Indicators Power: PWR; Link; Link/Act
Power Supply Input Power: 2x10~58VDC (Terminal Block)





Other Specifications
Working Environment Working temperature: -40~85℃ ; Storage temperature: -45~85℃
Relative Humidity: 5%~95 %( no condensation)
Industry Standard FCC CFR47 Part 15,EN55022/CISPR22, Class A EMS:
IEC61000-4-2 (ESD): ±8kV (contact), ±15kV (air)
IEC61000-4-3 (RS): 10V/m (80MHz-2GHz)
IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV
IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV
IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)
IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)
Shell IP40 protect grade, metal shell
Installation DIN-Rail or Wall mounts
Packing List 1×Industrial Ethernet Switch (plus terminal block)
1×User Manual/Certificate of quality/Warranty card
1×DIN-Rail mounting kit
Certification CE mark, commercial; FCC Part 15 Class B; VCCI Class B
EN 55022 (CISPR 22), Class B
MTBF 300,000 hours
Weight & Size Product Weight: 0.6KG
Packing Weight: 1.1 KG
Product size (L×W×H): 143.5mm× 130mm× 47mm
Packing size(L×W×H): 286mm× 230 mm× 60m
Warranty 1 year



Ordering information



NF511G-SFP Industrial 10/100/1000M 1 SFP port + 1 RJ45 port, DIN Rail type, DC10~48V, exclude power adapter and SFP module
NF512G-SFP Industrial 10/100/1000M 1 SFP port + 2 RJ45 port, DIN Rail type, DC10~48V, exclude power adapter and SFP module
NF514G-SFP Industrial 10/100/1000M 1 SFP port + 4 RJ45 port, DIN Rail type, DC10~48V, exclude power adapter and SFP module
NF524G-SFP Industrial 10/100/1000M 2 SFP port + 4 RJ45 port, DIN Rail type, DC10~48V, exclude power adapter and SFP module
NF518GF-SFP Industrial 1x1000M SFP port + 8x10/100M RJ45 port, DIN Rail type, DC 10~48V, exclude power adapter and SFP module
NF528GF-SFP Industrial 2x1000M SFP port + 8x10/100M RJ45 port, DIN Rail type, DC 10~48V, exclude power adapter and SFP module
NF518G-SFP Industrial 1x1000M SFP port + 8x10/100/1000M RJ45 port, DIN Rail type, DC 10~48V, exclude power adapter and SFP module
NF528G-SFP Industrial 2x1000M SFP port + 8x10/100/1000M RJ45 port, DIN Rail type, DC 10~48V, exclude power adapter and SFP module

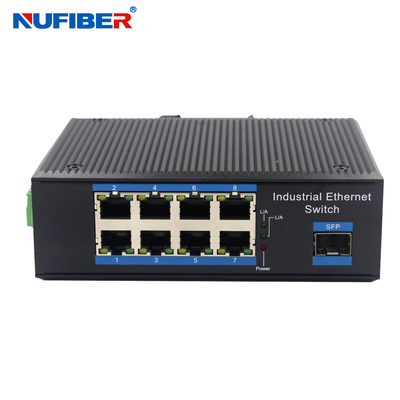

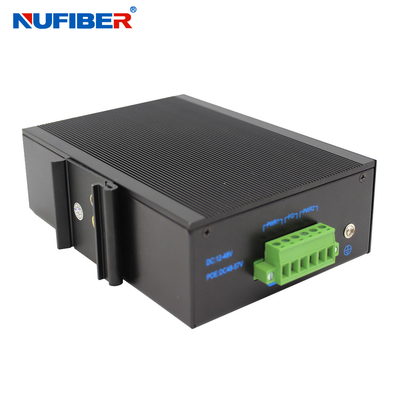

Product Picture

OEM ODM Fiber Media Converter RJ45 8 Port Unmanaged Ethernet Switch 0OEM ODM Fiber Media Converter RJ45 8 Port Unmanaged Ethernet Switch 1OEM ODM Fiber Media Converter RJ45 8 Port Unmanaged Ethernet Switch 2



Packing & Shipping



OEM ODM Fiber Media Converter RJ45 8 Port Unmanaged Ethernet Switch 3



OEM ODM Fiber Media Converter RJ45 8 Port Unmanaged Ethernet Switch 4

OEM ODM Fiber Media Converter RJ45 8 Port Unmanaged Ethernet Switch 5





Welcome to send us inquiry for this products !  24/7days services online !
