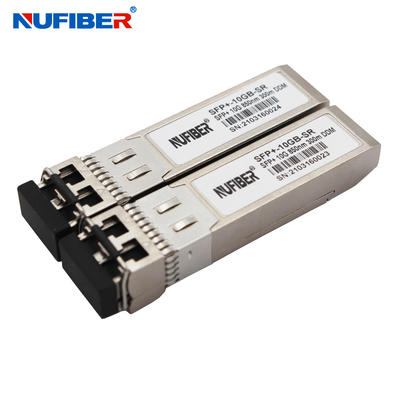

• Compatible With Cisco / Hauwe / H3C / Juniper 10G SFP+ SR Transceiver SX Multimode
  • Compatible With Cisco / Hauwe / H3C / Juniper 10G SFP+ SR Transceiver SX Multimode
  • Compatible With Cisco / Hauwe / H3C / Juniper 10G SFP+ SR Transceiver SX Multimode
Compatible With Cisco / Hauwe / H3C / Juniper 10G SFP+ SR Transceiver SX Multimode

Compatible With Cisco / Hauwe / H3C / Juniper 10G SFP+ SR Transceiver SX Multimode

Product Details:

Place of Origin: China
Brand Name: NUFIBER
Certification: CE FCC Rohs
Model Number: SFP-10G-SR

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Packaging Details: 10pcs/plastic bag, 500pcs/carton
Delivery Time: Within 1-3 work days
Payment Terms: L/C, T/T, Western Union,Credit Card
Supply Ability: 10,000 pcs per month
Get Best Price Contact Now

Detail Information

Data Rate: 10Gb/s Wavelength: 850nm
Distance: 300m Connector: LC
DDM: Support Fiber Type: Multi Mode Duplex LC
Power Supply: 3.3V Working Temperature: 0~70℃
Warranty: 1 Year Compatibility: Huawei, Cisco, HP, H3C...
Manufacturer: Yes
High Light:

SX Multimode 10G SFP+ SR Transceiver

,

LC DOM 10G SFP+ SR Transceiver

,

850nm 300m 10G SFP+ Transceiver

Product Description

10G SFP+ SR Transceiver 10G SX Multimode 850nm 300m LC DOM SFP compatible with Cisco/Hauwe/H3C/Juniper

Description

NuFiber's SFP+-10GB-SR is a very compact 10Gb/s optical transceiver module for serial optical communication applications at 10Gb/s. The SFP+-10GB-SR converts a 10Gb/s serial electrical data stream to 10Gb/s optical output signal and a 10Gb/s optical input signal to 10Gb/s serial electrical data streams. The high speed 10Gb/s electrical interface is fully compliant with SFI specification.

The high performance 850nm VCSEL transmitter and high sensitivity PIN receiver provide superior performance for Ethernet applications at up to 300m links.



The SFP+ Module compliants with SFF-8431, SFF-8432 and IEEE 802.3ae 10GBASE-SR. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.

The fully SFP compliant form factor provides hot pluggability, easy optical port upgrades and low EMI emission.



Features

  • Supports 9.95 to 11.3Gb/s bit rates
  • Hot-Pluggable
  • Duplex LC connector
  • 850nm VCSEL transmitter, PIN photo-detector
  • MMF links up to 300m
  • 2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface
  • Power Supply :+3.3V
  • Power consumption<1W
  • Temperature Range: 0~ 70°C
  • RoHS compliant



Applications

  • 10GBASE-SR/SW Ethernet
  • SONET OC-192 / SDH
  • 10G Fibre Channel



Optical Parameters



Parameter Symbol Min. Typical Max. Unit Note
Transmitter Section:
Center Wavelength λt 840 850 860 nm
RMS spectral width λRMS     4 nm
Average Optical Power Pavg -7.3   -1 dBm 1
Optical Power OMA Poma   -1.5   dBm
Laser Off Power Poff     -30 dBm
Extinction Ratio ER 3.5     dB
Transmitter Dispersion Penalty TDP     3.9 dB 2
Relative Intensity Noise Rin     -128 dB/Hz 3
Optical Return Loss Tolerance   20     dB
Receiver Section:
Center Wavelength λr 840   860 nm
Receiver Sensitivity (OMA) Sen     -11.1 dBm 4
Stressed Sensitivity (OMA) SenST     -7.5 dBm 4
Los Assert LOSA -30   - dBm
Los Dessert LOSD     -12 dBm
Los Hysteresis LOSH 0.5     dB
Overload Sat 0     dBm 5
Receiver Reflectance Rrx     -12 dB


















































Products Show

Compatible With Cisco / Hauwe / H3C / Juniper 10G SFP+ SR Transceiver SX Multimode 0Compatible With Cisco / Hauwe / H3C / Juniper 10G SFP+ SR Transceiver SX Multimode 1Compatible With Cisco / Hauwe / H3C / Juniper 10G SFP+ SR Transceiver SX Multimode 2Compatible With Cisco / Hauwe / H3C / Juniper 10G SFP+ SR Transceiver SX Multimode 3Compatible With Cisco / Hauwe / H3C / Juniper 10G SFP+ SR Transceiver SX Multimode 4Compatible With Cisco / Hauwe / H3C / Juniper 10G SFP+ SR Transceiver SX Multimode 5

Packaging & Shipping



Compatible With Cisco / Hauwe / H3C / Juniper 10G SFP+ SR Transceiver SX Multimode 6



Compatible With Cisco / Hauwe / H3C / Juniper 10G SFP+ SR Transceiver SX Multimode 7



Factory Show

Compatible With Cisco / Hauwe / H3C / Juniper 10G SFP+ SR Transceiver SX Multimode 8
