| MOQ: | 1 pieces |
| Standard Packaging: | 1 piece/packing box with spongy filler, 20pcs per standard export carton |
| Delivery Period: | 1~2 work days for sample order |
| Payment Method: | Western Union, T/T, L/C |
| Supply Capacity: | 1000 pcs per week |
16*1000Mbps UTP RJ45 Unmanaged Industrial Switch Din Rail Type
Unmanaged Industrial Ethernet Switch 16*1000Mbps UTP RJ45 Ports Din Rail Network Switch
Description
NuFiber’s NF5016G Industrial Ethernet witch,With 8 Port 10/100/1000Mbps Ethernet ports ,for connecting with devices like computer, switch, hub, server, etc, as well as powering network camera, industrial VoIP phone, wireless AP and other devices. Specially designed for harsh outdoor applications. Its 3KV network port surge protection can adapt to harsh outdoor environment and ensure the reliability of the uninterrupted PoE system. Power input also chooses industry-standard types of power.
Features
• 16 Port 10/100/1000Mbps RJ45 with Auto Uplink™ .
• Automatic MAC address learning and aging
• Automatically support IGMP (Multicasting)
• 10/100/1000Mbps Auto-negotiation , auto-MDI-MDI-X
• LED indicators for monitoring power/link/activity
• Supports 10/100/1000Mbps-Full/Half-duplex
• Supports Wall-mount and DIN-Rail installation for lightning protection
• Supports Daisy-Chain connection
• Supports Broadcast Storm Control
• Super lightening protection, IP40 protection.
• Excellent heat elimination without cooling fan.
• Redundant dual DC power inputs.
• Redundant Power Inputs
• Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe City.
• Harsh industrial environment or higher requirement
• -40℃-85℃ operating temperature range.
• 3-Year Warranty
Technical Specification
| Model No. | NF5016G |
| 10/100/1000BASE-TX Port | 16 port RJ-45 auto-MDI / MDI-X |
|
Performance Specification |
Bandwidth: 56Gbps Packet Buffer Memory:12Mbit Packet Forwarding Rate: 42Mpps MAC Address Table: 8K |
| Installation | DIN rail |
| Maximum Frame Size | 9000bytes packet size |
| Flow Control | Back pressure for half duplex, IEEE 802.3x pause frame for full duplex |
| Enclosure | IP40 aluminum housing |
|
LED Indicator |
Power: Red Ethernet: Yellow POE: Green |
| Power Input | 12 to 52V DC redundant power |
| Power Consumption | < 10 watts |
| Surge protection | ±4KV |
|
Network Protocols |
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x; |
| Network cables |
10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤10meter) 1000BASE-TX: Cat6 or later UTP(≤100 meter) |
|
Industry Standard |
FCC CFR47 Part 15,EN55022/CISPR22, Class A IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air) IEC61000-4-3 (RS): 10V/m (80~1000MHz) IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz) IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s) |
| MTBF | >300,000hours |
| Certification | CE FCC Rohs compliance |
| Dimensions (W x D x H) | 179 x 134 x 46 mm |
| Weight |
Product Weight: 0.6KG Packing Weight: 0.7KG |
|
Working Environment
|
Working temperature: -40～85℃ ; Storage temperature: -40～85℃ Relative Humidity: 5%~95 %( no condensation) |
| Warranty | 3 Years |

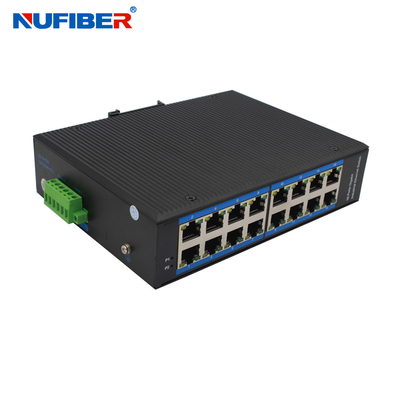

Product Picture
Packing & Shipping
Welcome to send us inquiry for this products ! 24/7days services online !
|
|
