IP40 UTP Port Industrial SFP Switch Din Rail Mount 24V Gigabit
Product Details:
| Place of Origin: | China |
| Brand Name: | NUFIBER |
| Certification: | CE |
| Model Number: | NF518G-SFP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pieces |
|---|---|
| Packaging Details: | 1 piece/packing box with spongy filler, 20pcs per standard export carton |
| Delivery Time: | 1~2 work days for sample order |
| Payment Terms: | Western Union, T/T, L/C |
| Supply Ability: | 1000 pcs per week |
|
Detail Information |
|||
| Fiber Type: | SFP Slot | Connector: | SC/FC/ST ; LC (SFP Port) Optional |
|---|---|---|---|
| Working Temp.: | -40 ~ +85℃ | Warranty: | 3 Years |
| Material: | Aluminum Alloy | Installation: | DIN-rail Type |
| Protection Grade: | IP40 | Interface: | 8 Rj45 +1 SFP Port |
| Transmission Speed: | 10/100/1000Mbps | Power Supply: | DC12~48V (POE: DC48~57V) |
| High Light: | UTP Port Industrial SFP Switch,IP40 Industrial SFP Switch,IP40 SFP Din Rail Network Switch |
||
Product Description
IP40 UTP Port Industrial SFP Switch Din Rail Mount 24V Gigabit
Din Rail Mount 24V Gigabit SFP Ethernet Swtich SFP to 8 *1000M UTP Port Industrial SFP Switch
Overview
NuFiber’s NF518G-SFP Industrial Ethernet switch, With 8 Port 10/100/1000M Ethernet ports and 1 port 1000Mbps SFP Slot, for connecting with devices like computer,switch, hub, server, etc, as well as powering network camera, industrial VoIP phone, wireless AP and other devices.
Specially designed for harsh outdoor applications. Its 3KV network port surge protection can adapt to harsh outdoor environment and ensure the reliability of the uninterrupted PoE system. Power input also chooses industry-standard types of power.
Features
• 8 Port 10/100/1000Mbps RJ45 with Auto Uplink™ , 1 port 1000Mbps SFP Slot.
• Automatic MAC address learning and aging
• Automatically support IGMP (Multicasting)
• 10/100/1000Mbps Auto-negotiation , auto-MDI-MDI-X
• LED indicators for monitoring power/link/activity
• Supports 10/100/1000Mbps-Full/Half-duplex
• Supports Wall-mount and DIN-Rail installation for lightning protection
• Supports Daisy-Chain connection
• Supports Broadcast Storm Control
• Super lightening protection, IP40 protection.
• Excellent heat elimination without cooling fan.
• Redundant dual DC power inputs.
• Redundant Power Inputs
• Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe City.
• Harsh industrial environment or higher requirement
• -40℃-85℃ operating temperature range.
• 3-Year Warranty
Technical Specification
| Product Name | 8 Port 10/100/1000Base Industrial Ethernet Switch |
| Product Model | NF518G-SFP |
| Interface | 8x 10/100/1000Base-T RJ45 port + 1x 1000Mbps SFP |
| Network Protocols | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX; |
| IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x; | |
| Network Media | 10BASE-T: Cat3,4,5 UTP(≤100 meter) |
| 100BASE-TX: Cat5 or later UTP(≤100 meter) | |
| 1000BASE-TX: Cat6 or later UTP(≤100 meter) | |
| Fiber Media |
Multi-mode: 2KM Single-mode: 20/40/60/80KM |
| Performance Specification | Bandwidth: 20Gbps |
| Packet Buffer Memory: 2M | |
| Packet Forwarding Rate:148800pps/port | |
| MAC Address Table: 16K | |
| Forwarding Mode | Store-and-Forward |
| Protection | Lightening protection, IP40 protection |
| LED Indicators | Power: PWR; Link; Link/Act |
| Power Supply | Input Power: 2x10~57VDC (Terminal Block) |
| Other Specifications |
| Working Environment | Working temperature: -40～85℃ ; Storage temperature: -45～85℃ |
| Relative Humidity: 5%~95 %( no condensation) | |
| Industry Standard | FCC CFR47 Part 15,EN55022/CISPR22, Class A EMS: |
| IEC61000-4-2 (ESD): ±8kV (contact), ±15kV (air) | |
| IEC61000-4-3 (RS): 10V/m (80MHz-2GHz) | |
| IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV | |
| IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV | |
| IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz) | |
| IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s) | |
| Shell | IP40 protect grade, metal shell |
| Installation | DIN-Rail or Wall mounts |
| Packing List | 1×Industrial Ethernet Switch (plus terminal block) |
| 1×User Manual/Certificate of quality/Warranty card | |
| 1×DIN-Rail mounting kit | |
| Certification | CE mark, commercial; FCC Part 15 Class B; VCCI Class B |
| EN 55022 (CISPR 22), Class B | |
| MTBF | 300,000 hours |
| Weight & Size | Product Weight: 0.355KG |
| Packing Weight: 0.875 KG | |
| Product size (L×W×H): 143.5mm× 130mm× 47mm | |
| Packing size(L×W×H): 286mm x 230mm x 60mm | |
| Warranty | 3-years |

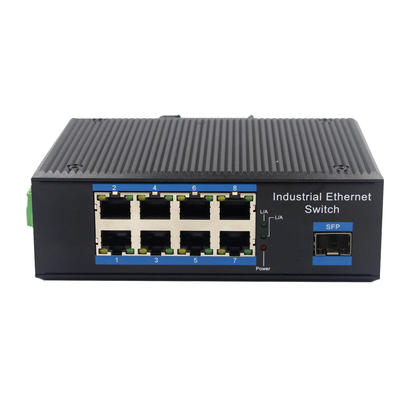

Product Picture
Packing & Shipping
Welcome to send us inquiry for this products ! 24/7days services online !
