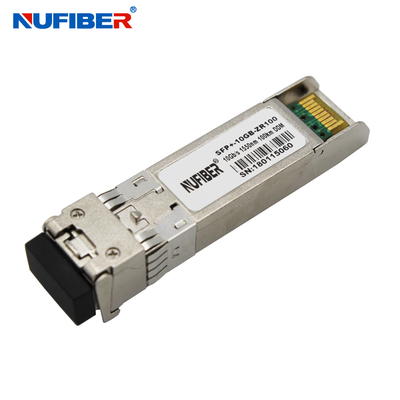

10G SFP+ ZR Optical Transceiver Singlemode LC Compatible With Network Switches

10G SFP+ ZR Optical Transceiver Singlemode LC Compatible With Network Switches

MOQ: 1 piece
Standard Packaging: 10pcs/plastic bag, 500pcs/carton
Delivery Period: Within 1-3 work days
Payment Method: L/C, T/T, Western Union,Credit Card
Supply Capacity: 10,000 pcs per month
Detail Information
Place of Origin
China
Brand Name
NUFIBER
Certification
CE FCC Rohs
Model Number
SFP+-10GB-ZR100
Data Rate:
10Gb/s
Wavelength:
1550nm
Distance:
100km
Connector:
LC
DDM:
Support
Fiber Type:
Single Mode Duplex LC
Power Supply:
3.3V
Working Temperature:
0~70℃
Warranty:
3 Years
Compatibility:
Huawei, Cisco, HP, H3C...
Manufacturer:
Yes
Highlight:

10G SFP+ ZR Optical Transceiver

,

Singlemode 10G Optical Transceiver

,

10G SFP+ Transceiver 1550nm

Product Description

10G SFP+ ZR Optical Transceiver 10G Singlemode SFP 1550nm 100km LC Compatible With Network Switches

10G SFP+ ZR Optical Transceiver 10G Singlemode SFP 1550nm 100km LC

Description

NUFIBER's SFP+-10GB-ZR100 is a very compact 10Gb/s optical transceiver module for serial optical communication applications at 10Gb/s. The SFP+-10GB-ZR100 converts a 10Gb/s serial electrical data stream to 10Gb/s optical output signal and a 10Gb/s optical input signal to 10Gb/s serial electrical data streams. The high speed 10Gb/s electrical interface is fully compliant with SFI specification.

The high performance 1550nm cooled EML transmitter and high sensitivity APD receiver provide superior performance for Ethernet applications at up to 100km links.



The SFP+ Module compliants with SFF-8431, SFF-8432 and IEEE 802.3ae 10GBASE-ZR. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.

The fully SFP compliant form factor provides hot pluggability, easy optical port upgrades and low EMI emission.



Features

  • Supports 9.95 to 11.3Gb/s bit rates
  • Hot-Pluggable
  • Duplex LC connector
  • 1550nm cooled EML transmitter, PIN photo-detector
  • SMF links up to 100km
  • 2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface
  • Power Supply :+3.3V
  • Power consumption<1W
  • Temperature Range: 0~ 70°C
  • RoHS compliant



Applications



10GBASE-ZR/ZW Ethernet

SONET OC-192 / SDH

10G Fibre Channel



Optical Parameters


Parameter Symbol Min. Typical Max. Unit Note
Transmitter Section:
Center Wavelength λt 1530 1550 1565 nm
spectral width △λ     0.3 nm
Average Optical Power Pavg 0   +5 dBm 1
Optical Power OMA Poma -2.1     dBm
Laser Off Power Poff     -30 dBm
Extinction Ratio ER 8.2     dB
Transmitter Dispersion Penalty TDP     3.0 dB 2
Relative Intensity Noise Rin     -128 dB/Hz 3
Optical Return Loss Tolerance   21     dB
Receiver Section:
Center Wavelength λr 1260   1600 nm
Receiver Sensitivity Sen     -23 dBm 4
Stressed Sensitivity (OMA) SenST     -21 dBm 4
Los Assert LOSA -34   - dBm
Los Dessert LOSD     -24 dBm
Los Hysteresis LOSH 0.5     dB
Overload Sat -7     dBm 5
Receiver Reflectance Rrx     -26 dB
















































Ordering information

Dual Fiber SFP Transceiver
Part Number Product Description
155Mbp/s SFP Transceiver
FE-SX-MM850 155Mbps, 850nm MM 2km Dual LC, DDM 0°C~+70°C
FE-SX-MM1310 155Mbps, 1310nm MM 2km Dual LC, DDM 0°C~+70°C
FE-LX20-SM1310 155Mbps, 1310nm SM 20km Dual LC, DDM 0°C~+70°C
FE-LX40-SM1310 155Mbps, 1310nm SM 40km Dual LC, DDM 0°C~+70°C
FE-LX80-SM1550 155Mbps, 1550nm SM 80km Dual LC, DDM 0°C~+70°C
FE-LX120-SM1550 155Mbps, 1550nm SM 120km Dual LC, DDM 0°C~+70°C
1.25Gbps SFP Transceiver
GE-SX-MM850 1.25Gbps, 850nm MM 500m Dual LC, DDM 0°C~+70°C
GE-SX-MM1310 1.25gbps, 1310nm MM 2km Dual LC, DDM 0°C~+70°C
GE-LX20-SM1310 1.25Gbps, 1310nm SM 20km Dual LC, DDM 0°C~+70°C
GE-LX40-SM1310 1.25Gbps, 1310nm SM 40km Dual LC, DDM 0°C~+70°C
GE-LX60-SM1550 1.25Gbps, 1550nm SM 60km Dual LC, DDM 0°C~+70°C
GE-LX80-SM1550 1.25Gbps, 1550nm SM 80km Dual LC, DDM 0°C~+70°C
GE-LX120-SM1550 1.25Gbps, 1550nm SM 120km Dual LC, DDM 0°C~+70°C
10Gbps SFP Transceiver
SFP+-10GB-SR 10G SFP+ SR Multi mode dual fiber LC 850nm 300M
SFP+-10GB-LRM 10G SFP+ LRM Multi mode dual fiber LC 1310nm 220M
SFP+-10GB-LR 10G SFP+ LR Single mode dual fiber LC 1310nm 20km
SFP+-10GB-ERM 10G SFP+ER Single mode dual fiber LC 1310nm 40km
SFP+-10GB-ER 10G SFP+ER Single mode dual fiber LC 1550nm 40km
SFP+-10GB-ZR 10G SFP+ZR Single mode dual fiber LC 1550nm 80km
SFP+-10GB-ZR100 10G SFP+ZR100 Single mode dual fiber LC 1550nm 100km
SFP+10G40-CWDM 1470 ~1610nm CWDM SFP+ 40km
SFP+10G80-CWDM 1470~1570nm CWDM SFP+ 80km
SFP+10G80-CWDM 1590~1610nm CWDM SFP+ 80km
SFP+10G40-DWDM DWDM SFP+ 40km
SFP+10G80-DWDM DWDM SFP+ 80km
XFP Transceiver
XFP-10G-SR 10G XFP SR Multi mode dual fiber LC 850nm 300M
XFP-10G-LRM 10G XFP LRM Single mode dual fiber LC 1310nm 10kM
XFP-10G-LR 10G XFP LR Single mode dual fiber LC 1310nm 20km
XFP-10G-ER 10G XFP ER Single mode dual fiber LC 1550nm 40km
XFP-10G-ZR 10G XFP ZR Single mode dual fiber LC 1550nm 80km
CWDM DWDM Transceiver
XFP-CWDM-40xx 1470 ~1610nm CWDM XFP 40km
XFP-CWDM-80xx 1470~1570nm CWDM XFP 80km
XFP-CWDM-80xx 1590~1610nm CWDM XFP 80km
XFP-DWDM-40xx DWDM XFP 40km
XFP-DWDM-80xx DWDM XFP 80km
XFP-DWDM-100xx DWDM XFP100km


Products Show

10G SFP+ ZR Optical Transceiver Singlemode LC Compatible With Network Switches 010G SFP+ ZR Optical Transceiver Singlemode LC Compatible With Network Switches 110G SFP+ ZR Optical Transceiver Singlemode LC Compatible With Network Switches 210G SFP+ ZR Optical Transceiver Singlemode LC Compatible With Network Switches 310G SFP+ ZR Optical Transceiver Singlemode LC Compatible With Network Switches 410G SFP+ ZR Optical Transceiver Singlemode LC Compatible With Network Switches 510G SFP+ ZR Optical Transceiver Singlemode LC Compatible With Network Switches 6

Packaging & Shipping

10G SFP+ ZR Optical Transceiver Singlemode LC Compatible With Network Switches 7



10G SFP+ ZR Optical Transceiver Singlemode LC Compatible With Network Switches 8



Factory Show

10G SFP+ ZR Optical Transceiver Singlemode LC Compatible With Network Switches 9
