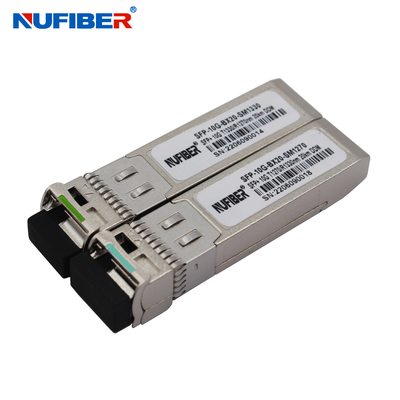

Simplex 1270nm 1330nm 10km 10G SFP+ Module LC DOM WDM SFP+ Transceiver 20km

Simplex 1270nm 1330nm 10km 10G SFP+ Module LC DOM WDM SFP+ Transceiver 20km

Product Details:

Place of Origin: China
Brand Name: NUFIBER
Certification: CE FCC
Model Number: SFP-10G-BX20-SM1270/1330

Payment & Shipping Terms:

Minimum Order Quantity: 1 pair
Price: USD99~135 per pair
Packaging Details: 10pcs/plastic bag, 200pcs/carton
Delivery Time: 1-3 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10,000 pcs per month
Get Best Price Contact Now

Detail Information

Product Name: 10Gb/s SFP+ Module Wavelength: 1330nm/1270nm
Distance: 20KM Connector: LC Interface
DDM: Support Fiber Type: Single Mode Single Fiber
Power Supply: 3.3V Working Temperature: 0~70℃
Warranty: 1years Compatible: Any Brand
Manufacturer: Yes
High Light:

1330nm 10G SFP+ Module

,

WDM 10G SFP+ Module

,

10km 10G SFP+ Transceiver

Product Description

10G SFP+ Module Simplex 1270nm/1330nm 10km LC DOM 10G WDM SFP+ Transceiver 20km

Description:

NuFiber SFP-10G-BX20-SM1270 & SFP-10G-BX20-SM1330 Bi-directional 10Gb/s (SFP+) transceivers are compliant with the current SFP+ Multi-Source Agreement (MSA) Specification. They comply with 10GBASE-LR/LW Ethernet, SONET OC-192 / SDH and 10G Fiber Channel 1200-SM-LL-L. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the SFP+ MSA.



Features:



Supports 9.95Gb/s to 11.3Gb/s bit rates

Hot-pluggable SFP+ footprint

Single LC for Bi-directional Transmission

Maximum link length of 20km

Built-in 1270/1330 WDM Filter

Uncooled 1270nm or 1330nm CWDM DFB Laser.

Power dissipation <1.5W

No Reference Clock required

Built-in digital diagnostic functions

Temperature range 0°C to 70°C

Very low EMI and excellent ESD protection

RoHS Compliant Part





Applications:

10GBASE-LR/LW Ethernet

SONET OC-192 / SDH

10G Fiber Channel



Optical Parameters:







Parameter Symbol Min Typ Max Unit Ref.
Transmitter
Bit Rate BR 9.9   11.3 Gb/s
Optical Wavelength SFP-10G-BX20-SM1270 λ 1260 1270 1280 nm
SFP-10G-BX20-SM1330   1320 1330 1340
Average output power Po -2   3 dBm
Optical Extinction Ratio ER 3.5     dB
Spectral width Δλ     1 nm
Side Mode Suppression Ratio SMSR 30     dB
Optical Eye Mask   Compliant with IEEE802.3ae
Receiver
Bit Rate BR 9.9   11.3 Gb/s
Optical Wavelength SFP-10G-BX20-SM1270 λ 1320 1330 1340 nm
SFP-10G-BX20-SM1330   1260 1270 1280
Receiver Sensitivity Sen     -14.5 dBm 1
Maximum Input Power PMAX 0     dBm
LOS De-Assert LOSD     -15 dBm
LOS Assert LOSA -25     dBm
LOS Hysteresis LOSH 0.5   4 dB


Ordering information:







BiDi SFP Transmitter
Part Number Product Description
155Mbp/s SFP Transmitter
FE-BX20-SM1310/1550 155Mbps,BiDi 1310nm/1550nm SM 20km LC, DDM 0°C~+70°C
FE-BX40-SM1310/1550 155Mbps, BiDi 1310nm/1550nm SM 40km LC, DDM 0°C~+70°C
FE-BX80-SM1310/1550 155Mbps, BiDi 1310nm/1550nm SM 80km LC, DDM 0°C~+70°C
FE-BX100-SM1310/1550 155Mbps, BiDi 1310nm/1550nm SM 120km LC, DDM 0°C~+70°C
1.25Gbps SFP Transmitter
GE-BX10-SM1310/1550 1.25Gbps, BiDi 1310nm/1550nm SM 10km LC,DDM 0°C~+70°C
GE-BX20-SM1310/1550 1.25Gbps, BiDi 1310nm/1550nm SM 20km LC, DDM 0°C~+70°C
GE-BX40-SM1310/1550 1.25Gbps, BiDi 1310nm/1550nm SM 40km LC, DDM 0°C~+70°C
GE-BX60-SM1310/1550 1.25Gbps, BiDi 1310nm/1550nm SM 60km LC, DDM 0°C~+70°C
GE-BX80-SM1310/1550 1.25Gbps, BiDi 1310nm/1550nm SM 80km LC, DDM 0°C~+70°C
GE-BX100-SM1310/1550 1.25Gbps, BiDi 1310nm/1550nm SM 120km LC, DDM 0°C~+70°C
10Gbps SFP+ Transmitter
SFP-10G-BX20-SM1330/1270 10Gbps, BiDi 1330nm/1270nm SM 20km LC,DDM 0°C~+70°C
SFP-10G-BX40-SM1330/1270 10Gbps, BiDi 1330nm/1270nm SM 40km LC,DDM 0°C~+70°C
SFP-10G-BX60-SM1330/1270 10Gbps, BiDi 1330nm/1270nm SM 60km LC,DDM 0°C~+70°C
SFP-10G-BX80-SM1490/1550 10Gbps, BiDi 1490nm/1550nm SM 80km LC,DDM 0°C~+70°C



Products Show:

Simplex 1270nm 1330nm 10km 10G SFP+ Module LC DOM WDM SFP+ Transceiver 20km 0

Simplex 1270nm 1330nm 10km 10G SFP+ Module LC DOM WDM SFP+ Transceiver 20km 1

Simplex 1270nm 1330nm 10km 10G SFP+ Module LC DOM WDM SFP+ Transceiver 20km 2

Simplex 1270nm 1330nm 10km 10G SFP+ Module LC DOM WDM SFP+ Transceiver 20km 3

Simplex 1270nm 1330nm 10km 10G SFP+ Module LC DOM WDM SFP+ Transceiver 20km 4

Simplex 1270nm 1330nm 10km 10G SFP+ Module LC DOM WDM SFP+ Transceiver 20km 5

Simplex 1270nm 1330nm 10km 10G SFP+ Module LC DOM WDM SFP+ Transceiver 20km 6

Packing:

Simplex 1270nm 1330nm 10km 10G SFP+ Module LC DOM WDM SFP+ Transceiver 20km 7

Shipping:



Simplex 1270nm 1330nm 10km 10G SFP+ Module LC DOM WDM SFP+ Transceiver 20km 8
