1270 / 1330nm TX RX 20km 10G SFP Module , WDM Single Mode 10G SFP Bidi Transceiver
Product Details:
| Place of Origin: | China |
| Brand Name: | NUFIBER |
| Certification: | CE FCC |
| Model Number: | SFP-10G-BX20-SM1270/1330 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pair |
|---|---|
| Price: | USD99~135 per pair |
| Packaging Details: | 10pcs/plastic bag, 200pcs/carton |
| Delivery Time: | 1-3 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10,000 pcs per month |
|
Detail Information |
|||
| Product Name: | 10Gb/s SFP+ Module | Wavelength: | 1330nm/1270nm |
|---|---|---|---|
| Distance: | 20KM | Connector: | LC Interface |
| DDM: | Support | Fiber Type: | Single Mode Single Fiber |
| Power Supply: | 3.3V | Working Temperature: | 0~70℃ |
| Warranty: | 1years | Compatible: | Any Brand |
| High Light: | 1330nm 10G SFP Module,WDM 10G SFP Module,10G SFP Bidi Transceiver |
||
Product Description
10G SFP+ WDM Single mode 1270/1330nm TX / 1330/1270nm RX 20km 10G SFP Module 10G SFP bidi Transceiver
Description:
NuFiber SFP-10G-BX20-SM1270 & SFP-10G-BX20-SM1330 Bi-directional 10Gb/s (SFP+) transceivers are compliant with the current SFP+ Multi-Source Agreement (MSA) Specification. They comply with 10GBASE-LR/LW Ethernet, SONET OC-192 / SDH and 10G Fiber Channel 1200-SM-LL-L. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the SFP+ MSA.
Features:
- Supports 9.95Gb/s to 11.3Gb/s bit rates
- Hot-pluggable SFP+ footprint
- Single LC for Bi-directional Transmission
- Maximum link length of 20km
- Built-in 1270/1330 WDM Filter
- Uncooled 1270nm or 1330nm CWDM DFB Laser.
- Power dissipation <1.5W
- No Reference Clock required
- Built-in digital diagnostic functions
- Temperature range 0°C to 70°C
- Very low EMI and excellent ESD protection
- RoHS Compliant Part
Applications:
² 10GBASE-LR/LW Ethernet
² SONET OC-192 / SDH
² 10G Fiber Channel
Optical Parameters:
| Parameter | Symbol | Min | Typ | Max | Unit | Ref. | |
| Transmitter | |||||||
| Bit Rate | BR | 9.9 | 11.3 | Gb/s | |||
| Optical Wavelength | SFP-10G-BX20-SM1270 | λ | 1260 | 1270 | 1280 | nm | |
| SFP-10G-BX20-SM1330 | 1320 | 1330 | 1340 | ||||
| Average output power | Po | -2 | 3 | dBm | |||
| Optical Extinction Ratio | ER | 3.5 | dB | ||||
| Spectral width | Δλ | 1 | nm | ||||
| Side Mode Suppression Ratio | SMSR | 30 | dB | ||||
| Optical Eye Mask | Compliant with IEEE802.3ae | ||||||
| Receiver | |||||||
| Bit Rate | BR | 9.9 | 11.3 | Gb/s | |||
| Optical Wavelength | SFP-10G-BX20-SM1270 | λ | 1320 | 1330 | 1340 | nm | |
| SFP-10G-BX20-SM1330 | 1260 | 1270 | 1280 | ||||
| Receiver Sensitivity | Sen | -14.5 | dBm | 1 | |||
| Maximum Input Power | PMAX | 0 | dBm | ||||
| LOS De-Assert | LOSD | -15 | dBm | ||||
| LOS Assert | LOSA | -25 | dBm | ||||
| LOS Hysteresis | LOSH | 0.5 | 4 | dB | |||

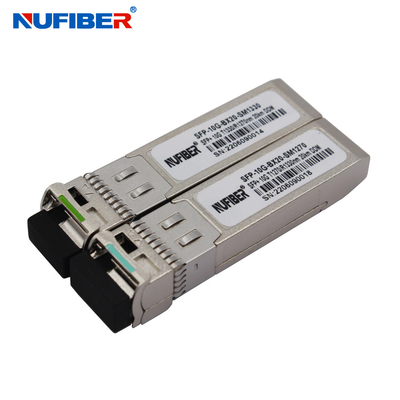

Products Show:
