MOQ: | 1 piece |
Standard Packaging: | 10pcs/plastic bag, 500pcs/carton |
Delivery Period: | Within 1-3 work days |
Payment Method: | L/C, T/T, Western Union,Credit Card |
Supply Capacity: | 10,000 pcs per month |

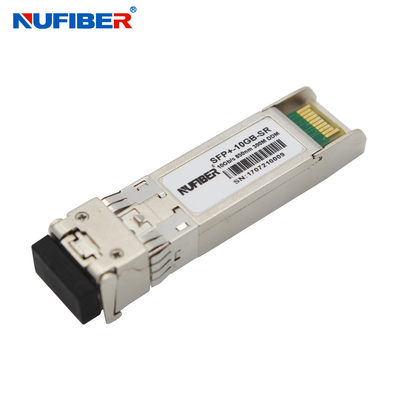

10G SFP+ SR 300m 850nm Fiber Optical Transceiver Module compatible with H3C,MikroTik,Huawei,ZTE
NuFiber's SFP+-10GB-SR is a very compact 10Gb/s optical transceiver module for serial optical communication applications at 10Gb/s. The SFP+-10GB-SR converts a 10Gb/s serial electrical data stream to 10Gb/s optical output signal and a 10Gb/s optical input signal to 10Gb/s serial electrical data streams. The high speed 10Gb/s electrical interface is fully compliant with SFI specification.
The high performance 850nm VCSEL transmitter and high sensitivity PIN receiver provide superior performance for Ethernet applications at up to 300m links.
The SFP+ Module compliants with SFF-8431, SFF-8432 and IEEE 802.3ae 10GBASE-SR. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.
The fully SFP compliant form factor provides hot pluggability, easy optical port upgrades and low EMI emission.
Features
Applications
Optical Parameters
Parameter | Symbol | Min. | Typical | Max. | Unit | Note |
Transmitter Section: | ||||||
Center Wavelength | λt | 840 | 850 | 860 | nm | |
RMS spectral width | λRMS | 4 | nm | |||
Average Optical Power | Pavg | -7.3 | -1 | dBm | 1 | |
Optical Power OMA | Poma | -1.5 | dBm | |||
Laser Off Power | Poff | -30 | dBm | |||
Extinction Ratio | ER | 3.5 | dB | |||
Transmitter Dispersion Penalty | TDP | 3.9 | dB | 2 | ||
Relative Intensity Noise | Rin | -128 | dB/Hz | 3 | ||
Optical Return Loss Tolerance | 20 | dB | ||||
Receiver Section: | ||||||
Center Wavelength | λr | 840 | 860 | nm | ||
Receiver Sensitivity (OMA) | Sen | -11.1 | dBm | 4 | ||
Stressed Sensitivity (OMA) | SenST | -7.5 | dBm | 4 | ||
Los Assert | LOSA | -30 | - | dBm | ||
Los Dessert | LOSD | -12 | dBm | |||
Los Hysteresis | LOSH | 0.5 | dB | |||
Overload | Sat | 0 | dBm | 5 | ||
Receiver Reflectance | Rrx | -12 | dB |
Products Show
Packaging & Shipping
Factory Show
