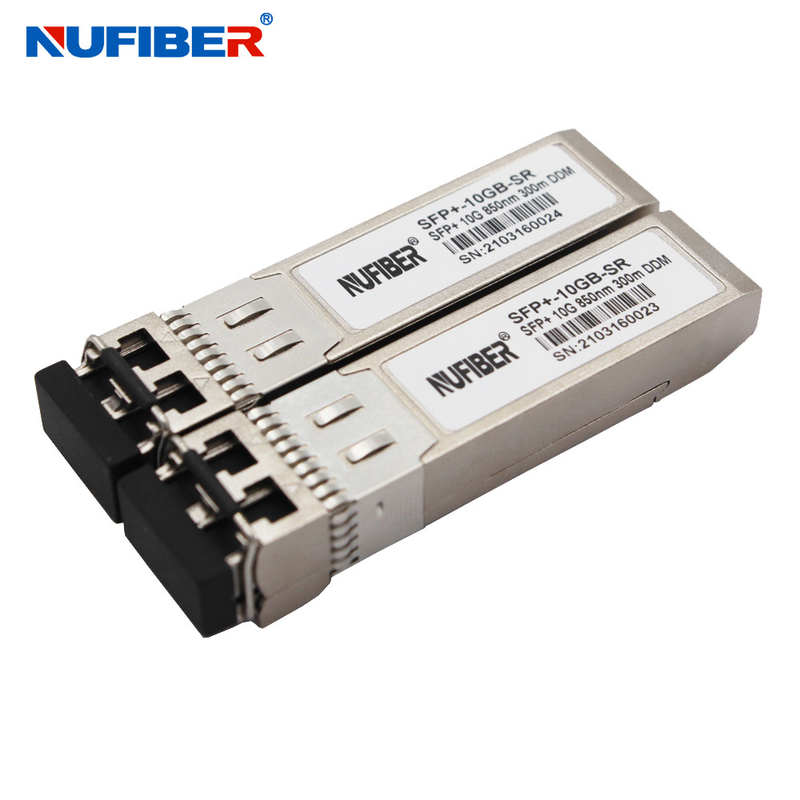

10G SFP+ SR 10G MMF Duplex 850nm 300m LC DDM Optical Transceiver
NuFiber's SFP+-10GB-SR is a very compact 10Gb/s optical transceiver module for serial optical communication applications at 10Gb/s. The SFP+-10GB-SR converts a 10Gb/s serial electrical data stream to 10Gb/s optical output signal and a 10Gb/s optical input signal to 10Gb/s serial electrical data streams. The high speed 10Gb/s electrical interface is fully compliant with SFI specification.
The high performance 850nm VCSEL transmitter and high sensitivity PIN receiver provide superior performance for Ethernet applications at up to 300m links.
The SFP+ Module compliants with SFF-8431, SFF-8432 and IEEE 802.3ae 10GBASE-SR. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.
The fully SFP compliant form factor provides hot pluggability, easy optical port upgrades and low EMI emission.
Features
Applications
Optical Parameters
| Parameter | Symbol | Min. | Typical | Max. | Unit | Note |
| Transmitter Section: | ||||||
| Center Wavelength | λt | 840 | 850 | 860 | nm | |
| RMS spectral width | λRMS | 4 | nm | |||
| Average Optical Power | Pavg | -7.3 | -1 | dBm | 1 | |
| Optical Power OMA | Poma | -1.5 | dBm | |||
| Laser Off Power | Poff | -30 | dBm | |||
| Extinction Ratio | ER | 3.5 | dB | |||
| Transmitter Dispersion Penalty | TDP | 3.9 | dB | 2 | ||
| Relative Intensity Noise | Rin | -128 | dB/Hz | 3 | ||
| Optical Return Loss Tolerance | 20 | dB | ||||
| Receiver Section: | ||||||
| Center Wavelength | λr | 840 | 860 | nm | ||
| Receiver Sensitivity (OMA) | Sen | -11.1 | dBm | 4 | ||
| Stressed Sensitivity (OMA) | SenST | -7.5 | dBm | 4 | ||
| Los Assert | LOSA | -30 | - | dBm | ||
| Los Dessert | LOSD | -12 | dBm | |||
| Los Hysteresis | LOSH | 0.5 | dB | |||
| Overload | Sat | 0 | dBm | 5 | ||
| Receiver Reflectance | Rrx | -12 | dB | |||
Ordering information
| Dual Fiber SFP Transceiver | |
| Part Number | Product Description |
| 155Mbp/s SFP Transceiver | |
| FE-SX-MM850 | 155Mbps, 850nm MM 2km Dual LC, DDM 0°C~+70°C |
| FE-SX-MM1310 | 155Mbps, 1310nm MM 2km Dual LC, DDM 0°C~+70°C |
| FE-LX20-SM1310 | 155Mbps, 1310nm SM 20km Dual LC, DDM 0°C~+70°C |
| FE-LX40-SM1310 | 155Mbps, 1310nm SM 40km Dual LC, DDM 0°C~+70°C |
| FE-LX80-SM1550 | 155Mbps, 1550nm SM 80km Dual LC, DDM 0°C~+70°C |
| FE-LX120-SM1550 | 155Mbps, 1550nm SM 120km Dual LC, DDM 0°C~+70°C |
| 1.25Gbps SFP Transceiver | |
| GE-SX-MM850 | 1.25Gbps, 850nm MM 500m Dual LC, DDM 0°C~+70°C |
| GE-SX-MM1310 | 1.25gbps, 1310nm MM 2km Dual LC, DDM 0°C~+70°C |
| GE-LX20-SM1310 | 1.25Gbps, 1310nm SM 20km Dual LC, DDM 0°C~+70°C |
| GE-LX40-SM1310 | 1.25Gbps, 1310nm SM 40km Dual LC, DDM 0°C~+70°C |
| GE-LX60-SM1550 | 1.25Gbps, 1550nm SM 60km Dual LC, DDM 0°C~+70°C |
| GE-LX80-SM1550 | 1.25Gbps, 1550nm SM 80km Dual LC, DDM 0°C~+70°C |
| GE-LX120-SM1550 | 1.25Gbps, 1550nm SM 120km Dual LC, DDM 0°C~+70°C |
| 10Gbps SFP Transceiver | |
| SFP+-10GB-SR | 10G SFP+ SR Multi mode dual fiber LC 850nm 300M |
| SFP+-10GB-LRM | 10G SFP+ LRM Multi mode dual fiber LC 1310nm 220M |
| SFP+-10GB-LR | 10G SFP+ LR Single mode dual fiber LC 1310nm 20km |
| SFP+-10GB-ERM | 10G SFP+ER Single mode dual fiber LC 1310nm 40km |
| SFP+-10GB-ER | 10G SFP+ER Single mode dual fiber LC 1550nm 40km |
| SFP+-10GB-ZR | 10G SFP+ZR Single mode dual fiber LC 1550nm 80km |
| SFP+10G40-CWDM | 1470 ~1610nm CWDM SFP+ 40km |
| SFP+10G80-CWDM | 1470~1570nm CWDM SFP+ 80km |
| SFP+10G80-CWDM | 1590~1610nm CWDM SFP+ 80km |
| SFP+10G40-DWDM | DWDM SFP+ 40km |
| SFP+10G80-DWDM | DWDM SFP+ 80km |
| XFP Transceiver | |
| XFP-10G-SR | 10G XFP SR Multi mode dual fiber LC 850nm 300M |
| XFP-10G-LRM | 10G XFP LRM Single mode dual fiber LC 1310nm 10kM |
| XFP-10G-LR | 10G XFP LR Single mode dual fiber LC 1310nm 20km |
| XFP-10G-ER | 10G XFP ER Single mode dual fiber LC 1550nm 40km |
| XFP-10G-ZR | 10G XFP ZR Single mode dual fiber LC 1550nm 80km |
| CWDM DWDM Transceiver | |
| XFP-CWDM-40xx | 1470 ~1610nm CWDM XFP 40km |
| XFP-CWDM-80xx | 1470~1570nm CWDM XFP 80km |
| XFP-CWDM-80xx | 1590~1610nm CWDM XFP 80km |
| XFP-DWDM-40xx | DWDM XFP 40km |
| XFP-DWDM-80xx | DWDM XFP 80km |
| XFP-DWDM-100xx | DWDM XFP100km |
