| MOQ: | 1 piece |
| Standard Packaging: | 20 pcs per carton |
| Delivery Period: | 3 work days |
| Payment Method: | T/T, Western Union |
| Supply Capacity: | 10000 pcs per month |
10/100/1000Mbps gigabit Power over Ethernet POE injector ieee802.3af/at 30W poe injector 48V-56V
POE Injector poe adapter poe extender single port 30w 60w 90w customized data power over ethernet
General Description
NuFiber® NF-PSE300G series is a Single-Port, Mid-Span IEEE 802.3af/ IEEE802.3at High Power over Ethernet Injector with maximum up to
30 Watts of power output over Ethernet cables.
It is designed specifically to satisfy the growing demand of higher power required network equipments
such as PTZ (Pan, Tilt & Zoom) network cameras, PTZ Speed Dome, color touch-screen / Video and Voice over IP (VoIP) telephones, multi- channel (11a / b / g / n) wireless LAN access points and other Network devices that need higher power to function normally.
This POE High Power Injector is an ideal solution to deliver data and power to network devices directly via the
RJ-45 Port interface without the need of installing extra power outlets and electrical cabling.
Features
► Reduced Installation cost
► Fully IEEE802.3af/IEEE802.3at compliant
►Auto detection and protection of Non standard Ethernet terminals
►Remote power feeding up to 100m
►Plug & Play. No configuration required
►10/ 100/1000 Mbps supported
Parameter
| NF-PSE300G | Single channel PoE injector |
| Interface |
Data: Input Port: 1 x RJ-45 STP PoE: (Data+Power): Output Port:1 x RJ-45 STP Input power socket: 1 |
| Standard |
IEEE802.3i 10 BASE-T, IEEE802.3i 100 BASE-TX, IEEE802.3x flow control IEEE802.3af /IEEE802.3at 15.4/25.5W per port |
| PoE power |
Wiring: Data & Power provided over pairs 1/2&3/6 and 4/5(+) & 7/8(-) Cable: UTP cat.5 or higher Store and forward |
| Processing types | Half-duplex back pressure and IEEE802.3X full-duplex flow control |
| Data rate | 10/100Mbps |
| LED indicator |
System: Power,PoE max. power Per port: Link,speed,PoE active, PoE error |
| Temperature |
Operating Temp.: 0 ~ +50℃ Storage Temp.: -20℃ ~ +70℃ |
| Humidity | 10~90% non-condensing |
| Dimension | 14.5*6.3*4.3mm (L*W*H) |

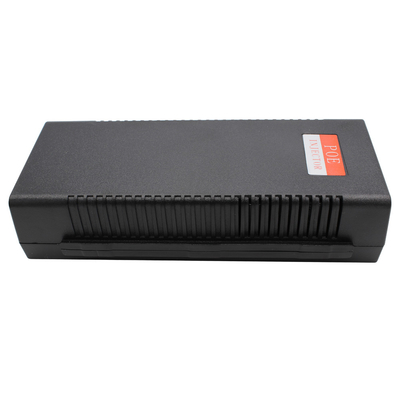

Product Show
Factory Show
CE certification
Shipping method
FAQ
Ordering List
| Part number | Product description |
| NF-PSE300 |
10/100M POE Injector, IEEE802.3af ,15.4W, Input:100-240VAC ; Output: 48-56 Vdc
|
| NF-PSE300G |
10/100/1000M POE Injector, IEEE802.3af/at ,30W,Input:100-240VAC ; Output: 48-56 Vdc
|
| NF-PSE600G |
10/100/1000M POE Injector, IEEE802.3af/at ,60W, Input:100-240VAC ; Output: 48-56 Vdc
|
| NF-PSE900G |
10/100/1000M POE Injector, IEEE802.3af/at ,90W, Input:100-240VAC ; Output: 48-56 Vdc
|
|
|
