DC48V To 5V Industrial Poe Splitter For HD Monitor Transmission

Products

Ethernet over Coaxial Extender

DC48V To 5V Industrial Poe Splitter For HD Monitor Transmission

Name: DC48V To 5V Industrial Poe Splitter For HD Monitor Transmission
Brand: Nufiber
SKU: NF-PS4805
Rating: 4.7 (193 reviews)

MOQ:	10
Standard Packaging:	250pcs/carton,carton size:550340380mm
Delivery Period:	whitn 3~4 working day after payment
Payment Method:	T/T, Western Union
Supply Capacity:	8000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin

China(mainland)

Brand Name

Nufiber

Certification

CE RoHS

Model Number

NF-PS4805

Product Name:

POE Splitter

Color:

Black,white

Data Transfer Rate:

10/100Mbps

Watts:

10W

Standard:

IEEE802.3af

Power Input:

DC 48V

Power Output:

DC5V

OEM&ODM:

Accepted

High Light:

5V Industrial Poe Splitter

poe splitter 5v HD Monitor Transmission

DC48V Industrial Poe Splitter

Product Description

10/100M PoE splitter, DC48V to 5V, IEEE802.3af

Description

For the cost saving and power management purpose, the NF-PS4805 is the ideal IEEE 802.3af Power over Ethernet device that splits the 48V DC over the Ethernet cable into 5V/12V DC power output.
When working with the IEEE 802.3af power source equipment (PSE), the NF-PS4812 frees the device deployment from restrictions of power outlet locations, which eliminates the costs for additional AC wiring and reduces the installation time.

Key feature

Complies with IEEE 802.3af Power over Ethernet, IEEE 802.3/802.3u 10/100Base-TX Ethernet standard
Splits the 48V DC power over RJ-45 Ethernet cable into different DC output
LED indicators for power input indication
Data and power transmission distance up to 100 meters
Adjustable two different output voltage options (5V/2A, 12V/1A) to fit various devices
.Auto-Detect of IEEE 802.3af PoE equipment, protects devices from being damaged by incorrect installation
Works with EIA568, category 5,4-pair cables for 10Base-T or 100Base-TX

Target Industries

HD monitor transmission and power supply
Wireless AP layout transmission and power supply
Network telephone transmission , intelligent house and home system
Intelligent transportation supervisory system(ITS)
High-speed Way supervisory/Tele-Communication System
Security protection system, TV medical treatment
Long-distance Muti-media Schooling, Campus monitoring
Long-distance broadcast television transmission system
High-building Security Protection, Military Tele-Com projects

Specification

Technical parameter list
Product Name	PoE Splitter
Model	NF-PS4812 / NF-PS4805
Description	PoE Splitter (DC Input)
Port Feature	Input: PoE port, Output: DC12/5V Power, RJ45
Media	100Base-TX (≤100, Cat 5 cable)
Protocol	IEEE 802.3i;IEEE 802.3u;IEEE 802.3x Flow Control;IEEE 802.1af DTE Power via MDI
Other Feature	5V/12VDC Adjustable
PoE Port	Power over Ethernet (15.4W)
PoE Standard	15.4Watts output (IEEE802.3af)
PoE Type	Support Both Mid-span and End-Span
PoE Feature	Output Power: 15.4 Watts.
PoE PIN	4/5+,7/8- and 1/2+,3/6-
Environment	Operating temperature: 0 to 55° C Storage temperature: -20 to 75°C
EMI Safety	CE mark,commercial,FCC Part 15 Class B,RoHS
PoE Budget	15.4Watts
Leds	Power, Network, PoE working status
Dimenssion	80x76x25mm (0.15Kg)
After-Sales	One year’ garantee, Lifetime Maintenance
Packing List	PoE Splitter, User manual, Warranty card

Order Information

Product: NF-PS4812 / NF-PS4805
Type:10/100M PoE Splitter,IEEE 802.3af,15.4Watts,5VDC/12VDC output, 10/100M
Power Pin Assignment:Data provided over pairs over 1/2and 3/6 ,Power over spare pairs4/5(+) and 7/8 (-)

Product Show

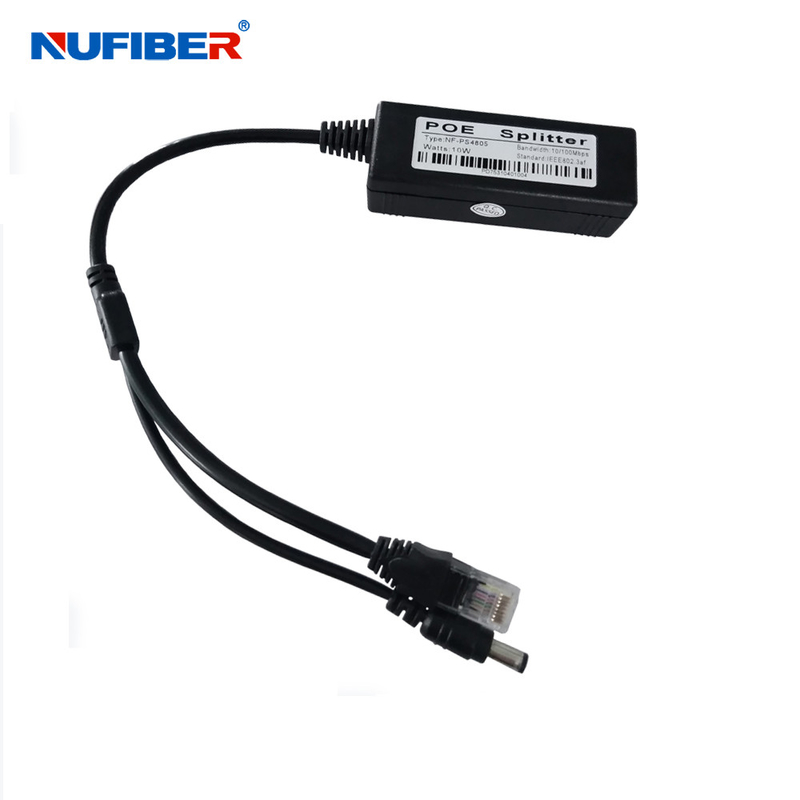

DC48V To 5V Industrial Poe Splitter For HD Monitor Transmission 0

DC48V To 5V Industrial Poe Splitter For HD Monitor Transmission 1

DC48V To 5V Industrial Poe Splitter For HD Monitor Transmission 2

DC48V To 5V Industrial Poe Splitter For HD Monitor Transmission 3

DC48V To 5V Industrial Poe Splitter For HD Monitor Transmission 4

Factory Show

DC48V To 5V Industrial Poe Splitter For HD Monitor Transmission 5

CE certification

Packing& Shipping

DC48V To 5V Industrial Poe Splitter For HD Monitor Transmission 8

FAQ
