RJ45 To BNC Coaxial Media Converter 300 Meters Max For POE Camera
Product Details:
| Place of Origin: | China |
| Brand Name: | NuFiber |
| Certification: | CE FCC ROHS |
| Model Number: | NF-9801-PSE/PD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pair |
|---|---|
| Packaging Details: | 27pcs per caton, carton size: 550*320*320mm |
| Delivery Time: | 1-3 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 pairs per month |
|
Detail Information |
|||
| Material: | Iron Case | Color: | Black |
|---|---|---|---|
| Transmission Media: | Coaxial Cable | Distance: | 300 Meters |
| BNC Port: | 1 | RJ45 Ports: | 1 |
| POE Function: | Support | Power Supply: | 48VDC |
| OEM: | Accepted | Size: | 119mm*113mm*29mm |
| High Light: | RJ45 BNC Ethernet over Coaxial Extender,RJ45 To BNC Coaxial Media Converter,300m Ethernet over Coaxial Extender |
||
Product Description
10/100M 1 BNC port 1 RJ45 port POC Ethernet over Coaxial Converter with POE 300M
Description
Nufiber NF-9801-PSE/PD Ethernet over Coax Extender allows IP cameras to transmit over Coax cabling. It allows the system to extend IP cameras beyond cable distance limitations and also acts as a PoE inserter. The System transmits IP cameras over coax and can quickly turn any ordinary RG59U coaxial cable into a high speed network communication & PoE path. When operating over RG59U coaxial cable, the IP camera extender can operate for distances of up to 200 meters. NF-801E-PSE/PD Ethernet over Coax extender system consists of a transmitter and receiver which require very little installation time & absolutely no set up or configuration.
Features
1. Ethernet over Coax - Converts Ethernet UTP to transmit network data and PoE over standard coax cable.
2. Saves costs and time – Avoids rewiring and expense of traditional Ethernet UTP cable.
3. High data rate – Support 100 Base-T for high network bandwidth requirements of Mega-pixel cameras or multiple IP cameras.
4. Easy to install - No IP or MAC address configuration and other networking setup required.
5. Easy upgrade to IP - Converts existing analog CCTV system over coaxial cable to retrofit analog CCTV installations into IP Digital systems.
6. Extends standard Ethernet – Transmits10/100Base-T up to distances of 200 meters
7. Compatible capability - Fully transparent to Ethernet networks and higher layer protocols.
Parameter
| Interface | 10/100Base-TX IEEE 802.3af(15.4W) RJ45 ×1 BNC×1(Support POE/PSE-PD) |
| Transmission medium | 75-5 coaxial cable, RG59 |
| LED Indicators | PWR(Power supply) M/S(Links/Data) LRE(Trunk Links) POE(Power over Ethernet) L/A(Links/Data) |
| Protocol standard | IEEE 802.3i,IEEE 802.3u,IEEE 802.3x Flow Control,IEEE 802.3af DTE Power via MDI |
| Data rate | 10/100Mbps |
| Transmission distance | 1500M(No POE), 200~300M(with POE) |
| Performance Specification | Store-and-forward |
| Network Latency | Less than 20µs for 64-byte frames in Store and forwardmode for 100Mbps to 100Mbps transmission |
| DC Power input | DC 48V(Peak Value 44~56V) , NF-9801-PD(NF801E-PD) |
| No power, NF-9801-PSE(NF801E-PSE) | |
| Operating environment | Operating temperature; -10℃~ +50℃ Storage temperature: -20℃~ +70℃ Operating humidity: 10%-90% non-condensing |
| Dimension | 118*85*29mm |

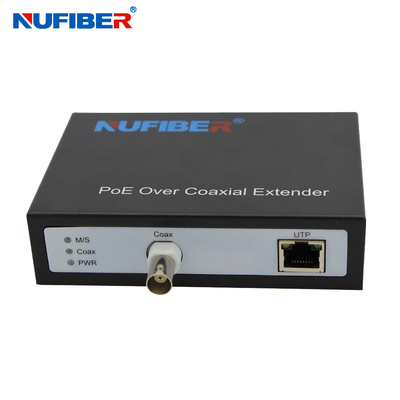

Products Show
Dimensions
Connection Diagram
