| MOQ: | 1 pair |
| Standard Packaging: | 10pairs/carton, carton size: 452*372*297mm |
| Delivery Period: | within 1-3 work days after payment |
| Supply Capacity: | 5000 pairs per week |
NF-9802 IP Ethernet Over Coaxial Extender, 2 Wire Lan Extender with POE Function 0-300meters
Key Feature
1. Ethernet over 2-Wire - Converts Ethernet UTP to transmit network data and PoE over 2-Wire.
2. Saves costs and time – Avoids rewiring and expense of traditional Ethernet UTP cable.
3. High data rate – Support 100 Base-T for high network bandwidth requirements of Mega-pixel cameras or multiple IP cameras.
4. Easy to install - No IP or MAC address configuration and other networking setup required.
5. Easy upgrade to IP - Converts existing analog CCTV system over 2-Wire to retrofit analog CCTV installations into IP Digital systems.
6. Extends standard Ethernet – Transmits10/100Base-T up to distances of 300 meters
7. Compatible capability - Fully transparent to Ethernet networks and higher layer protocols.
Technical Parameter
| Interface | 10/100Base-TX IEEE 802.3af(15.4W) RJ45 ×1 2-Wire×1(Support POE/PSE-PD) |
| Transmission medium | 2-Wire |
| LED Indicators | PWR(Power supply) M/S(Links/Data) LRE(Trunk Links) POE(Power over Ethernet) L/A(Links/Data) |
| Protocol standard | IEEE 802.3i,IEEE 802.3u,IEEE 802.3x Flow Control,IEEE 802.3af DTE Power via MDI |
| Data rate | 10/100Mbps |
| Transmission distance | 1500M(No POE), 0~300M(with POE) |
| Performance Specification | Store-and-forward |
| Network Latency | Less than 20µs for 64-byte frames in Store and forward mode for 100Mbps to 100Mbps transmission |
| DC Power input | DC52V(Peak Value 44~56V) , NF9802-PSE |
| No power, NF9802-PD | |
| Operating environment | Operating temperature; -10℃~ +50℃ Storage temperature: -20℃~ +70℃ Operating humidity: 10%-90% non-condensing |
| Dimension | 118*85*29mm |
Products Description
NNufiber NF-9802 Ethernet over 2-Wire Extender allows IP cameras to transmit over 2-Wire. It allows the system to extend IP cameras beyond cable distance limitations and also acts as a PoE inserter. The System transmits IP cameras over 2-Wire and can quickly turn any ordinary 2-Wire into a high speed network communication & PoE path. When operating over 2-Wire, the IP camera extender can operate for distances of up to 300 meters. NF-9802 Ethernet over 2-Wire extender system consists of a transmitter and receiver which require very little installation time & absolutely no set up or configuration.

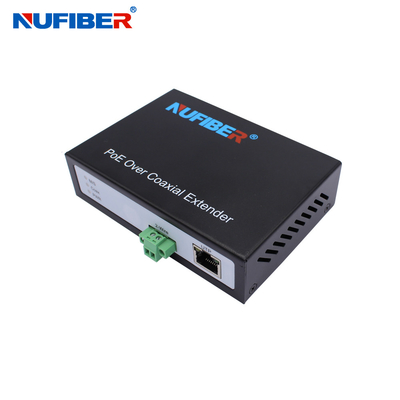

Products Show
Connection Diagram
Packing & Shipping
Factory Show
FAQ
Welcome to send us your inquiry,your any question will be response 24/7.OEM:accept Customization:support.
|
|
