10Gb/s 10m SFP+ Direct Attach Copper Cable Passive / Active DAC

10Gb/s 10m SFP+ Direct Attach Copper Cable Passive / Active DAC

MOQ: 1 piece
Standard Packaging: 1 piece cable be packed into 1 box,
Delivery Period: 2~3 days
Payment Method: T/T, Western Union, L/C
Supply Capacity: 100,000 pcs per month
Detail Information
Place of Origin
China
Brand Name
NuFiber
Certification
CE, RoHS
Model Number
10G-DAC-1M
Data Rate:
10Gb/s
Connector Type:
SFP+ To SFP+
Length:
1m/3m/5m/7m/10m/15m
Material:
Copper Cable
Application:
FTTH FTTB FTTX Network
Wire AWG:
AWG 30 As Default
Power Supply:
3.3V
Work Temp.:
0~70℃
Manufacturer:
YES
Warranty:
1 Years
Highlight:

FTTB Direct Attach Copper Cable

,

10m Direct Attach Copper Cable

,

10Gb/S Direct Attach Cable

Product Description

High Speed 10Gb/s SFP+ Direct Attach Copper cable Passive 10G-DAC-1M
Description
Nufiber’s high speed SFP+ Direct Attach Cable (DAC) provides high performance in 10 Gigabit Ethernet (10GbE) network applications, using an enhanced SFP+ connector to send 10Gbps data through one paired transmitters and receivers over a thin twinax cable. They are compliant with electrical standards SFF-8431, SFF-8083 and mechanical standard SFF-8432, EEPROM standard SFF-8472.


Key Features

  • Support for multi-gigabit data rates up to 10.5Gbps
  • Data rates backward compatible to 1Gbps
  • Hot-pluggable SFP 20PIN footprint
  • I/O Connector designed for high speed differential signal applications
  • Improved Pluggable Form Factor(IPF) compliant for enhanced EMI/EMC performance
  • Compatible with industry standard SFP cages +Switches
  • EEPROM signature can be customized.
  • Low Power Consumption < 0.5W
  • Temperature Range: 0~ 70 °C
  • RoHS-6 Compliant


Application

  • 10G Ethernet
  • InfiniBand, Fiber Channel 4G/8G/10G
  • Sonet Multiplatform support
  • High Performance Computing Clusters
  • High End Servers
  • Metro Network Switch/Cross Connect


Technical Parameter


ParameterSymbolMinTypicalMaxUnit
Operating Case TemperatureStandard Tc02570°C
Storage TemperatureTs-40 85°C
Power Supply VoltageVcc3.133.33.47V
Power DissipationPD  0.5W
Relative HumidityRH5 95%
Data Rate  10.5 Gbps



Test TypeTest ItemTargetReference
Electrical
Characteristics
Differential Mode RL(SDDII)0.01<f<4.1 ; < -12+2*SQRT(f )
4. 1<f<11. 1 ; <-6.3+13*log10(f/5.5)
Where f is in GHz
Measurements units: dB
SFF 8431
Common mode return loss
(SCCII)
0.01<f<2.5 ; <-7+1.6(f )
2.5<f<11.1 ; <-3
Where f is in GHz
Measurements units: dB
SFF 8431
NEXT<-26dB from 1MHz to 11GHz/
Cable assembly Impedence100+/ -100hm
Rise time of 30 ps (20 %- 80 %)
(20%~80 %)
Insertion Loss Deviation-1dB≤ILD≤1dB
300KHz≤f≤6GHz
/
Environmental
Characteristics
Operating Temperature-40~85°CCable operating temp.range
Thermal ShockElectrical performance meet the
specification requirement
EIA-364-32D. Method A.
TC-1. -55 10 85C,100
cycles, 15 min, dwells
Cyclic Temp. & HumidityElectrical performance meet the
specification requirement
EIA-364-31 Method III,Test
Cond A
Salt spray48 hours salt spraying after shell
corrosive area less than 5%
EIA-364-26
Temperature LifePerformance meets the specification requirementEIA-364-17B w/ RH, Damp
heat 85C at 85% RH for 500 hours
Mechanical
Characteristics
MechanicaI VibrationPerformance meets the specification requirementEIA-364-28E.11 TC-VII, Test Cond. D 15minutes in X,Y,Z axis.
Cable Plug Retention in Cage90N Min.No functional damage to cable plug below 90N. Per SFF-8432 Rev 5.0 EIA-455-6B
Cable Retention in Plug90N Min.Clamp and Shock per EIA-364-27B, TC-G, 3times in 6directions, 100g, 6ms
Mechanical ShockPerformance meets the specification requirementSFF-8432 Rev 5.0
Cable plug Insertion18N(Max.)SFF-8432 Rev 5.0
Cable plug extraction12.5N(Max.)EIA-364-09; perform plug cycles Plug and Receptacle mate rate:
Durability50 Time. No evidence of physical damage250times/hour



Ordering Information

Part NumberData RateCable LengthWire GaugeConnectorTemp. Range
10G-DAC-3MUp to 10.5 Gbps3m30AWGActive Copper0-70℃
10G-DAC-5MUp to 10.5 Gbps5m24AWGActive Copper0-70℃
10G-DAC-7MUp to 10.5 Gbps7m24AWGActive Copper0-70℃
10G-DAC-9MUp to 10.5 Gbps9m24AWGActive Copper0-70℃
10G-DAC-10MUp to 10.5 Gbps10m24AWGActive Copper0-70℃
10G-DAC-12MUp to 10.5 Gbps12m24AWGActive Copper0-70℃
10G-DAC-15MUp to 10.5 Gbps15m24AWGActive Copper0-70℃


Product Show

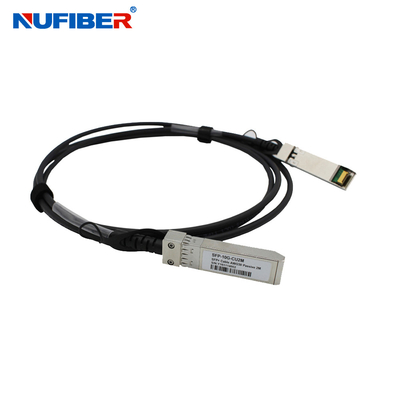

10Gb/s 10m SFP+ Direct Attach Copper Cable Passive / Active DAC 0
