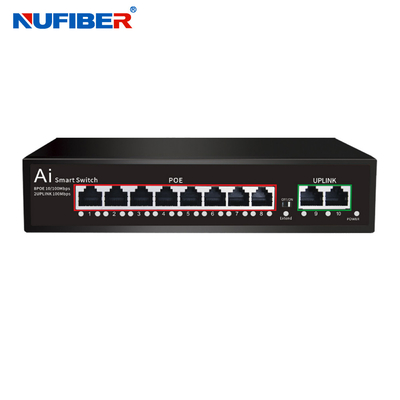

250m Distance 8 Port 10/100 Mbps Smart POE Switch
Product Details:
| Place of Origin: | China |
| Brand Name: | NuFiber |
| Certification: | CE |
| Model Number: | NF-PSE5208 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece |
|---|---|
| Packaging Details: | 20pcs/carton, carton size: 452*372*297mm |
| Delivery Time: | 1-3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000pcs per month |
|
Detail Information |
|||
| Material: | Iron Case | Color: | Black |
|---|---|---|---|
| Data Transfer Rate: | 10/100Mbps | POE Ports: | 8 |
| Uplink Port: | 2 | Standard: | IEEE802.3af/at |
| Total Power: | 72Watts | Power Supply: | Built-in Power 52V/2.3A/120W |
| OEM & ODM: | Accepted | Warranty: | 12months |
| Single POE Port Max: | 30W | ||
| High Light: | 10/100 Mbps Smart POE Switch,250m Smart POE Switch,250m POE Ethernet Switch |
||
Product Description
smart POE Switch 10/100Mbps 8port POE+2Uplink port high speed poe ethernet network switch
Specifications
|
Hardware |
|
|
Standard |
IEEE 802.3 10Base-T |
|
Ports |
8x100M bit Auto-MDIX PoE / PoE+ RJ-45 ports |
|
Data Transfer Rate |
Ethernet: 10/100 Mbps (Half / Full Duplex) |
|
Forwarding Rate |
100 Mbps / 148,800 pps, 10 Mbps / 14,880 pps |
|
Data RAM Buffer |
96 K bytes |
|
Address Table |
2 K MAC entries |
|
Switch Fabric |
1Gbps |
|
Power |
DC:52V 1.38A |
|
Diagnostic LEDs |
Power, PoE, Link / Activity |
|
Power Consumption |
Min: 8 Watts (standby) |
|
Temperature |
Operating: 0° ~ 50°C |
|
Humidity |
Max 90% (non-condensing) |
|
Dimensions |
140 x 91 x 28 mm |
|
Weight |
0.75 kg |
|
PoE |
|
|
Power over Ethernet |
Up to 25.5 watts for PoE |
Features
- 8*10/100mbps POE port,2*10/100mbps UP Link port
- 250m Distance
- Support IEEE802.3AF/AT
- Whole Power:120W(52V 2.3A)
- All port supported by MDI/MDIX auto flip and self negotiation
- Supply 8 10/100Mpbs adaptive high speed forwarding data packet non-lost port.
- Support IEEE802.3x flow control for Full-duplex mode and backpressure for Half-duplex mode.
- Each port max. power supply reached 30W.
Connection Diagram
Product Show
CE certification
Packing Information
Shipping Method
