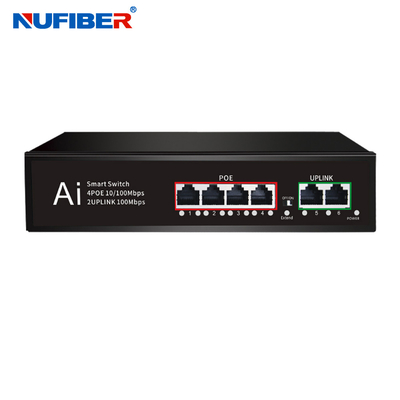

10/100 Mbps 6 Port 30W POE Ethernet Switch With Iron Case
  • name
  • name

10/100 Mbps 6 Port 30W POE Ethernet Switch With Iron Case

MOQ: 1 piece
Standard Packaging: 20pcs/carton, carton size: 452*372*297mm
Delivery Period: 1-3 work days
Payment Method: T/T, Western Union
Supply Capacity: 5000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
NuFiber
Certification
CE
Model Number
NF-PSE5204
Material:
Iron Case
Color:
Black
Data Transfer Rate:
10/100Mbps
POE Ports:
4
Uplink Port:
2
Standard:
IEEE802.3af/at
Total Power:
72Watts
Power Supply:
Built-in Power 52V/1.38A/72W
OEM & ODM:
Accepted
Warranty:
12months
Single POE Port Max:
30W
Highlight:

30W POE Ethernet Switch

,

10/100 Mbps POE Ethernet Switch

,

30W POE Network Switch

Product Description

Switch Poe Good Quality OEM Ethernet Network Switch 6 Ports POE Switch 4POE+2Uplink

Features

  • 4*10/100mbps POE port,2*10/100mbps UP Link port
  • 250m Distance
  • Support IEEE802.3AF/AT
  • Whole Power:72W(52V 1.38A)
  • All port supported by MDI/MDIX auto flip and self negotiation
  • Supply 4 10/100Mpbs adaptive high speed forwarding data packet non-lost port.
  • Support IEEE802.3x flow control for Full-duplex mode and backpressure for Half-duplex mode.
  • Each port max. power supply reached 30W.

Specifications

Hardware

Standard

IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3ab 1000Base-T
IEEE 802.3af Power over Ethernet (PoE)
IEEE 802.3x Flow Control

Ports

4x100M bit Auto-MDIX PoE / PoE+ RJ-45 ports

Data Transfer Rate

Ethernet: 10/100 Mbps (Half / Full Duplex)

Forwarding Rate

100 Mbps / 148,800 pps, 10 Mbps / 14,880 pps

Data RAM Buffer

96 K bytes

Address Table

2 K MAC entries

Switch Fabric

1Gbps

Power

DC:52V 1.38A

Diagnostic LEDs

Power, PoE, Link / Activity

Power Consumption

Min: 8 Watts (standby)
Max: 72 Watts
PoE Max: 60 Watts (4 x 15 watts PoE devices connected

Temperature

Operating: 0° ~ 50°C
Storage: -20° ~ 70°C

Humidity

Max 90% (non-condensing)

Dimensions

140 x 91 x 28 mm

Weight

0.75 kg

PoE

Power over Ethernet

Up to 25.5 watts for PoE
PoE: pin 3,6 for power- and pin 1,2 for power+



Connection Diagram

10/100 Mbps 6 Port 30W POE Ethernet Switch With Iron Case 0

10/100 Mbps 6 Port 30W POE Ethernet Switch With Iron Case 1
Product Show
10/100 Mbps 6 Port 30W POE Ethernet Switch With Iron Case 2
10/100 Mbps 6 Port 30W POE Ethernet Switch With Iron Case 3

CE certification
10/100 Mbps 6 Port 30W POE Ethernet Switch With Iron Case 4

Packing Information

10/100 Mbps 6 Port 30W POE Ethernet Switch With Iron Case 5
Shipping Method
10/100 Mbps 6 Port 30W POE Ethernet Switch With Iron Case 6
