| MOQ: | 1 |
| Standard Packaging: | Packing Size/per boxes:21mm*15.6mm*5.3mm 40 Boxes / carton or As Your Mind |
| Delivery Period: | 3~4working day after payment |
| Payment Method: | T/T, Western Union |
| Supply Capacity: | 8000piece/month |

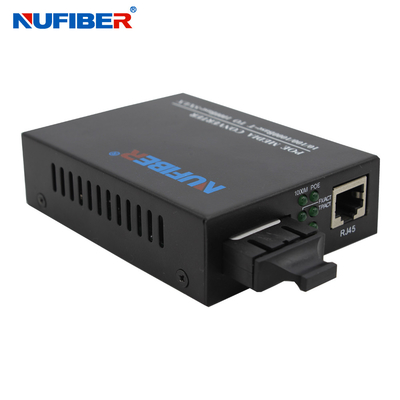

10/100/1000M dual fiber ethernet poe RJ45 to SC media converter SM 20km
Features:
1, Support IEEE802.3 10BASE-T;
IEEE802.3i 10Base-T;IEEE802.3u 100Base-TX/FX;
IEEE802.3ab 1000Base-T;IEEE802.3z 1000Base-X; IEEE802.3af; IEEE802.3at;
2, Support 10/100/1000Mbps half-duplex/full-duplex mode and auto MDI/MDIX;
3, Transmission distance:
Multimode(MM): Up to 0.55KM Max;
Singlemode(SM): Up to 120KM Max；
4, POE power pin: 1/2+,3/6- (Option 4/5+,7/8-)；
5, RJ45 port support direct and cross automatic recognition function (AUTO-MDIX);
6, Fanless design, its own low heat, work stability and durability stronger;
7, Using two dip switches,function are LFP and FCL.
8, Trouble-free working hours (MTBF)> 50,000 hours, in line with carrier-class operating standards;
Specification
| Standard | IEEE802.3i 10BASE-T |
| IEEE802.3u 100BASE-TX | |
| IEEE802.3z 1000BASE-TX | |
| IEEE802.3x Flow Control | |
| IEEE802.3af/at Power over Ethernet | |
| PoE power |
15.4W per port (IEEE802.3af) 30W per port (IEEE802.3at) |
| Wiring: Data & power provided over pairs 1/2 and 3/6 or 4/5(+) and 7/8(-) | |
| Cable: UTP cat.5 or higher | |
| Fiber type | Multi mode(MM): 62.5/125m.50/125m |
| Single mode(SM): 9/125m | |
| Distance | Multi mode & Dual Fiber 550M(850nm); 2km(1310nm) |
| Single mode & Single Fiber:20/40/60/80/120KM | |
| UTP Data rate | 10/100/1000Mpbs |
| Fiber Data rate | 100/1000Mbps |
| Connector | 1 RJ45 +1 Fiber port |
| Wavelength | 1310nm 1490nm 1550nm |
| Diagnostic LED | Power Link/Activity |
| Power | DC52V/0.7A/36W |
| Power Consumption | <8W |
| Temperature |
0~50℃(Operating) -20~70℃(Storage) |
| Humidity | 5%~90% |
| Dimension | 90x70x26mm |
Description:
NuFiber’s NF-PSE5201G series Media Converter are 10/100/1000Base T/TX to 1000Base FX Power over Ethernet(PoE) devices that serve as Power Sourcing Equipment(PSE).which allows the converter to provide power to IEEE802.3af PoE standard-compliant Powered Devices(PDs) using the twisted pair connection. Power transmitted along with data in one single cable(RJ45) allows you to expand your network where there are no power lines or outlets. Where you wish to devices such as Wifi Aps. IP Cameras or IP Phones.etc.
Ordering Information
| Model | Description | Fiber Mode | Wavelength | Distance | Connector |
| NF-PSE5201-C02 | 10/100Base-Tx to 100Base-FX | MMF | TRx:850nm | 2km | SC |
| or TRx:1310nm | |||||
| NF-PSE5201-C20 | 10/100Base-Tx to 100Base-FX | SMF | TRx:1310nm | 20 km | SC |
| NF-PSE5201-C20A/B | 10/100Base-Tx to 100Base-FX | SMF | Tx:1310nm/Rx1550nm | 20 km | SC |
| Tx:1550nm/Rx1310nm | |||||
| NF-PSE5201-SFP | 10/100Base-Tx to 100Base-FX | SFP | 850nm/1310nm/1550nm | 0~120km | LC/SC |
| NF-PSE5201G-C02 | 10/100/1000Base-Tx to 1000Base-FX | MMF | TRx:850nm | 2km | SC |
| or TRx:1310nm | |||||
| NF-PSE5201G-C20 | 10/100/1000Base-Tx to 1000Base-FX | SMF | TRx:1310nm | 20 km | SC |
| NF-PSE5201G-C20A/B | 10/100/1000Base-Tx to 1000Base-FX | SMF | Tx:1310nm/Rx1550nm | 20 km | SC |
| NF-PSE6301-SFP | 10/100/1000Base-Tx to 100/1000Base-FX | SFP | 850nm/1310nm/1550nm | 0~120km | LC/SC |
Product Show
Connection Diagram
Packing Methods
Shipping Methods
Factory Show
FAQ
|
|
