| MOQ: | 1 |
| Standard Packaging: | Packing Size/per boxes:21mm*15.6mm*5.3mm 40 Boxes / carton or As Your Mind |
| Delivery Period: | 3~4working day after payment |
| Payment Method: | T/T, Western Union |
| Supply Capacity: | 8000piece/month |
10/100/1000M POE media converter SFP to RJ45 30W gigabit poe fiber converter for CCTV Network
Spicification
| Standard | IEEE802.3i 10BASE-T |
| IEEE802.3u 100BASE-TX | |
| IEEE802.3z 1000BASE-TX | |
| IEEE802.3x Flow Control | |
| IEEE802.3af Power over Ethernet | |
| PoE power |
15.4W per port (IEEE802.3af) 25.5W per port (IEEE802.3at) |
| Wiring: Data & power provided over pairs 1/2 and 3/6 or 4/5(+) and 7/8(-) | |
| Cable: UTP cat.5 or higher | |
| Fiber type | Multi mode(MM): 62.5/125m.50/125m |
| Single mode(SM): 9/125m | |
| Distance | Multi mode & Dual Fiber 550M |
| Single mode & Single Fiber:20/40/60/80/120KM | |
| Data rate | 10/100/1000Mpbs |
| Connector | 1 RJ45 +1 SC/FC/ST/LC(SFP Slot) |
| Wavelength | 1310nm 1490nm 1550nm |
| Diagnostic LED | Power Link/Activity |
| Power | DC52V/0.7A/36W |
| Power Consumption | <8w |
| Temperature |
0~50℃(Operating) -20~70℃(Storage) |
| Humidity | 5%~90% |
| Dimension | 90x70x26mm |
Description:
POE Media converter with 1x10/100/1000Mbps Auto-Negotiation POE RJ45 and 1x100/1000Mbps Fiber SFP port. The products support IEEE802.3af/at power supply standard, maximum output power Up to 25.5 Watts for POE, Plug and Play, no need to convert by software and network protocol,Easy installation and use.Adopt No fan, low power design. Meet the needs of the site and provide a reliable and convenient solution for the network of Ethernet devices for users.The product apply with FCC and CE standards.
Features:
1, Support IEEE802.3 10BASE-T;
IEEE802.3i 10Base-T;IEEE802.3u 100Base-TX/FX;
IEEE802.3ab 1000Base-T;IEEE802.3z 1000Base-X; IEEE802.3af; IEEE802.3at;
2, Support 10/100/1000Mbps half-duplex/full-duplex mode and auto MDI/MDIX;
3, Transmission distance:
Multimode(MM): Up to 0.55KM Max;
Singlemode(SM): Up to 120KM Max；
4, POE power pin: 1/2+,3/6- (Option 4/5+,7/8-)；
5, RJ45 port support direct and cross automatic recognition function (AUTO-MDIX);
6, Fanless design, its own low heat, work stability and durability stronger;
7, Trouble-free working hours (MTBF)> 50,000 hours, in line with carrier-class operating standards;
Ordering Information
| Model | Description | Fiber Mode | Wavelength | Distance | Connector |
| NF-PSE5201-C02 | 10/100Base-Tx to 100Base-FX | MMF | TRx:850nm | 2km | SC |
| or TRx:1310nm | |||||
| NF-PSE5201-C20 | 10/100Base-Tx to 100Base-FX | SMF | TRx:1310nm | 20 km | SC |
| NF-PSE5201-C20A/B | 10/100Base-Tx to 100Base-FX | SMF | Tx:1310nm/Rx1550nm | 20 km | SC |
| Tx:1550nm/Rx1310nm | |||||
| NF-PSE5201-SFP | 10/100Base-Tx to 100Base-FX | SFP | 850nm/1310nm/1550nm | 0~120km | LC/SC |
| NF-PSE5201G-C02 | 10/100/1000Base-Tx to 1000Base-FX | MMF | TRx:850nm | 2km | SC |
| or TRx:1310nm | |||||
| NF-PSE5201G-C20 | 10/100/1000Base-Tx to 1000Base-FX | SMF | TRx:1310nm | 20 km | SC |
| NF-PSE5201G-C20A/B | 10/100/1000Base-Tx to 1000Base-FX | SMF | Tx:1310nm/Rx1550nm | 20 km | SC |
| NF-PSE6301-SFP | 10/100/1000Base-Tx to 100/1000Base-FX | SFP | 850nm/1310nm/1550nm | 0~120km | LC/SC |
Connection Diagram

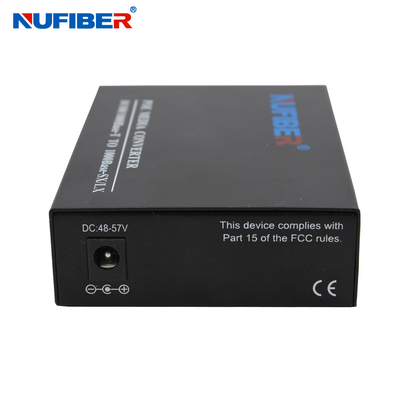

Product Show
Packing Methods
Shipping Methods
Factory Show
FAQ
|
|
