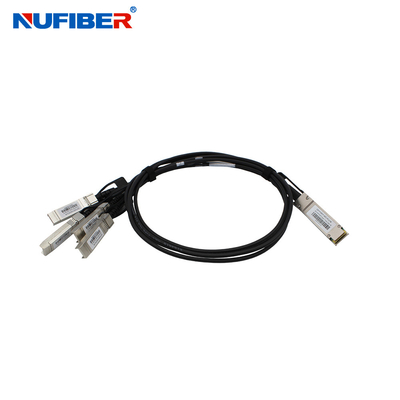

High Speed Copper cable 40G QSFP+/4x10g SFP+ SFP DAC Direct Attach Cable

High Speed Copper cable 40G QSFP+/4x10g SFP+ SFP DAC Direct Attach Cable

MOQ: 1 piece
Standard Packaging: 1 piece cable be packed into 1 box,
Delivery Period: 2~3 days
Payment Method: T/T, Western Union, L/C
Supply Capacity: 100,000 pcs per month
Detail Information
Place of Origin
China
Brand Name
NuFiber
Certification
CE, RoHS
Model Number
QSFP-4SFP-DxM
Data Rate:
40Gb/s
Connector Type:
40G QSFP+ To 4*10G SFP+
Length:
1M~7M Or Customized
Material:
Copper Cable
Application:
FTTH FTTB FTTX Network
Wire AWG:
AWG30/26 Optional
Power Supply:
3.3V
Work Temp.:
0~70℃
Manufacturer:
YES
Warranty:
1 Year
Product Description

High Speed 40Gb/s QSFP+ to 4*10G SFP+ Passive Direct Attach Copper cable 1-7Meters Compatible all brands



Description
QSFP+ (Quad Small Form-factor Pluggable Plus) copper direct-attach cables are suitable for very short distances and offer a highly cost-effective way to establish a 40-Gigabit link between QSFP+ ports of QSFP+ switches within racks and across adjacent racks. These cables are used for 40GbE and Infniband standards, to maximize performance. QSFP+ are designed to meet emerging data center and high performance computing application needs for a high density cabling interconnect system capable of delivering an aggregate data bandwidth of 40Gb/s. This interconnect system is fully compliant with existing industry standard specifications such as the QSFP MSA and IBTA (InfiniBand Trade Association). The QSFP+ cables support the bandwidth transmission requirements as defined by IEEE 802.3ba (40 Gb/s) and Infiniband QDR ( 4x10 Gb/s per channel) specifications


Key Features

  • Connector A: (1) QSFP 40.0 Gbps Rated Connector (SFF-8436 Compliant);
  • Connector B: (4) SFP+ 10.0 Gbps Rated Connectors (SFF-8431 Compliant);
  • Economically Links up a QSFP port with an Upstream 10GbE-SFP+ Switch;
  • Protocol agnostic support of 40GbE, QDR InfiniBand, SAS & Fibre Channel;
  • Up to 10.3125 Gbps transfer rate per SFP+ channel (40 Gbps aggregate);
  • Robust Zinc die-cast SFP+ & QSFP connectors with pull-to-release latching;
  • Bridge the gap between your 10G and 40G capable switches/host adapters;
  • Low cross-talk and pair-to-pair skew maintains signal integrity;
  • Fully compliant to the latest SFP+ & QSFP MSA (Multi-Source-Agreement);
  • Supports all current 10-Gigabit Ethernet and 40-Gigabit Ethernet standards;
  • Designated form factor and electrical compliance for QDR InfiniBand;
  • The perfect direct attached storage splitter cable for Fibre Channel & SAS;
  • Enjoy a reduced power budget and lower port cost compared to optical;
  • Fully RoHS compliant for environmental protection.


Application

  • Data
  • Servers
    Networked storage systems
    Routers
    External storage systems
    Data Center networking

  • Communications
  • Switches
    Routers

  • Industry Standards
  • InfiniBand Trade Association (IBTA)
    IEEE802.3ba

  • 40Gigabit Ethernet ( 40G BASE – CR4)



Ordering Informations:

P/N

Speed

Application

MAX Distance

Media

Interface

QSFP28-100G-DXM 103.1Gb/s 100GBASE-DAC 5m Passive cable QSFP28 to QSFP28
QSFP28-SFP28-DXM 103.1Gb/s 100GBASE-DAC 5m Passive cable QSFP28 to 4XSFP28
QSFP-40G-DXM 41.2Gb/s 40GBASE-DAC 5m Passive cable QSFP+ to QSFP+
QSFP-4SFP-DXM 41.2Gb/s 40GBASE-DAC 5m Passive cable QSFP+ to 4xSFP+
QSFP-40G-DXM 41.2Gb/s 40GBASE-DAC 10m Active Cable QSFP+ to QSFP+
QSFP-4SFP-DXM 41.2Gb/s 40GBASE-DAC 10m Active Cable QSFP+ to 4xSFP+
SFP28-25G-DXM 25.78Gb/s 25GBASE-DAC 5m Passive cable SFP28 to SFP28
SFP-10G-DXM 10.3Gb/s 10GBASE-DAC 10m Passive cable SFP+ to SFP+
SFP-10G-DXM 10.3Gb/s 10GBASE-DAC 15m Active Cable SFP+ to SFP+



Mechanical Dimensions
High Speed Copper cable 40G QSFP+/4x10g SFP+ SFP DAC Direct Attach Cable 0



Product Show
 High Speed Copper cable 40G QSFP+/4x10g SFP+ SFP DAC Direct Attach Cable 1High Speed Copper cable 40G QSFP+/4x10g SFP+ SFP DAC Direct Attach Cable 2High Speed Copper cable 40G QSFP+/4x10g SFP+ SFP DAC Direct Attach Cable 3High Speed Copper cable 40G QSFP+/4x10g SFP+ SFP DAC Direct Attach Cable 4
