Cisco Huawei Compatible Passive Direct Attach Twinax Copper Cable 30AWG

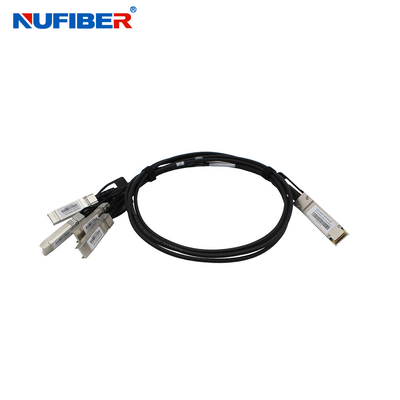

Cisco Huawei Compatible Passive Direct Attach Twinax Copper Cable 30AWG

MOQ: 1 piece
Standard Packaging: 1 piece cable be packed into 1 box,
Delivery Period: 2~3 days
Payment Method: T/T, Western Union, L/C
Supply Capacity: 100,000 pcs per month
Detail Information
Place of Origin
China
Brand Name
NuFiber
Certification
CE, RoHS
Model Number
QSFP-4SFP-DxM
Data Rate:
40Gb/s
Connector Type:
40G QSFP+ To 4*10G SFP+
Length:
1M~7M Or Customized
Material:
Copper Cable
Application:
FTTH FTTB FTTX Network
Wire AWG:
AWG30/26 Optional
Power Supply:
3.3V
Work Temp.:
0~70℃
Manufacturer:
YES
Warranty:
1 Year
Highlight:

Passive Twinax Copper Cable

,

Huawei Compatible Twinax Copper Cable

,

Cisco Compatible 30AWG Cable

Product Description

Cisco huawei compatible 40G QSFP+ TO 4x10g SFP+ DAC Passive Direct Attach Twinax Copper Cable 30AWG





Description
QSFP+ (Quad Small Form-factor Pluggable Plus) copper direct-attach cables are suitable for very short distances and offer a highly cost-effective way to establish a 40-Gigabit link between QSFP+ ports of QSFP+ switches within racks and across adjacent racks. These cables are used for 40GbE and Infniband standards, to maximize performance. QSFP+ are designed to meet emerging data center and high performance computing application needs for a high density cabling interconnect system capable of delivering an aggregate data bandwidth of 40Gb/s. This interconnect system is fully compliant with existing industry standard specifications such as the QSFP MSA and IBTA (InfiniBand Trade Association). The QSFP+ cables support the bandwidth transmission requirements as defined by IEEE 802.3ba (40 Gb/s) and Infiniband QDR ( 4x10 Gb/s per channel) specifications


Key Features

  • Connector A: (1) QSFP 40.0 Gbps Rated Connector (SFF-8436 Compliant);
  • Connector B: (4) SFP+ 10.0 Gbps Rated Connectors (SFF-8431 Compliant);
  • Economically Links up a QSFP port with an Upstream 10GbE-SFP+ Switch;
  • Protocol agnostic support of 40GbE, QDR InfiniBand, SAS & Fibre Channel;
  • Up to 10.3125 Gbps transfer rate per SFP+ channel (40 Gbps aggregate);
  • Robust Zinc die-cast SFP+ & QSFP connectors with pull-to-release latching;
  • Bridge the gap between your 10G and 40G capable switches/host adapters;
  • Low cross-talk and pair-to-pair skew maintains signal integrity;
  • Fully compliant to the latest SFP+ & QSFP MSA (Multi-Source-Agreement);
  • Supports all current 10-Gigabit Ethernet and 40-Gigabit Ethernet standards;
  • Designated form factor and electrical compliance for QDR InfiniBand;
  • The perfect direct attached storage splitter cable for Fibre Channel & SAS;
  • Enjoy a reduced power budget and lower port cost compared to optical;
  • Fully RoHS compliant for environmental protection.


Application

  • Data
  • Servers
    Networked storage systems
    Routers
    External storage systems
    Data Center networking

  • Communications
  • Switches
    Routers

  • Industry Standards
  • InfiniBand Trade Association (IBTA)
    IEEE802.3ba

  • 40Gigabit Ethernet ( 40G BASE – CR4)



Ordering Informations:

P/N

Speed

Application

MAX Distance

Media

Interface

QSFP28-100G-DXM 103.1Gb/s 100GBASE-DAC 5m Passive cable QSFP28 to QSFP28
QSFP28-SFP28-DXM 103.1Gb/s 100GBASE-DAC 5m Passive cable QSFP28 to 4XSFP28
QSFP-40G-DXM 41.2Gb/s 40GBASE-DAC 5m Passive cable QSFP+ to QSFP+
QSFP-4SFP-DXM 41.2Gb/s 40GBASE-DAC 5m Passive cable QSFP+ to 4xSFP+
QSFP-40G-DXM 41.2Gb/s 40GBASE-DAC 10m Active Cable QSFP+ to QSFP+
QSFP-4SFP-DXM 41.2Gb/s 40GBASE-DAC 10m Active Cable QSFP+ to 4xSFP+
SFP28-25G-DXM 25.78Gb/s 25GBASE-DAC 5m Passive cable SFP28 to SFP28
SFP-10G-DXM 10.3Gb/s 10GBASE-DAC 10m Passive cable SFP+ to SFP+
SFP-10G-DXM 10.3Gb/s 10GBASE-DAC 15m Active Cable SFP+ to SFP+



Mechanical Dimensions
Cisco Huawei Compatible Passive Direct Attach Twinax Copper Cable 30AWG 0



Product Show
 Cisco Huawei Compatible Passive Direct Attach Twinax Copper Cable 30AWG 1Cisco Huawei Compatible Passive Direct Attach Twinax Copper Cable 30AWG 2Cisco Huawei Compatible Passive Direct Attach Twinax Copper Cable 30AWG 3Cisco Huawei Compatible Passive Direct Attach Twinax Copper Cable 30AWG 4
