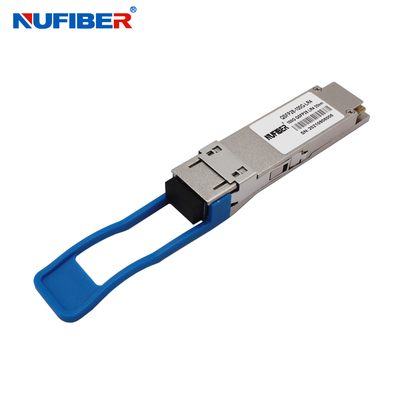

Huawei Compatible 100G QSFP28 LR4 LC Optical Transceiver Module

Huawei Compatible 100G QSFP28 LR4 LC Optical Transceiver Module

MOQ: 1 piece
Standard Packaging: 4pcs/plastic plate,
Delivery Period: Within 1-3 work days
Payment Method: L/C, T/T, Western Union,Credit Card
Supply Capacity: 10,000 pcs per month
Detail Information
Place of Origin
China
Brand Name
NuFiber
Certification
CE FCC Rohs
Model Number
QSFP28-100G-LR4
Data Rate:
100Gb/s
Wavelength:
1270-1330nm
Distance:
20km
Connector:
LC
DDM:
Support
Fiber Type:
Singlemode
Power Supply:
3.3V
Working Temperature:
0~70℃
Warranty:
1 Year
Compatibility:
Huawei, Cisco, HP, H3C...
Manufacturer:
Yes
Highlight:

Huawei Compatible 100G QSFP28 Transceiver

,

100G QSFP28 LR4 Optical Transceiver Module

,

LC Optical Transceiver Module

Product Description

Compatible Huawei 100G QSFP28 LR4 20KM LC Receptacle DDM 1310nm Optical Transceiver Module





(QSFP28-100G-LR4)



100Gb/s 20km QSFP28 Transceiver

Hot Pluggable, Duplex LC Connector, Single mode

1270 nm, 1290 nm, 1310 nm and 1330 nm

Description

The QSFP28-100G-LR4 is a transceiver module designed for 20km optical communication applications. The design is compliant to 100GbASE-LR4 of the IEEE 802.3-2012 Clause 88 standard IEEE 802.3bm CAUI-4 chip to module electrical standard ITU-T G.959.1-2012-02 standard . The module converts 4 inputs channels (ch) of 25.78 Gbps to 27.95Gbps electrical data to 4 lanes optical signals, and multiplexes them into a single channel for 100Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 100Gb/s input into 4 lanes signals, and converts them to 4 lanes output electrical data.
The central wavelengths of the 4 lanes are 1270 nm, 1290 nm, 1310 nm and 1330 nm . It contains a duplex LC connector for the optical interface and a 38-pin connector for the electrical interface. To minimize the optical dispersion in the long-haul system, single-mode fiber (SMF) has to be applied in this module.





Features

  • 4 lanes MUX/DEMUX design
  • Integrated CWDM TOSA / ROSA for up to 20 km reach over SMF
  • Support 100GBASE-CWDM4 for line rate of 103.125Gbps and OTU4 for line rate of 111.81Gbps
  • Aggregate bandwidth of > 100Gbps
  • Duplex LC connectors
  • Compliant with IEEE 802.3-2012 Clause 88 standard IEEE 802.3bm CAUI-4 chip to module electrical standard ITU-T G.959.1-2012-02 standard ·
  • Single +3.3V power supply operating
  • Built-in digital diagnostic functions
  • Temperature range 0°C to 70°C
  • RoHS Compliant Part



Applications

  • Local Area Network (LAN)
  • Wide Area Network (WAN)
  • Ethernet switches and router applications



Optical Parameters



Parameter Symbol Min Typ Max Unit Note
Data Rate per Channel   - 25.78125   Gbps
Power Consumption   - 2.5 3.5 W
Supply Current Icc   0.75 1.0 A
Control I/O Voltage-High VIH 2.0   Vcc V
Control I/O Voltage-Low VIL 0   0.7 V
Inter-Channel Skew TSK     150 Ps
RESETL Duration     10   Us
RESETL De-assert time       100 ms
Power On Time       100 ms
Transmitter
Single Ended Output Voltage Tolerance   0.3   4 V 1
Common mode Voltage Tolerance   15     mV
Transmit Input Diff Voltage VI 120   1200 mV
Transmit Input Diff Impedance ZIN 80 100 120
Data Dependent Input Jitter DDJ     0.1 UI
Data Input Total Jitter TJ     0.28 UI
Receiver
Single Ended Output Voltage Tolerance   0.3   4 V
Rx Output Diff Voltage Vo   600 800 mV
Rx Output Rise and Fall Voltage Tr/Tf     35 ps 1
Total Jitter TJ     0.7 UI
Deterministic Jitter DJ     0.42 UI



Ordering information



100G QSFP28
QSFP28-100G-SR4 103.1 Gbp 850nm MMF MTP/MPO 100m VCSEL 850nm
QSFP28-100G-LR4 103.1 Gbp 1310nm SMF LC duplex 10km DML 1310nm
QSFP28-100G-ER4 103.1Gbps 1310nm SMF LC Duplex 25km-40km 4x EML
QSFP28-100G-PSM4 103.1 Gbp 1310nm SMF MTP/MPO 500m 4x DFB
QSFP28-100G-LR-S 103.1 Gbp 1310nm SMF MTP/MPO 2km 4x DFB
QSFP28-100G-CWDM4-S 103.1 Gbp CWDM SMF LC duplex 2km DML CWDM
1271~1331nm
QSFP28-100G-CWDM4-L 103.1 Gbp CWDM SMF LC duplex 10km DML CWDM
1271~1331nm
