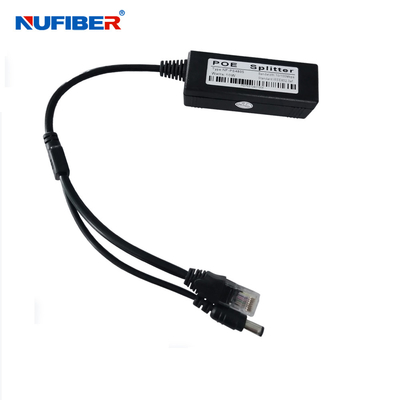

Poe Ethernet Splitter 48v To 5v
Product Details:
Place of Origin: | China(mainland) |
Brand Name: | Nufiber |
Certification: | CE RoHS |
Model Number: | NF-PS4805G |
Payment & Shipping Terms:
Minimum Order Quantity: | 10 |
---|---|
Packaging Details: | 250pcs/carton,carton size:550*340*380mm |
Delivery Time: | whitn 3~4 working day after payment |
Payment Terms: | T/T, Western Union |
Supply Ability: | 8000pcs per month |
Detail Information |
|||
Product Name: | POE Splitter | Color: | Black,white |
---|---|---|---|
Data Transfer Rate: | 10/100/1000Mbps | Watts: | 10W |
Standard: | IEEE802.3af | Power Input: | DC 48V |
Power Output: | DC5V 2A | OEM&ODM: | Accepted |
High Light: | Poe Ethernet Splitter 48v To 5v,Poe Splitter 48v To 5v,48v To 5v Poe Ethernet Splitter |
Product Description
10/100/1000M PoE splitter, DC48V to 5V, IEEE802.3af
Description
- For the cost saving and power management purpose, the NF-PS4805G is the ideal IEEE 802.3af Power over Ethernet device that splits the 48V DC over the Ethernet cable into 5V/12V DC power output.
- When working with the IEEE 802.3af power source equipment (PSE), the NF-PS4812 frees the device deployment from restrictions of power outlet locations, which eliminates the costs for additional AC wiring and reduces the installation time.
Key feature
- Complies with IEEE 802.3af Power over Ethernet, IEEE 802.3/802.3u 10/100/1000Base-TX Ethernet standard
- Splits the 48V DC power over RJ-45 Ethernet cable into different DC output
- LED indicators for power input indication
- Data and power transmission distance up to 100 meters
- Adjustable two different output voltage options (5V/2A, 12V/1A) to fit various devices
- .Auto-Detect of IEEE 802.3af PoE equipment, protects devices from being damaged by incorrect installation
- Works with EIA568, category 5,4-pair cables for 10Base-T or 100Base-TX
Target Industries
- HD monitor transmission and power supply
- Wireless AP layout transmission and power supply
- Network telephone transmission , intelligent house and home system
- Intelligent transportation supervisory system(ITS)
- High-speed Way supervisory/Tele-Communication System
- Security protection system, TV medical treatment
- Long-distance Muti-media Schooling, Campus monitoring
- Long-distance broadcast television transmission system
- High-building Security Protection, Military Tele-Com projects
Specification
Technical parameter list | |
Product Name | PoE Splitter |
Model | NF-PS4812 G/ NF-PS4805G |
Description | PoE Splitter (DC Input) |
Port Feature | Input: PoE port, Output: DC12/5V Power, RJ45 |
Media | 100Base-TX (≤100, Cat 5 cable) |
Protocol | IEEE 802.3i;IEEE 802.3u;IEEE 802.3x Flow Control;IEEE 802.1af DTE Power via MDI |
Other Feature | 5V/12VDC Adjustable |
PoE Port | Power over Ethernet (15.4W) |
PoE Standard | 15.4Watts output (IEEE802.3af) |
PoE Type | Support Both Mid-span and End-Span |
PoE Feature | Output Power: 15.4 Watts. |
PoE PIN | 4/5+,7/8- and 1/2+,3/6- |
Environment | Operating temperature: 0 to 55° C Storage temperature: -20 to 75°C |
EMI Safety | CE mark,commercial,FCC Part 15 Class B,RoHS |
PoE Budget | 15.4Watts |
Leds | Power, Network, PoE working status |
Dimenssion | 80x76x25mm (0.15Kg) |
After-Sales | One year’ garantee, Lifetime Maintenance |
Packing List | PoE Splitter, User manual, Warranty card |
Order Information
Product: NF-PS4812G/ NF-PS4805G
Type:10/100/1000M PoE Splitter,IEEE 802.3af,15.4Watts,5VDC/12VDC output, 10/100/1000M
Power Pin Assignment:Data provided over pairs over 1/2and 3/6 ,Power over spare pairs4/5(+) and 7/8 (-)
