MOQ: | 1 piece |
Standard Packaging: | 20pcs/carton, carton size: 452*372*297mm |
Delivery Period: | 1-3 work days |
Payment Method: | L/C, T/T, Western Union |
Supply Capacity: | 5000pcs per month |

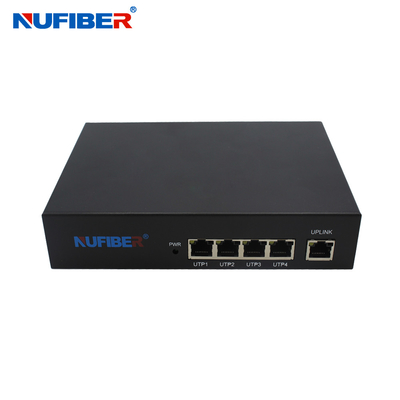

10/100M 24V POE Switch with 4 POE ports 1 Uplink port maxmium 24 watts each port 65W internal
Overview
NF-S904P-24V 10/100Mbps nonstandard POE Switch , providing 1 10/100Mbps Up-link port and 4 10/100Mbps POE ports.It designs with 65W industrial power adapter, each port max output power is 24Watts. Besides, Each port is installed fuse to keep safety. NF-S904P-24V passive POE Switch can provide Power for wireless AP, IP Camera which is nonstandard PD devices. It is widely used in Enterprise,hotel, interlocking institution, Campus network, etc.
NF-S904P-24V POE Switch power pin 4,5(+),7,8(-).
Technical Parameter
Description | S904P-24V | |
Hardware Specifications | Dimension(L*W*H) / Gross Weight | 230mm*150mm*25mm/1.52kg |
Port Number | 4*10/100M auto-adaption RJ45 port | |
PoE port | 1 to 4 support POE , Output: 24V | |
LED | PWR , Link/Act | |
Input Power | 100V~240V AC,50/60Hz | |
Power Dissipation | Internal power,output:65W | |
Heat-dissipating Method | natural wind cooling | |
Key indicator | Bandwidth | 1.8 Gbps |
Exchange mode | Store-and-forward | |
MAC Address Table | 1K | |
Basic Function | Second line speed forward | Support |
Automatic positive and negative cable | Support | |
Auto-Negotiation | Support | |
POE port power priority | Support | |
Automatic MAC Address learning and aging | Support | |
Half-duplex Back-pressure flow control | Support | |
Full Duplex IEEE 802.3x flow control | Support | |
Standard | IEEE 802.3af,IEEE 802.3at | Nonsupport |
IEEE 802.3 10BASE-T | Support | |
IEEE 802.3u 100BASE-TX | Support | |
ANSI/IEEE 802.3 NWay Auto-Negotiation | Support | |
IEEE802.3x Flow Control Standard | Support | |
Environment | Operating Temperature | -10℃~60℃ |
Operating Humidity | 10%~90% (no condensing) | |
Storage Temperature | -40℃~70℃ | |
Storage Humidity | 5%~90% (no condensing) |
Advantage of Combined PoE and Media Conversion
With the data, long reach fiber capability and PoE from one unit, the NF-S904P will reduce cables and eliminate the need for dedicated electrical outlets on the wall, ceiling or any unreachable place. It frees the security IP camera and wireless AP deployment from restrictions due to power outlet locations. Power and data switching are integrated into one unit and delivered over a single cable, eliminating costs for additional AC wiring and reducing installation time.
Product Application
Ordering Information
Model No. | Description | POE supply |
NF904P-24V | 1 to 4 support POE 10/100M RJ-45 | 1~8 24V/1A |
NF908P-24V | 1 to 8 support POE 10/100M RJ-45 | 1~8 24V/1A |
Factory Show
CE certification
Shipping Method
Warmly Welcome you to inquiry us for this products, We are sure any of your inquiry will get our promt attentions.
