Aluminum Alloy 8 Port Poe Ethernet Switch For Security System

Aluminum Alloy 8 Port Poe Ethernet Switch For Security System

MOQ: 1 piece
Standard Packaging: 1 piece/packing box with spongy filler, 20pcs per standard export carton
Delivery Period: 1~2 work days for sample order
Payment Method: Western Union, T/T, L/C
Supply Capacity: 1000 pcs per week
Detail Information
Place of Origin
China
Brand Name
NuFiber
Certification
CE
Model Number
NF518GP-SFP
Product Name:
Unmanaged Industrial POE Switch
Data Rate:
10/100/1000Mbps
Fiber Port:
SFP Socked
Working Temp.:
-40 ~ +85℃
Warranty:
3 Years
Material:
Aluminum Alloy
Installation:
DIN-rail Type
Protection Grade:
IP40
Ports:
8x10/100/1000Base RJ45 POE Ports+1x1000M SFP
OEM:
Accepted
Power Supply:
DC12~48V (POE: DC48~57V)
Highlight:

Aluminum 8 Port Poe Ethernet Switch

,

Alloy 8 Port Poe Ethernet Switch

Product Description

10/100/1000M Industrial POE Switch with 8 rj45+1 SFP port DIN-Rail or Wall Mount

Overview

NuFiber’s NF518GP-SFP Industrial Ethernet witch,With 8 Port 10/100/1000 Ethernet POE ports and 1 port 1000Mbps SFP Socked, for connecting with devices like computer, switch, hub, server, etc, as well as powering network camera, industrial VoIP phone, wireless AP and other devices. Specially designed for harsh outdoor applications. Its 3KV network port surge protection can adapt to harsh outdoor environment and ensure the reliability of the uninterrupted PoE system. Power input also chooses industry-standard types of power.

Features
• 8 Port 10/100/1000Mbps RJ45 POE with Auto Uplink™ , 1 port 1000Mbps SFP Socked
• Automatic MAC address learning and aging
• Automatically support IGMP (Multicasting)
• 10/100/1000Mbps Auto-negotiation , auto-MDI-MDI-X
• LED indicators for monitoring power/link/activity
• Supports 10/100/1000Mbps-Full/Half-duplex
• Supports Wall-mount and DIN-Rail installation for lightning protection
• Supports Daisy-Chain connection
• Supports Broadcast Storm Control
• Super lightening protection, IP40 protection.
• Excellent heat elimination without cooling fan.
• Redundant dual DC power inputs.
• Redundant Power Inputs
• Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe City.
• Harsh industrial environment or higher requirement
• -40℃-85℃ operating temperature range.
• 3-Year Warranty

Technical Specification

Product Name 8 Port 10/100/1000Base Industrial Ethernet POE Switch
Product Model NF518GP-SFP
Interface 8x 10/100/1000Base-T RJ45 POE port + 1x 1000Mbps SFP Socked
Network Protocols IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX;
IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x;
Network Media 10BASE-T: Cat3,4,5 UTP(≤100 meter)
100BASE-TX: Cat5 or later UTP(≤100 meter)
1000BASE-TX: Cat6 or later UTP(≤100 meter)
Fiber Media

Multi-mode: 2KM
Single-mode: 20/40/60/80KM

Performance Specification Bandwidth: 20Gbps
Packet Buffer Memory:2M
Packet Forwarding Rate:1488000pps/port
MAC Address Table: 16K
Forwarding Mode Store-and-Forward
Protection Lightening protection, IP40 protection
LED Indicators Power: PWR; Link; Link/Act
Power Supply Input Power: 2x10~58VDC (Terminal Block)




Other Specifications
Working Environment Working temperature: -40~85℃ ; Storage temperature: -45~85℃
Relative Humidity: 5%~95 %( no condensation)
Industry Standard FCC CFR47 Part 15,EN55022/CISPR22, Class A EMS:
IEC61000-4-2 (ESD): ±8kV (contact), ±15kV (air)
IEC61000-4-3 (RS): 10V/m (80MHz-2GHz)
IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV
IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV
IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)
IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)
Shell IP40 protect grade, metal shell
Installation DIN-Rail or Wall mounts
Packing List 1×Industrial Ethernet Switch (plus terminal block)
1×User Manual/Certificate of quality/Warranty card
1×DIN-Rail mounting kit
Certification CE mark, commercial; FCC Part 15 Class B; VCCI Class B
EN 55022 (CISPR 22), Class B
MTBF 300,000 hours
Weight & Size Product Weight: 0.6KG
Packing Weight: 1.1 KG
Product size (L×W×H): 15.7cm× 12cm× 4.8cm
Packing size(L×W×H): 25.7cm× 18.2 cm× 6.7 cm
Warranty 3-years


Ordering information


NF511GP-SFP Industrial 10/100/1000M 1 SFP port + 1 RJ45 POE port, DIN Rail type, DC10~52V, exclude power adapter and SFP module
NF512GP-SFP Industrial 10/100/1000M 1 SFP port + 2 RJ45 POE port, DIN Rail type, DC10~52V, exclude power adapter and SFP module
NF514GP-SFP Industrial 10/100/1000M 1 SFP port + 4 RJ45 POE port, DIN Rail type, DC10~52V, exclude power adapter and SFP module
NF524GP-SFP Industrial 10/100/1000M 2 SFP port + 4 RJ45 POE port, DIN Rail type, DC10~52V, exclude power adapter and SFP module
NF518GFP-SFP Industrial 1x1000M SFP port + 8x10/100M RJ45 POE port, DIN Rail type, DC 10~52V, exclude power adapter and SFP module
NF528GFP-SFP Industrial 2x1000M SFP port + 8x10/100M RJ45 POE port, DIN Rail type, DC 10~52V, exclude power adapter and SFP module
NF518GP-SFP Industrial 1x1000M SFP port + 8x10/100/1000M RJ45 POE port, DIN Rail type, DC 10~52V, exclude power adapter and SFP module
NF528GP-SFP Industrial 2x1000M SFP port + 8x10/100/1000M RJ45 POE port, DIN Rail type, DC 10~52V, exclude power adapter and SFP module

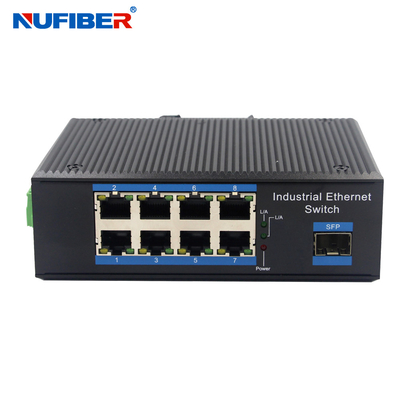

Product Picture
Aluminum Alloy 8 Port Poe Ethernet Switch For Security System 0Aluminum Alloy 8 Port Poe Ethernet Switch For Security System 1Aluminum Alloy 8 Port Poe Ethernet Switch For Security System 2Aluminum Alloy 8 Port Poe Ethernet Switch For Security System 3
Packing & Shipping





Aluminum Alloy 8 Port Poe Ethernet Switch For Security System 4

Aluminum Alloy 8 Port Poe Ethernet Switch For Security System 5
