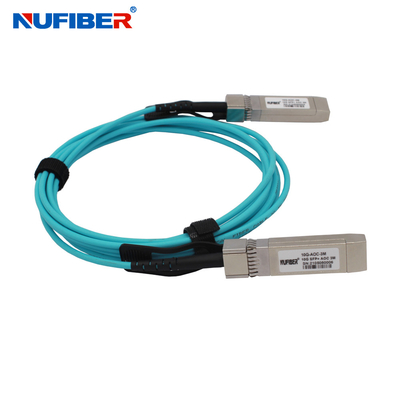

10G SFP Active Optical Cable for High Speed Data Transfer AOC

10G SFP Active Optical Cable for High Speed Data Transfer AOC

MOQ: 1 piece
Standard Packaging: 1 piece cable be packed into 1 box,
Delivery Period: 2~3 days
Payment Method: T/T, Western Union, L/C
Supply Capacity: 100,000 pcs per month
Detail Information
Place of Origin
China
Brand Name
NuFiber
Certification
CE, RoHS
Model Number
10G-AOC-XM
Data Rate:
10Gb/s
Connector Type:
SFP+ To SFP+ AOC
Length:
1m/3m/5m/7m/10m/15m
Material:
Copper Cable
Application:
FTTH FTTB FTTX Network
Wire AWG:
AWG 30 As Default
Power Supply:
3.3V
Work Temp.:
0~70℃
Manufacturer:
YES
Warranty:
1 Year
Product Description

10G AOC Cable SFP+-SFP+ AOC 5M 10Gbps SFP+ Active Optical Cable​





Description

Nufiber’s high speed SFP+ Active Optical Cable (AOC) provides high performance in 10 Gigabit Ethernet (10GbE) network applications, using an enhanced SFP+ connector to send 10Gbps data through one paired transmitters and receivers over a optical cable. They are compliant with electrical standards SFF-8431, SFF-8083 and mechanical standard SFF-8432, EEPROM standard SFF-8472.



Key Features

  • Hot pluggable
  • Bit rate support from 1G to 11.3Gbps
  • Pre-terminated twin axial cable / fiber cable
  • Operating environment temperature 0 ~ 70℃
  • Low power consumption
  • SFP+ housing with enhanced EMI shielding
  • Single 3.3V power supply
  • Programmable EEPROM for serial identification



Application

  • 10G Ethernet
  • Applicable to 1G Ethernet
  • 8G Fiber Channel
  • Applicable to 4G / 2G / 1G Fiber Channel
  • 10G Fiber Channel over Ethernet
  • 1X QDR Infiniband
  • Applicable to 1X DDR / 1x SDR Infiniband
  • High capacity IO with SFP+ interface
  • Data center and in-rack connection

Technical Parameter



Parameter Symbol Min Max Unit
Storage Temperature Ts -40 +85 °C
Operating Case Temperature Tc -40 +85 °C
Operating Humidity RH   85 %
Supply Voltage Vcc -0.5 3.6 V














Parameter Symbol Min Max Unit
Operating Case Temperature Tc 0 +70 °C
Supply Voltage Vcc 3.1 3.5 V
Bit Rate BR 1 11.3 GBd














Mechanical Drawing



10G SFP Active Optical Cable  for High Speed Data Transfer AOC 0



Ordering Information

Part Number Product Description Fiber Spec.
AOC-SFP-10G-CU1M 10G SFP+ Active Optical Cable 1Meter OM2or OM3
AOC-SFP-10G-CU3M 10G SFP+ Active Optical Cable 3Meters OM2or OM3
AOC-SFP-10G-CU5M 10G SFP+ Active Optical Cable 5Meters OM2or OM3
AOC-SFP-10G-CU7M 10G SFP+ Active Optical Cable 7Meters OM2or OM3
AOC-SFP-10G-CU10M 10G SFP+ Active Optical Cable 10Meters OM2or OM3
AOC-SFP-10G-CU15M 10G SFP+ Active Optical Cable 15Meters OM2or OM3
AOC-SFP-10G-CU20M 10G SFP+ Active Optical Cable 20Meters OM2or OM3
AOC-SFP-10G-CU25M 10G SFP+ Active Optical Cable 25Meters OM2or OM3
AOC-SFP-10G-CU30M 10G SFP+ Active Optical Cable 30Meters OM3
AOC-SFP-10G-CU50M 10G SFP+ Active Optical Cable 50Meters OM3
AOC-SFP-10G-CU100M 10G SFP+ Active Optical Cable 100Meters OM3

















Product Show



10G SFP Active Optical Cable  for High Speed Data Transfer AOC 110G SFP Active Optical Cable  for High Speed Data Transfer AOC 210G SFP Active Optical Cable  for High Speed Data Transfer AOC 310G SFP Active Optical Cable  for High Speed Data Transfer AOC 4







Packaing & Shipping



10G SFP Active Optical Cable  for High Speed Data Transfer AOC 5



10G SFP Active Optical Cable  for High Speed Data Transfer AOC 6

Factory Show



10G SFP Active Optical Cable  for High Speed Data Transfer AOC 710G SFP Active Optical Cable  for High Speed Data Transfer AOC 8
