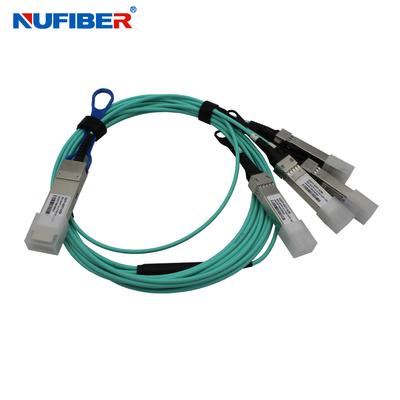

QSFP-4SFP-AxM QSFP To 4x10G 40G Sfp+ Aoc Cable 1m 5m With LC Connector

QSFP-4SFP-AxM QSFP To 4x10G 40G Sfp+ Aoc Cable 1m 5m With LC Connector

MOQ: 1pcs
Standard Packaging: Standard Export Package
Delivery Period: 1-3 working days
Payment Method: T/T, Western Union
Supply Capacity: 5,000 pcs per month
Detail Information
Place of Origin
China
Brand Name
Nufiber
Certification
CE FCC Rohs
Model Number
QSFP-4SFP-AxM
Product Name:
40G QSFP To 4*10G SFP+ AOC
Connector Type:
QSFP+ To 4 SFP+
Max Data Rate:
40Gbps
Cable Length:
Customized
Temperature:
0 To 70°C
Transmitter:
4CH VCSEL Laser
Receiver:
4CH PIN Photo Detector
Connector:
LC Connector
Warranty:
1 Year
Highlight:

40G Sfp+ Aoc Cable 1m

,

Sfp+ Aoc Cable With LC Connector

,

QSFP-4SFP-AxM

Product Description

High Speed 40G QSFP to 4x10G SFP+ Active Optical Cable 1-5M



Description:

QSFP-4SFP-AXM series are active optical cables (AOC) that allows bi-directional 40Gbps to 10Gbps transmission suitable for high performance computing(HPC)clustering and other high-throughput data network, with advantages such as high speed, high density, low latency, low power consumption and light weight.



Key Features:

QSFP+ to 4*SFP+ module
QSFP+ Maximum Aggregate Data Rate 40Gbps
4*SFP+ Maximum Aggregate Data Rate 4*10Gbps
QDR,DDR,SDR(Infiniband)
Bi-directional pararell link
10Gb/s per lane,X4 channels
Up to 100m
Low profile connectors
Low profile connectors
Low power consumption
Bundle multi-mode fiber array
850nm VCSEL four array
PIN diode four array
Hot-Pluggable
I2C management interface
From 0 to 70 degree case temperature
3.3V power supply voltage
Electrical 38-pin connector



Application:



Low-latency and high-speed interconnections for high performance computing(HPC)
40G Ethernet SR4
Other high-throughput data transmission network
Storage area Network(SAN)





Standard:

(1)Compliant with IEEE 802.3ba-2010,Annex 86A for 40GBASE-SR4;

(2)Compliant with InfiniBand EDR,FDR,QDR,DDR,SDR;

(3)Compliant with QSFP MSA(SFF-8436);

(4)Compliant with SFP MSA(SFF-8431);

(5)RoHS Compliant:lead-free.



Products show:

QSFP-4SFP-AxM QSFP To 4x10G 40G Sfp+ Aoc Cable 1m 5m With LC Connector 0QSFP-4SFP-AxM QSFP To 4x10G 40G Sfp+ Aoc Cable 1m 5m With LC Connector 1QSFP-4SFP-AxM QSFP To 4x10G 40G Sfp+ Aoc Cable 1m 5m With LC Connector 2QSFP-4SFP-AxM QSFP To 4x10G 40G Sfp+ Aoc Cable 1m 5m With LC Connector 3

Factory Show:

QSFP-4SFP-AxM QSFP To 4x10G 40G Sfp+ Aoc Cable 1m 5m With LC Connector 4



Packing & Shipping:

QSFP-4SFP-AxM QSFP To 4x10G 40G Sfp+ Aoc Cable 1m 5m With LC Connector 5

QSFP-4SFP-AxM QSFP To 4x10G 40G Sfp+ Aoc Cable 1m 5m With LC Connector 6



FAQ:

QSFP-4SFP-AxM QSFP To 4x10G 40G Sfp+ Aoc Cable 1m 5m With LC Connector 7
