MOQ: | 1 piece |
Standard Packaging: | Carton Packaging, the products are packed in international standard. Each carton is lined with a polythene sheet, thus preventng the contents from dampness |
Delivery Period: | within 1-3 working days after payment |
Payment Method: | T/T, Western Union, Credit card |
Supply Capacity: | 10000 pairs per month |

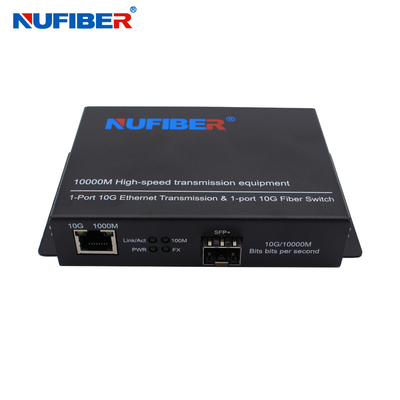

10G SFP+ to RJ45 Optical Media Converter 1000M/10000M Speed SFP Media Converter
Overview
This product is high-performance 10G optical media converter , Using Optical - Electrical - Electrical wavelength conversion, realize the optical signal equilibrium amplification, clock extraction and optical regeneration, and with WDM (DWDM/CWDM) technology, can achieve optical signals transmit in a single fiber by single or multiple way over a long distance. On the existing network infrastructure, it can quickly improve the communication capacity, expand the bandwidth, while using low cost and high cost-effective solutions to manage and operate the system, easy operation and maintenance.
Key Features
◆ Support Jumbo Frame
◆ Transparent Transport and very low delay
◆ Connection between fiber to copper or fiber to fiber 10G Ethernet equipment
◆ Can be applied in Telecommunication room, R&D laboratory, Data center, etc
◆ Support ITUT prescribed DWDM/CWDM wavelength
◆ Support hot plugging
◆ Full State Led display
◆ Easy installation
Technical Specifications
◆ Protocols: IEEE802.3an(10Gbase-T), IEEE802.3ae(10Gbase-SR/LR/ER/ZR)
◆ Interface Type: RJ45 to SFP+, RJ45 to XFP,SFP+ to SFP+, SFP+ to XFP, XFP to XFP
◆ Connector: UTP: RJ-45, 1G/10Gbps; Fiber: SFP+ or XFP
◆ Cable :
UTP cable: Cat 6a (the max distance up to 100m)
Fiber :
multimode : 50/125, 62.5/125μm (the max distance up to 300m)
singlemode : 8.3/125, 8.7/125, 9/125μm (the max distance up to 80km)
◆ Power: AC 220V(170-260V) 50Hz; DC 5V,3A
◆ Ambient temperature:0 ~ +50℃
◆ Storage temperature:-20 ~ +70℃
◆ Humidity:5% ~ 90%
◆ Dimensions:External Power:14.4*10.3*3.2CM
Order Information
Model | Description |
NF-C570-SFP | 10/100Base-Tx to 100Base-FX Media Converter with SFP Slot |
NF-C2200-SFP | 10/100/1000Base-Tx to 1000Base-FX Media Converter with SFP Slot |
NF-C2.5G-SFP | 2.5G SFP to RJ45 Media Converter, without SFP Module |
NF-C10G-SFP | 10G Base-Tx to 10G Base-FX Media Converter with SFP+ Slot |
Products show
Shipping and Packaging
MOQ: | 1 piece |
Standard Packaging: | Carton Packaging, the products are packed in international standard. Each carton is lined with a polythene sheet, thus preventng the contents from dampness |
Delivery Period: | within 1-3 working days after payment |
Payment Method: | T/T, Western Union, Credit card |
Supply Capacity: | 10000 pairs per month |
10G SFP+ to RJ45 Optical Media Converter 1000M/10000M Speed SFP Media Converter
Overview
This product is high-performance 10G optical media converter , Using Optical - Electrical - Electrical wavelength conversion, realize the optical signal equilibrium amplification, clock extraction and optical regeneration, and with WDM (DWDM/CWDM) technology, can achieve optical signals transmit in a single fiber by single or multiple way over a long distance. On the existing network infrastructure, it can quickly improve the communication capacity, expand the bandwidth, while using low cost and high cost-effective solutions to manage and operate the system, easy operation and maintenance.
Key Features
◆ Support Jumbo Frame
◆ Transparent Transport and very low delay
◆ Connection between fiber to copper or fiber to fiber 10G Ethernet equipment
◆ Can be applied in Telecommunication room, R&D laboratory, Data center, etc
◆ Support ITUT prescribed DWDM/CWDM wavelength
◆ Support hot plugging
◆ Full State Led display
◆ Easy installation
Technical Specifications
◆ Protocols: IEEE802.3an(10Gbase-T), IEEE802.3ae(10Gbase-SR/LR/ER/ZR)
◆ Interface Type: RJ45 to SFP+, RJ45 to XFP,SFP+ to SFP+, SFP+ to XFP, XFP to XFP
◆ Connector: UTP: RJ-45, 1G/10Gbps; Fiber: SFP+ or XFP
◆ Cable :
UTP cable: Cat 6a (the max distance up to 100m)
Fiber :
multimode : 50/125, 62.5/125μm (the max distance up to 300m)
singlemode : 8.3/125, 8.7/125, 9/125μm (the max distance up to 80km)
◆ Power: AC 220V(170-260V) 50Hz; DC 5V,3A
◆ Ambient temperature:0 ~ +50℃
◆ Storage temperature:-20 ~ +70℃
◆ Humidity:5% ~ 90%
◆ Dimensions:External Power:14.4*10.3*3.2CM
Order Information
Model | Description |
NF-C570-SFP | 10/100Base-Tx to 100Base-FX Media Converter with SFP Slot |
NF-C2200-SFP | 10/100/1000Base-Tx to 1000Base-FX Media Converter with SFP Slot |
NF-C2.5G-SFP | 2.5G SFP to RJ45 Media Converter, without SFP Module |
NF-C10G-SFP | 10G Base-Tx to 10G Base-FX Media Converter with SFP+ Slot |
Products show
Shipping and Packaging
