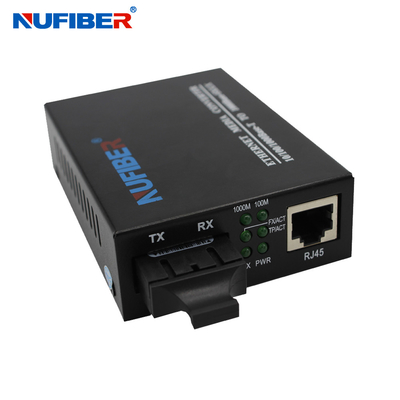

10/100/1000M Fiber Media Converter Dual Fiber MMF 850nm 550m SC DC5V1A
Product Details:
| Place of Origin: | Shenzhen, China ( mainland) |
| Brand Name: | NUFIBER |
| Certification: | CE |
| Model Number: | NF-C2200SX |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece |
|---|---|
| Packaging Details: | Carton Packaging, the products are packed in international standard. Each carton is lined with a polythene sheet, thus preventng the contents from dampness |
| Delivery Time: | within 1-3 working days after payment |
| Payment Terms: | T/T, Western Union, Credit card |
| Supply Ability: | 10000 pair per month |
|
Detail Information |
|||
| Fiber Type: | MM Dual Fiber | Fiber Interface: | SC/ST/FC |
|---|---|---|---|
| Connector: | RJ45 Port | Transmission Rate: | 10/100/1000M |
| Distance: | 550m | Wavelength: | TRx850nm |
| Warranty: | 12Months | ||
Product Description
10/100/1000M Fiber Media Converter Dual Fiber MMF 850nm 550m SC DC5V1A
Overview
The NF-C2200SX Series Gigabit Ethernet Media Converters with external power supply are designed to transmit and receive 10/100/1000Mbps data over optical fiber. The electrical interface will Auto-Negotiate to a 100 Mbps or 1000Mbps Ethernet rate without any adjustments. The optical interface operates at a 1000 Mbps Ethernet rate. Both are environmentally hardened to operate in extreme temperatures. LED indicators are provided for confirming equipment operating status.
Applications
1. Access Control Systems
2. Building and Environmental Control Systems
3. Tamper Switch
4. 10/100/1000 Mbps Ethernet Media Converter
5. High Speed Computer Links
Key Features
1. 10/100/1000Mbps Ethernet
2. 10/100/1000 BASE-T/TX electrical port
3. 1000 BASE-SX/LX optical port
4. Electrical port supports Auto-Negotiation for 100Mbps or 1000Mbps, full duplex or half duplex data.
5. Optical port supports 1000Mbps full duplex data
6. Automatic MDI/MDI-X crossover
7. Distances up to 2km for Multi mode;Up to 120km for Single mode
8. Voltage transient protection on all power and signal input.output lines provides Voltage transient protection on all power and signal input.output lines provides
9. No in-field optical adjustments required
10. LED Indicators
Technical Parameter
| Parameters | Specifications |
| Standards | IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3ab 1000Base-TX/FX |
| Optic Wavelength | NF-C2000SX: 850nm |
| Transmission Distance | Multimode: 2km |
| Port | Optical: 2 Fibers (SC/ST/FC Optional) |
| Led Indicators | Optical Link/Data Activity |
| MDI/MDI-X | Auto selection |
| Mac address table | 4K |
| Memory buffer | 256K |
Data | Data Interface: Ethernet |
| Power Supply | External : 5V DC 2A |
| Operating Temperature | 0 °C to +70 °C |
| Storage Temperature | -20 °C to +80 °C |
| Relative Humidity | 5% to 90% (non-condensing) |
| Dimensions | 95mm * 70 mm * 25mm |
| Net Weight | 0.165 kg |
| Emissions | FCC , Class A, RoHS, CE Mark |
Product Show
Connection Diagram
Packaging and shipping
Ordering List:
| 10/100Mbps Media Converter | |
| NF-C570C | 1*10/100Base-Tx to 1*100Base-FX, MM, DF, SC, 850/1310nm, 2km, DC5V power |
| NF-C570S20 | 1*10/100Base-Tx to 1*100Base-FX, SM, DF, SC, 1310nm, 20km, DC5V power |
| NF-C570S20A/B | 1*10/100Base-Tx to 1*100Base-FX, SM, Bidi, SC, 1310/1550nm, 20km, DC5V power |
| NF-C570-SFP | 1*10/100Base-Tx to 1*100Base-FX, SFP Slot, DC5V power |
| 10/100/1000Mbps Media Converter | |
| NF-C2200SX05 | 1*10/100/1000Base-Tx to 1*1000Base-FX, MM, DF, SC, 850nm, 550m, DC5V power |
| NF-C2200SX02 | 1*10/100/1000Base-Tx to 1*1000Base-FX, MM, DF, SC, 1310nm, 2km, DC5V power |
| NF-C2200LX20 | 1*10/100/1000Base-Tx to 1*1000Base-FX, SM, DF, SC, 1310nm, 20km, DC5V power |
| NF-C2200LX20A/B | 1*10/100/1000Base-Tx to 1*1000Base-FX, SM, Bidi,SC,1310/1550nm,20km,DC5V power |
| NF-C2200-SFP | 1*10/100/1000Base-Tx to 1*1000Base-FX,SFP Slot, DC5V power |
| Other Media Converter | |
| NF-C10G-SFP | 1*10/100/1000/10000Base-Tx to 1*1.25G/2.5G/5G/10GBase-FX,SFPSlot,DC5-12V power |
| NF-T101-SFP | 1*100/1000Base-Tx to 1*100/1000Base-FX, 2xSFP port, SM to MM converter, DC5V power |
Note: Fiber connector: SC/FC/ST/LC(SFP) available ; Distance:0-120km available; Desktop/Card type media converter available; DC5V/12V/48V power available; EU/US/UK/AU etc. Power plug available. | |
