MOQ: | 1 piece |
Standard Packaging: | 1 piece cable be packed into 1 box, |
Delivery Period: | 2~3 days |
Payment Method: | T/T, Western Union, L/C |
Supply Capacity: | 100,000 pcs per month |

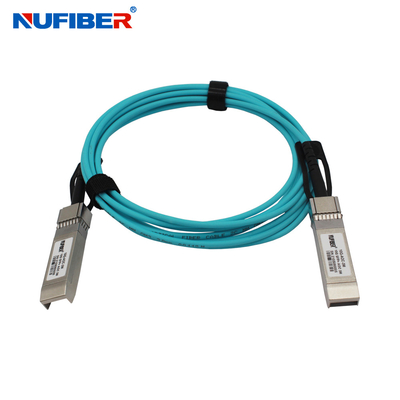

OEM Cisco Compatible with 10G SFP+ to 10G SFP+ Active Optical Cable OM3 1m/3m/5m/10m
Description
NUFIBER’s 10G-AOC-xM SFP+ Active Optical Cable (AOC) is a 10Gbps solution to10G Ethernet, and data center. The integrated cable transmits 10Gbps data in each direction over MMF with distance up to 100m. The AOC is SFP+ MSA compliance, low power consumption and lightweight.
Key Features
10Gb/s active optical cable up to 100m OM2 MMF;
850nm VCSEL and PIN receiver;
Single 3.3V power supply;
Operating Case Temperature: -5~75℃;
Hot pluggable;
Low Power Consumption;
Light weight;
Small Bend Radius;
Digital Diagnostic Monitor(DDM);
All-metal Housing for Superior EMI Performance.
Application
Datacom;
10G Ethernet;
Other high-throughput data transmission network.
Standard
Compliant with SFF-8431 and SFF-8432;
Compliant with SFF-8472 Rev 10.2;
Compliant with IEEE 802.3ae 10GBASE-LR and 10GBASE-LW;
RoHS Compliant.
Technical Parameter
Parameter | Symbol | Min | Max | Unit |
Storage Temperature | Ts | -40 | +85 | °C |
Operating Case Temperature | Tc | -40 | +85 | °C |
Operating Humidity | RH | 85 | % | |
Supply Voltage | Vcc | -0.5 | 3.6 | V |
Parameter | Symbol | Min | Max | Unit |
Operating Case Temperature | Tc | 0 | +70 | °C |
Supply Voltage | Vcc | 3.1 | 3.5 | V |
Bit Rate | BR | 1 | 11.3 | GBd |
Mechanical Drawing
Ordering Information
Part No. | Description |
10G-AOC-1M | 10G SFP+ to 10G SFP+ Active Optic Cable OM3 1m |
10G-AOC-3M | 10G SFP+ to 10G SFP+ Active Optic Cable OM3 3m |
10G-AOC-5M | 10G SFP+ to 10G SFP+ Active Optic Cable OM3 5m |
10G-AOC-7M | 10G SFP+ to 10G SFP+ Active Optic Cable OM3 7m |
10G-AOC-15M | 10G SFP+ to 10G SFP+ Active Optic Cable OM3 15m |
10G-AOC-xM | 10G SFP+ to 10G SFP+ Active Optic Cable OM3 Xm |
Product Show
Packaing & Shipping
Factory Show
