MOQ: | 1 pair |
Standard Packaging: | 10pairs/carton, carton size: 452*372*297mm |
Delivery Period: | within 1-3 work days after payment |
Supply Capacity: | 5000 pairs per week |
10/100M POE Ethernet over Coaxial Extender POE RJ45 to Coax Converter no need power adapter
Products Description
NUFIBER NF-9804 Ethernet over 2-wire Extender can extend the IP signal transmission distance of the IP camera and support the POE function,camera and other terminal POE equipment can be powered by the transmitter without separate power supply. The product adopts industrial design and is applicable to various video transmission systems,such as security monitoring system, elevator video network coverage, multimedia network teaching system, industrial automation control system, medical monitoring display system,advertising screen real-time broadcast system, etc.
Key Feature
1. Support the local end to supply power to remote devices, with a maximum output of 60W;
2. Support 2 megapixel high-definition video transmission(1080p);
3. Support multiple cable transmission;
4. Support multicast function.
Technical Parameter
Category | Item | Parameters |
Power Adapter | Input | DC44V~57V / 1A |
Output | POE30W /POE60W | |
Transmission | Transmission medium | Coaxial Cable, Twisted Pair Cable, Telephone Cable, RVV Cable |
Transmission Distance(2*0.75㎟ RVV Cable) | 500meters | |
maximum throughput(Bandwidth) | 45Mbps | |
multicast | Support IGMP multicast protocol | |
Connector | DC_IN | 2.1-5.5mm DC Connector |
DC_OUT | RJ45 (30W:1,2,3,6) (60W:1,2,3,6,4,5,7,8) |
|
Ethernet | RJ45 (1,2 & 3,6) | |
Twisted pair signal input and output | 5.08mm×2 | |
GND | Frame GND | |
LED | Master |
Device indicator: M side: ON S side:OFF (Pls check M & S before connect the power) |
Link | IP Signal indicator: TP signal is connected, ON; TP signal isn't connected,OFF. |
|
Power | Connect the power, ON. | |
RJ45 Green | Communication indicator: Blinking during communication |
|
RJ45 Yellow | POE indicator: POE is enabled, ON; overload or undervoltage , Blink. |
|
Case | Size | 94×71.4×26 mm |
Color | Black | |
Weight | 190g | |
Environmental Requirement | Working Environment | -20℃~70℃ |
Humidity | 0-95% | |
Storage temperature | -40℃~85℃ |

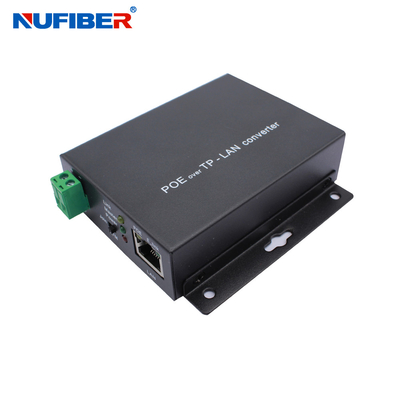

Products Show
Connection Diagram
Packing & Shipping
Factory Show
FAQ
Q: Are you a manufacturer or a trading company ?
A: We're professional manufacturer of Ethernet over Coaxial Extender, providing one-stop OEM & ODM service to all partners all over the world.
Q: Are your products conforming to our standards ?
A: Yes, our products can pass the testings as you require.
Q: How do you control the quality ?
A: We have perfect QC system (IQC, IPQC, FQC, OQC team), professional product engineers and continuous improvement system.
Q: What’s the product warranty?
A: We offer 12 months guarantee.
Welcome to send us your inquiry,your any question will be response 24/7.OEM:accept Customization:support.
