MOQ: | 1 piece |
Standard Packaging: | Carton Packaging, the products are packed in international standard. Each carton is lined with a polythene sheet, thus preventng the contents from dampness |
Delivery Period: | within 1-3 working days after payment |
Payment Method: | T/T, Western Union, Credit card |
Supply Capacity: | 10000 pair per month |
SFP to RJ45 Media Converter Gigabit SFP to UTP Optic Media Converter DC5V1A for CCTV
Overview
The NF-C2200-SFP Series Gigabit Ethernet Media Converters with external power supply are designed to transmit and receive 10/100/1000Mbps data over optical fiber. The electrical interface will Auto-Negotiate to a 100 Mbps or 1000Mbps Ethernet rate without any adjustments. The optical interface operates at a 1000 Mbps Ethernet rate. Both are environmentally hardened to operate in extreme temperatures. LED indicators are provided for confirming equipment operating status.
Key Features
1. 10/100/1000Mbps Ethernet
2. 10/100/1000 BASE-T/TX electrical port
3. 1000 BASE-SX/LX optical port
4. Electrical port supports Auto-Negotiation for 100Mbps or 1000Mbps, full duplex or half duplex data.
5. Optical port supports 1000Mbps full duplex data
6. Automatic MDI/MDI-X crossover
7. Distances up to 2km for Multi mode;Up to 120km for Single mode
8. Voltage transient protection on all power and signal input.output lines provides Voltage transient protection on all power and signal input.output lines provides
9. No in-field optical adjustments required
10. LED Indicators
Applications
1. Access Control Systems
2. Building and Environmental Control Systems
3. Tamper Switch
4. 10/100/1000 Mbps Ethernet Media Converter
5. High Speed Computer Links
Technical Parameter
Parameters | Specifications |
Standards | IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3ab 1000Base-TX/FX |
Optic Wavelength |
NF-C2000SX: 850nm NF-C2000LX20: 1310nm NF-C2000-SFP: N/A NF-C2000LX20A:TX:1310nm/RX:1550nm NF-C2000LX20B:TX:1550nm/RX:1310nm |
Transmission Distance |
Multimode: 2km Single mode:10km~120km |
Port |
Optical: 2 Fibers (SC/ST/FC Optional) Power: Terminal Block Electrical: RJ45 |
Led Indicators |
Optical Link/Data Activity Electrical Link/Data Activity |
MDI/MDI-X | Auto selection |
Mac address table | 4K |
Memory buffer | 256K |
Data
|
Data Interface: Ethernet Data Rate:10/100/1000 Mbps |
Power Supply |
External : 5V DC 2A Power Consumption : ≤5W |
Operating Temperature | 0 °C to +70 °C |
Storage Temperature | -20 °C to +80 °C |
Relative Humidity |
5% to 90% (non-condensing) MTBF: >100,000 hours |
Dimensions | 95mm * 70 mm * 25mm |
Net Weight | 0.165 kg |
Emissions | FCC , Class A, RoHS, CE Mark |

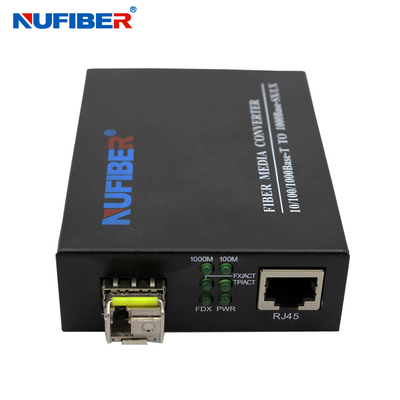

Product Show
Connection Diagram
Packaging and shipping
