Product Details:

Place of Origin: China
Brand Name: NUFIBER
Certification: CE,FCC,Rohs
Model Number: NF-1801

Payment & Shipping Terms:

Minimum Order Quantity: 1 pair
Packaging Details: 10pairs/carton, carton size: 452*372*297mm
Delivery Time: within 1-3 work days after payment
Payment Terms: T/T, Western Union,Cash, Credit Card,
Supply Ability: 5000 pairs per week
Get Best Price Contact Now

Detail Information

Product Name: Ethernet Over Coax Extender Material: Iron
Interface: 1 BNC Port+ 1 RJ45 Port Transmission Distance: 1.5km~2km
Signal: IP Signal Over Coaxial Cable Bandwidth: 84M
Power Adapter: DC: 12V1A Transmission Rate: 10/100Mbps
OEM&ODM: Accepted Application: IPTV ,IP Network, IPC To NVR
High Light:

ROHS Certified Ethernet Over Coaxial Extender

,

IPTV Ethernet Over Coax Extender

,

2km Cable Ethernet Over Coaxial Extender

Product Description

10/100M Ethernet over Coax Extender 2KM IP Ethernet over BNC Converter EOC via 75ohm coaxial cable







Products Description

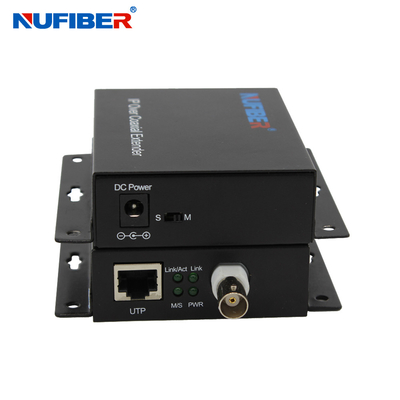

NuFiber® NF-1801 is the high-performance Ethernet-over-Coaxial extender that converts between twisted pair (UTP) and coaxial cable for every kind of IP Ethernet application. It offers the absolutely fastest data transmission speed over existing coaxial cable without the need of rewiring. On the UTP side, the NF-1801 uses a modular EIA / TIA 568 RJ-45 connector that supports CAT-5/5e or above wiring with the distance up to 100 meters (328 feet). On the coaxial cable side, the NF-1801 utilizes a BNC connector that supports 50ohm or 75ohm coaxial cable with the distance up to 2km. It is ideal for extending the distance and signal conversion by transmitting the Ethernet data from the coaxial cable for any type of IP network device such as IP camera, wireless access point, NVR and digital signal.



Key Features



(1) High Transmission Speed

Physical Port transmission rate up to 200Mbps.

Valid data flowing rate up to 80Mbps

Transmission distance up to 2KM

Supply 10/100Mbps 1-port Ethernet interface and 1-port BNC interface

(2) High compatibility

Support QAM 16/64/256/1024, DQPSK,DBPSK and ROBO modulation technology.

Support conformability transmission QoS, Multi cast and IGMP.

(3) High security

Adopt 128bits AES data encryption and Key management.

Adopt Peer-to-peer network framework

Plug and Play (without any setting)



Technical Parameter

Interface 10/100Base-TX UTP port (Auto-adaptation ) ×1
BNC×1
Transmission medium coaxial cable
Modulation technique OFDM
LED Indicators

Power: Light on: Normal operation

Coax: Light on: Video signal is normal

UTP, Act/Link: Light on: connection is correct

Light Blink: normal communication

M(master)/S(slave) : Light on: Under Slave

Light off: Under Master

Transmission band 2MHz–28MHz
Protocol standard IEEE 802.3, IEEE 802.3u
Dimensions (W x D x H) 95*70*25mm
Power supply DC 12V 1A
Security technology 128-DES Data encryption and Key management
Physical layer transmission rate 200Mbps
Transmission distance 2KM
Support operating system Windows 98/ME/NT/2003/7, Windows XP Home/Pro, Mac OSX , Linux
Operating voltage range AC 100V-240V 60/50Hz
Operating environment Operating temperature; 0°C ~ +50°C
Storage temperature: -20°C ~ +70°C
Operating humidity: 5%-90%



Products Show

CCTV IPTV Ethernet Over Coaxial Extender With RG59 RG6 CATV Cable 0CCTV IPTV Ethernet Over Coaxial Extender With RG59 RG6 CATV Cable 1



CCTV IPTV Ethernet Over Coaxial Extender With RG59 RG6 CATV Cable 2

CCTV IPTV Ethernet Over Coaxial Extender With RG59 RG6 CATV Cable 3

CCTV IPTV Ethernet Over Coaxial Extender With RG59 RG6 CATV Cable 4

CCTV IPTV Ethernet Over Coaxial Extender With RG59 RG6 CATV Cable 5

Connection Diagram

CCTV IPTV Ethernet Over Coaxial Extender With RG59 RG6 CATV Cable 6

Packing & Shipping

CCTV IPTV Ethernet Over Coaxial Extender With RG59 RG6 CATV Cable 7

CCTV IPTV Ethernet Over Coaxial Extender With RG59 RG6 CATV Cable 8

Factory Show

CCTV IPTV Ethernet Over Coaxial Extender With RG59 RG6 CATV Cable 9



FAQ

CCTV IPTV Ethernet Over Coaxial Extender With RG59 RG6 CATV Cable 10
