Product Details:

Place of Origin: China
Brand Name: NUFIBER
Certification: CE FCC
Model Number: SFP-10G-BX80-SM1490/1550

Payment & Shipping Terms:

Minimum Order Quantity: 1 pair
Price: USD99~135 per pair
Packaging Details: 10pcs/plastic bag, 200pcs/carton
Delivery Time: 1-3 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10,000 pcs per month
Get Best Price Contact Now

Detail Information

Product Name: 10Gb/s SFP+ Module Wavelength: 1490nm/1550nm
Distance: 80KM Connector: LC Interface
DDM: Support Fiber Type: Single Mode Single Fiber
Power Supply: 3.3V Working Temperature: 0~70℃
Warranty: 1years Compatible: Any Brand
High Light:

LC 10G SFP+ ZR

,

WDM 10G SFP+ ZR

,

1490nm 10G SFP+ Transceiver

Product Description

10G SFP+ 80km Module SFP+ Transceiver 1490nm/1550nm 10G ZR WDM 80km LC compatible with Cisco

Description:

NuFiber SFP-10G-BX80-SM1490 & SFP-10G-BX80-SM1550 Bi-directional 10Gb/s (SFP+) transceivers are compliant with the current SFP+ Multi-Source Agreement (MSA) Specification. They comply with 10GBASE-zR/LW Ethernet, SONET OC-192 / SDH and 10G Fiber Channel 1200-SM-LL-L. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the SFP+ MSA.



Features:

  • ² Supports 9.95Gb/s to 11.3Gb/s bit rates

    ² Hot-pluggable SFP+ footprint

    ² Single LC for Bi-directional Transmission

    ² Maximum link length of 80km

    ² Built-in 1490/1550 WDM Filter

    ² Uncooled 1490nm or 1550nm CWDM DFB Laser.

    ² Power dissipation <1.5W

    ² No Reference Clock required

    ² Built-in digital diagnostic functions

    ² Temperature range 0°C to 70°C

    ² Very low EMI and excellent ESD protection

    ² RoHS Compliant Part



    Applications:

    ² 10GBASE-ZR/LW Ethernet

    ² SONET OC-192 / SDH

    ² 10G Fiber Channel

Optical Parameters:

Parameter Symbol Min. Typ Max. Unit Note
Transmitter
Operating Wavelength λ 1470 1490 1510 nm
1530 1550 1565
Ave. output power (Enabled) PAVE 0   5 dBm 1
Side-Mode Suppression Ratio SMSR 30     dB
Extinction Ratio ER 9     dB
RMS spectral width Δλ     1 nm
Rise/Fall time (20%~80%) Tr/Tf     50 ps
Dispersion penalty TDP     3.2 dB
Relative Intensity Noise RIN     -128 dB/Hz
Output Optical Eye Compliant with IEEE 0802.3ae
Receiver
Operating Wavelength λ 1530 1550 1565 nm
1470 1490 1510
Receiver Sensitivity

PSEN1

    -22 dBm 2
Sensitivity over 80Km fiber PSEN2     -20 dBm 2
Overload PAVE     -7 dBm
LOS Assert Pa -35     dBm
LOS De-assert Pd     -24 dBm
LOS Hysteresis Pd-Pa 0.5     dB






Ordering information:







BiDi SFP Transmitter
Part Number Product Description
155Mbp/s SFP Transmitter
FE-BX20-SM1310/1550 155Mbps,BiDi 1310nm/1550nm SM 20km LC, DDM 0°C~+70°C
FE-BX40-SM1310/1550 155Mbps, BiDi 1310nm/1550nm SM 40km LC, DDM 0°C~+70°C
FE-BX80-SM1310/1550 155Mbps, BiDi 1310nm/1550nm SM 80km LC, DDM 0°C~+70°C
FE-BX100-SM1310/1550 155Mbps, BiDi 1310nm/1550nm SM 120km LC, DDM 0°C~+70°C
1.25Gbps SFP Transmitter
GE-BX10-SM1310/1550 1.25Gbps, BiDi 1310nm/1550nm SM 10km LC,DDM 0°C~+70°C
GE-BX20-SM1310/1550 1.25Gbps, BiDi 1310nm/1550nm SM 20km LC, DDM 0°C~+70°C
GE-BX40-SM1310/1550 1.25Gbps, BiDi 1310nm/1550nm SM 40km LC, DDM 0°C~+70°C
GE-BX60-SM1310/1550 1.25Gbps, BiDi 1310nm/1550nm SM 60km LC, DDM 0°C~+70°C
GE-BX80-SM1310/1550 1.25Gbps, BiDi 1310nm/1550nm SM 80km LC, DDM 0°C~+70°C
GE-BX100-SM1310/1550 1.25Gbps, BiDi 1310nm/1550nm SM 120km LC, DDM 0°C~+70°C
10Gbps SFP+ Transmitter
SFP-10G-BX20-SM1330/1270 10Gbps, BiDi 1330nm/1270nm SM 20km LC,DDM 0°C~+70°C
SFP-10G-BX40-SM1330/1270 10Gbps, BiDi 1330nm/1270nm SM 40km LC,DDM 0°C~+70°C
SFP-10G-BX60-SM1330/1270 10Gbps, BiDi 1330nm/1270nm SM 60km LC,DDM 0°C~+70°C
SFP-10G-BX80-SM1490/1550 10Gbps, BiDi 1490nm/1550nm SM 80km LC,DDM 0°C~+70°C

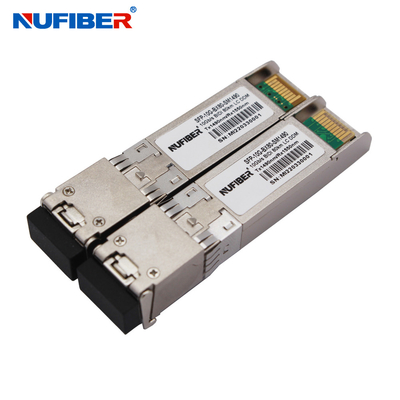

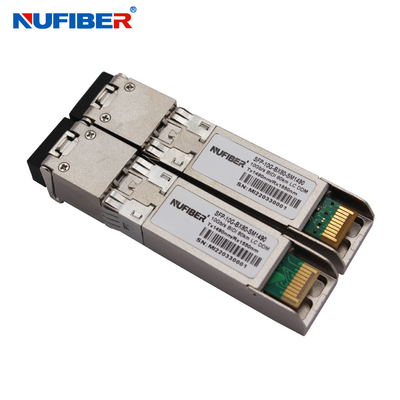

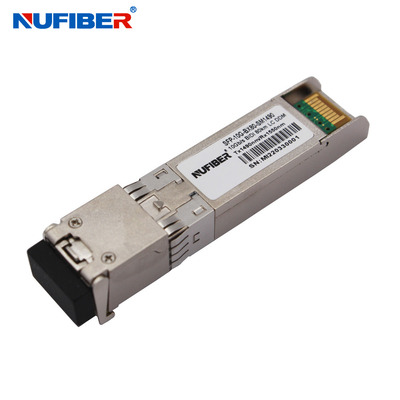

Products Show:

LC 80km Module 10G SFP+ ZR Transceiver 1490nm / 1550nm WDM 0LC 80km Module 10G SFP+ ZR Transceiver 1490nm / 1550nm WDM 1LC 80km Module 10G SFP+ ZR Transceiver 1490nm / 1550nm WDM 2LC 80km Module 10G SFP+ ZR Transceiver 1490nm / 1550nm WDM 3LC 80km Module 10G SFP+ ZR Transceiver 1490nm / 1550nm WDM 4LC 80km Module 10G SFP+ ZR Transceiver 1490nm / 1550nm WDM 5

LC 80km Module 10G SFP+ ZR Transceiver 1490nm / 1550nm WDM 6

Packing:

LC 80km Module 10G SFP+ ZR Transceiver 1490nm / 1550nm WDM 7

Shipping:



LC 80km Module 10G SFP+ ZR Transceiver 1490nm / 1550nm WDM 8



Welcome to send us inquiry for this products.
