| MOQ: | 1 pair |
| Standard Packaging: | Carton packaging, the products are packed in international standard. Each carton is lined with apolythene sheet, thus preventing the contents from dampness. |
| Delivery Period: | 1-3 working days after payment |
| Payment Method: | T/T, Western Union, Credit card |
| Supply Capacity: | 10000 pairs per month |
10/100M Fiber Media Converter Single Fiber Single Mode 1310/1550nm 20km Fast SM Media Converter
Key Features
1. Plug and play, high performance, Low power consumption
2. Complies with IEEE802.3 (10BASE-T) and IEEE802.3u (100BASE-TX/FX) standards
3. Auto-negotiation support on RJ45 port
4. Auto-Negotiation of duplex(HDX/FDX) on RJ45 port
5. Electrical port supports Auto-Negotiation for 10Mbps or 100Mbps, full duplex or half duplex data.
6. Auto MDI/MDI-X support on RJ45 port
7. Distances up to: 2 km Multimode, 120 km Single Mode
8. ST, SC, FC optical connectors
9. Status LED's for TX,FX LINK/ACT, POWER,100M to easily monitor network status
10. External power adapter
Applications
► Access Control Systems
► Building and Environmental Control Systems
► Tamper Switch
► 10/100 Mbps Ethernet Media Converter
► High Speed Computer Links
Overview
The NuFiber® single fiber single mode media converters are designed to transmit and receive 10/100Mbps data over one optical fiber. The electrical interface will Auto-Negotiate to a 10Mbps, or 100Mbps Ethernet rate without any adjustments. The optical interface operates at a 100Mbps Ethernet rate. LED indicators are provided for rapidly ascertaining equipment operating status.
Technical Specifications
| Parameters | Specifications |
| Standards | IEEE802.3u (100Base-TX/FX), IEEE 802.3 (10Base-T) |
| Wavelength | 1310 nm / 1550 nm |
| Transmission Distance | 20 km to 120km |
| Port |
One RJ45 port |
| MDI/MDI-X | Auto selection |
| MAC Address Table | I K |
| Buffer Size | 1Mbit |
| Flow Control | Duplex:flow control ; Half duplex:back pressure |
| Time Delay | Store-and-forward:9.6us,Straight-through:0.9us |
| BER | <1/1000000000 |
| Power Supply | Outside: 5 V DC 1 A Built-in: 100 V to 265V AC 50 Hz to 60 Hz |
| Operating Temp. | 0 °C to +70 °C |
| Storage Temp. | -20 °C to +80 °C |
| Relative Humidity | 5% to 90% (non-condensing) |
| Dimensions | 95 mm × 70 mm × 25 mm |
| Net Weight | 0.165 kg |

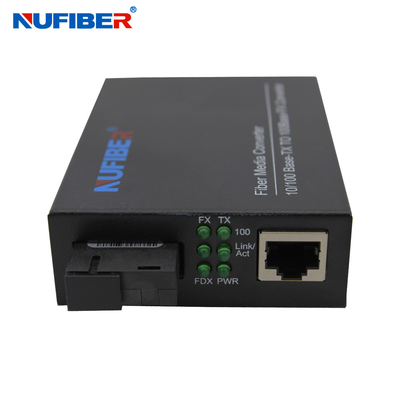

Product show
Connection Diagram
Shipping and Packing
|
|
